Home >> Saturn >> 2005 >> L Series V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> Headlamp >> System Diagram

System Diagram

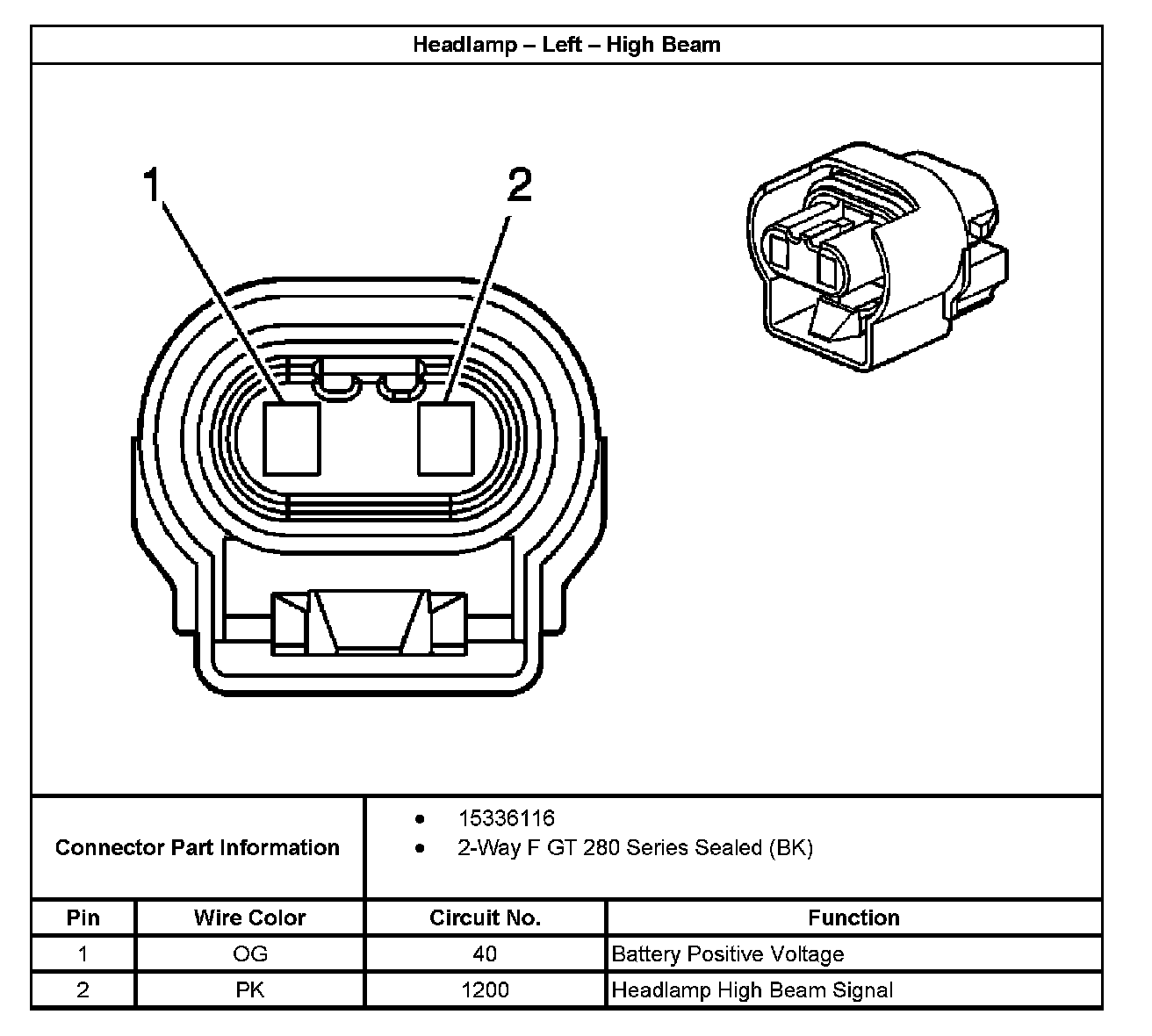

Headlamp - Left - High Beam:



Headlamp - Right - High Beam:



Headlamp - Left - Low Beam:

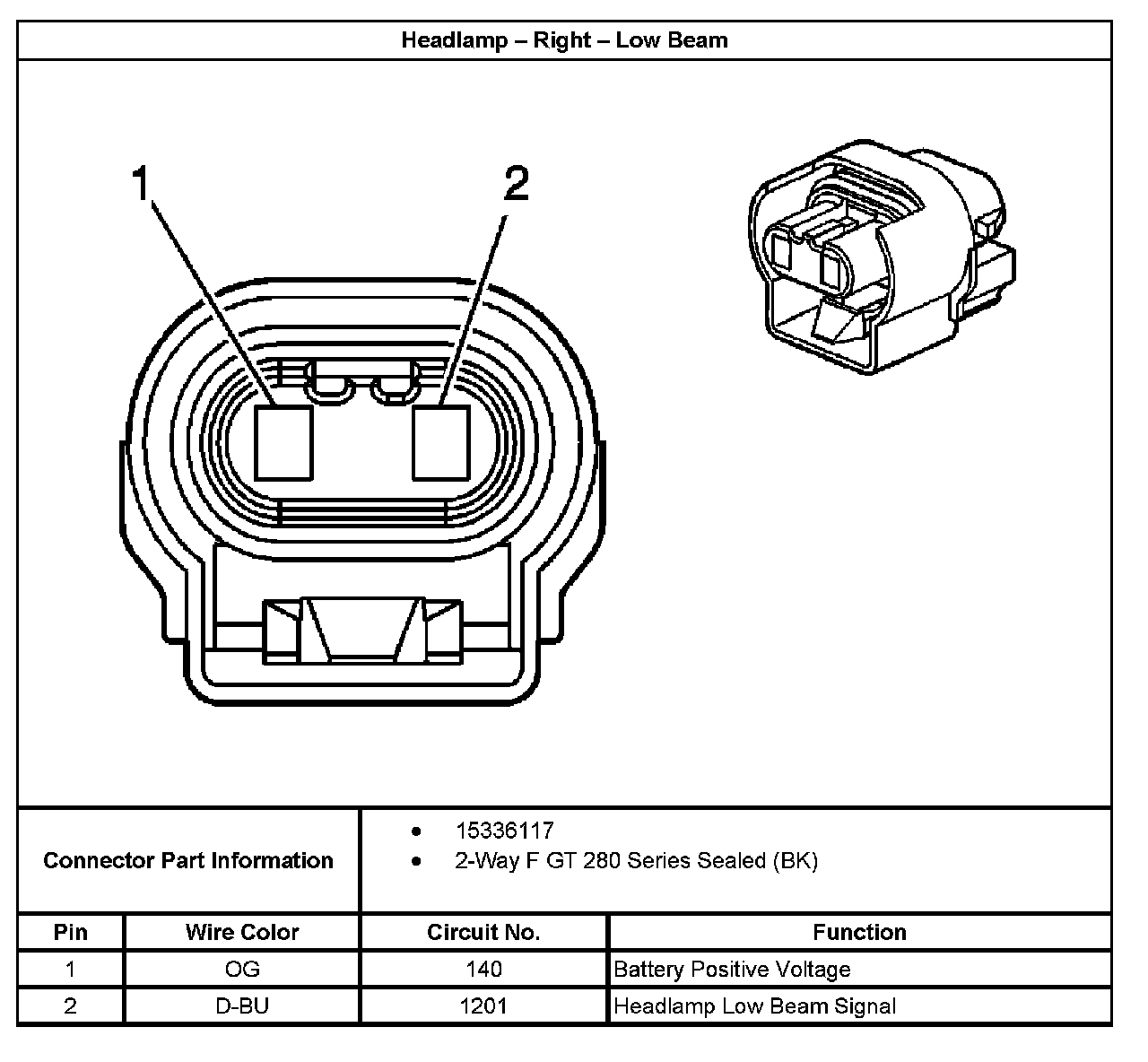

Headlamp - Right - Low Beam:
