Clockspring Assembly / Spiral Cable, Air Bag

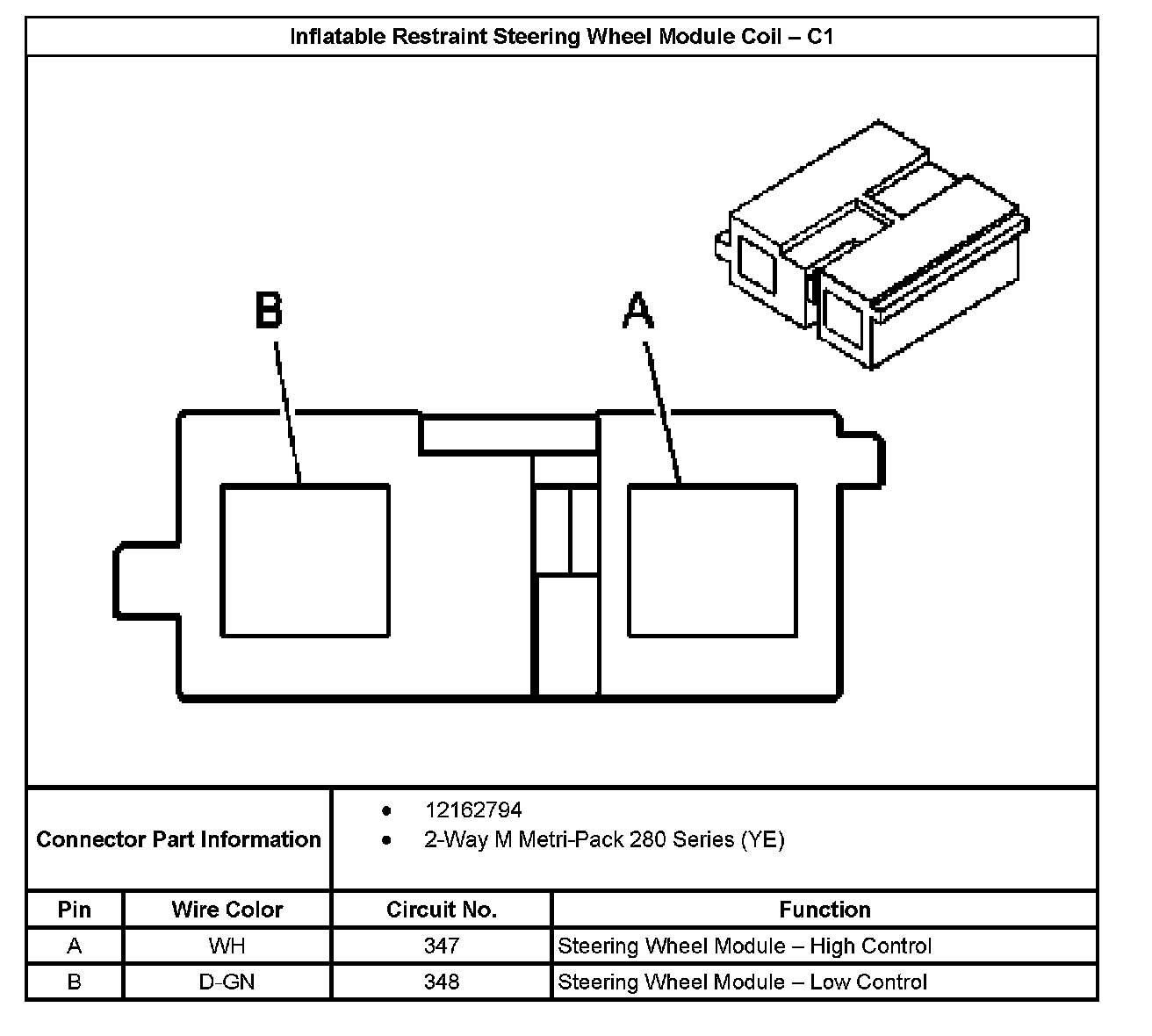

Inflatable Restraint Steering Wheel Module Coil - C1:

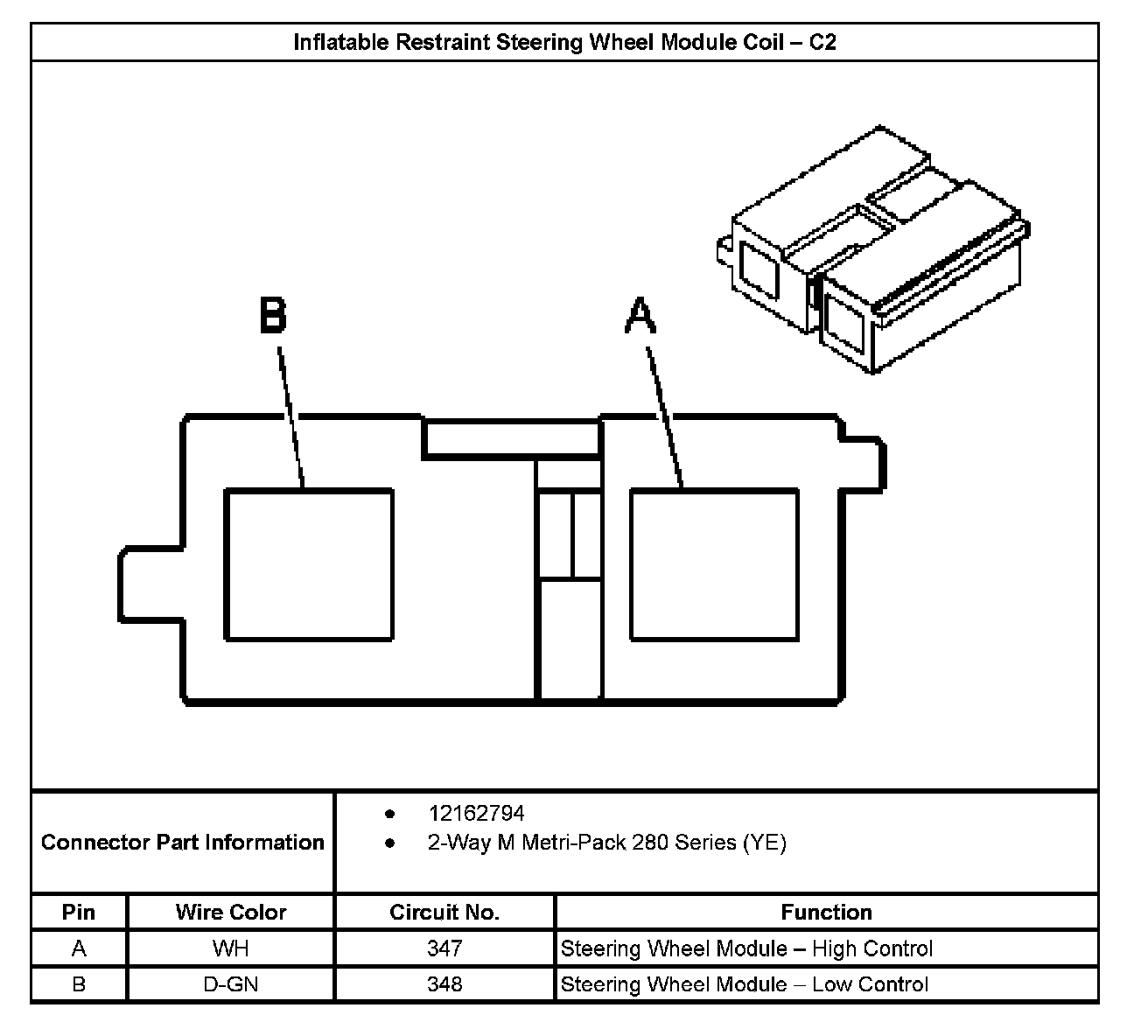

Inflatable Restraint Steering Wheel Module Coil - C2:

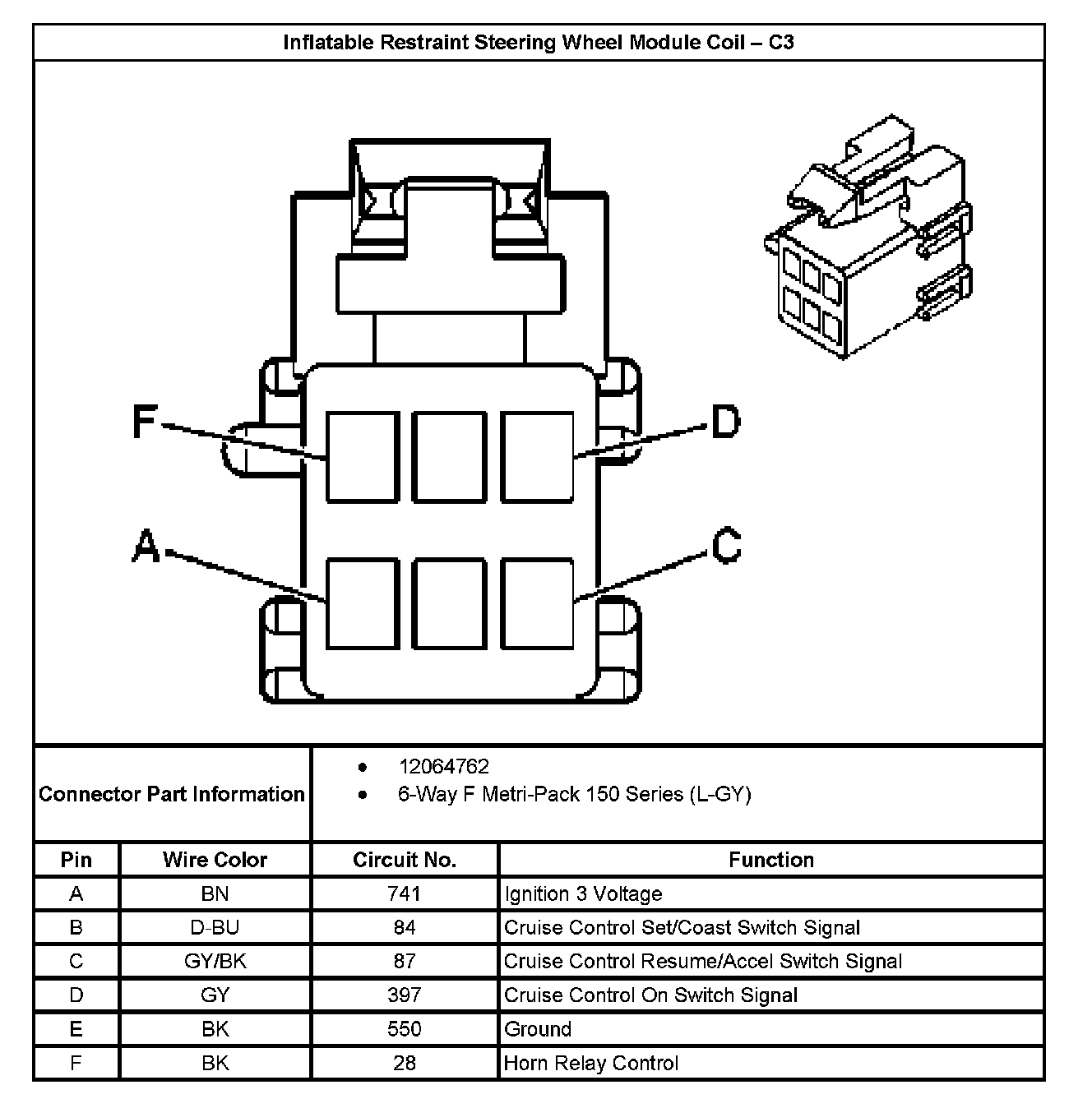

Inflatable Restraint Steering Wheel Module Coil - C3:



Inflatable Restraint Steering Wheel Module Coil - C4:
