Seat Back Latch Replacement - Rear Folding

SEAT BACK LATCH REPLACEMENT - REAR FOLDING

REMOVAL PROCEDURE




1. Remove the rear seat back.




2. Remove the seat back cover/pad.
3. Remove the pivot bracket from the seat back.

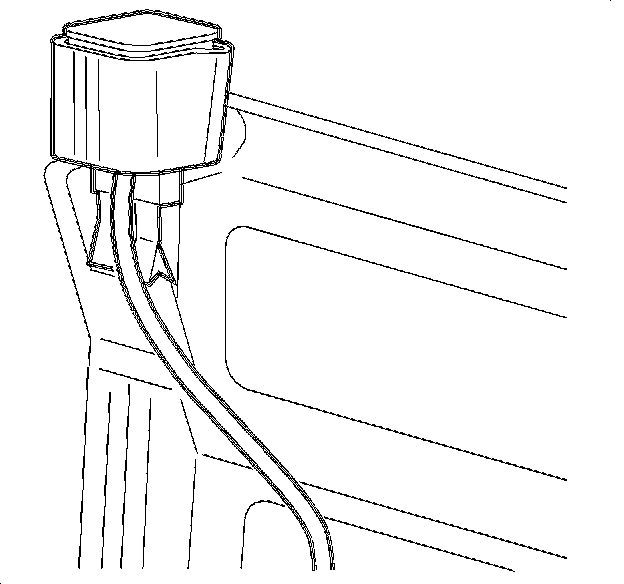

4. Remove the lock mechanism from the seat back panel.

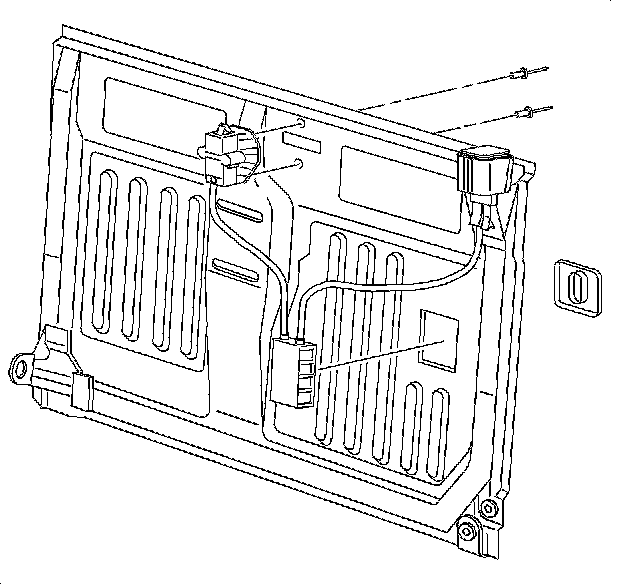

5. Drill out the seat back latch rivets and remove the latch assembly.

INSTALLATION PROCEDURE




1. Install the rear seat back latch assembly with the rivets.




2. Snap the lock mechanism into the seat back panel.




3. Install the seat back cover.
4. Install the seat back pivot bracket.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the bracket to 20 N.m (15 lb ft).




5. Install the seat back.
