Seat Back Cover and Pad Replacement - Rear

SEAT BACK COVER AND PAD REPLACEMENT - REAR

REMOVAL PROCEDURE

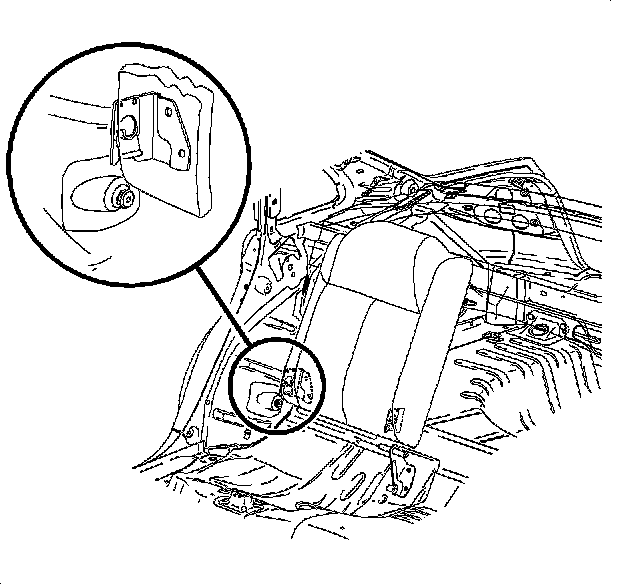

1. Remove the rear seat back.

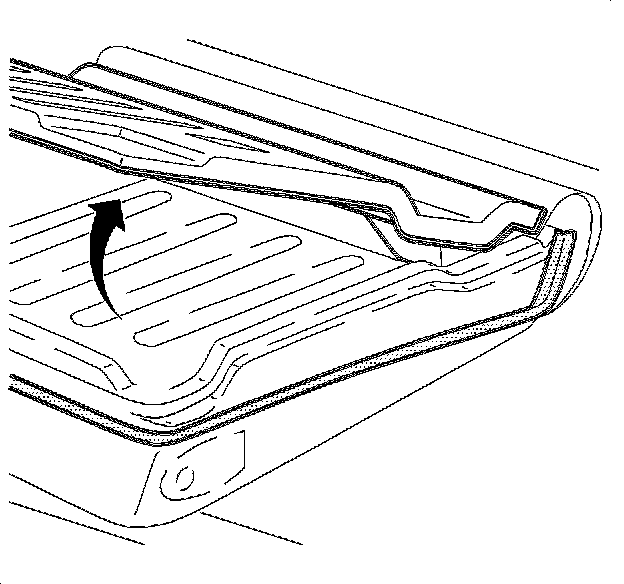

2. Remove the fasteners from the seat back cover. Remove the cover.

INSTALLATION PROCEDURE




1. Install the rear seat back cover. Secure the cover with push-in fasteners.




2. Install the rear seat back.
