Sunroof Module Assembly Replacement

Removal Procedure




1. Remove the headliner. Refer to Headliner Replacement (Wagon) (Headliner Replacement (Wagon))Headliner Replacement (Sedan) (Headliner Replacement (Sedan)) in Interior Trim.

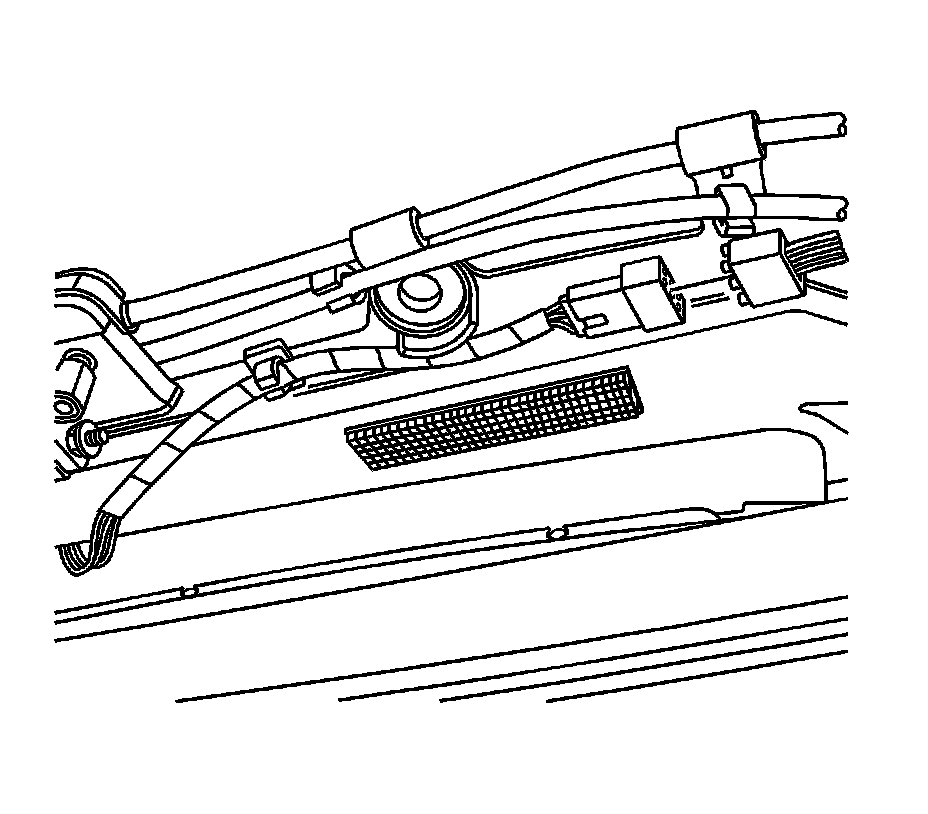

2. Disconnect the electrical connector on the sunroof actuator.
3. Disconnect the electrical connector from the sunroof module.

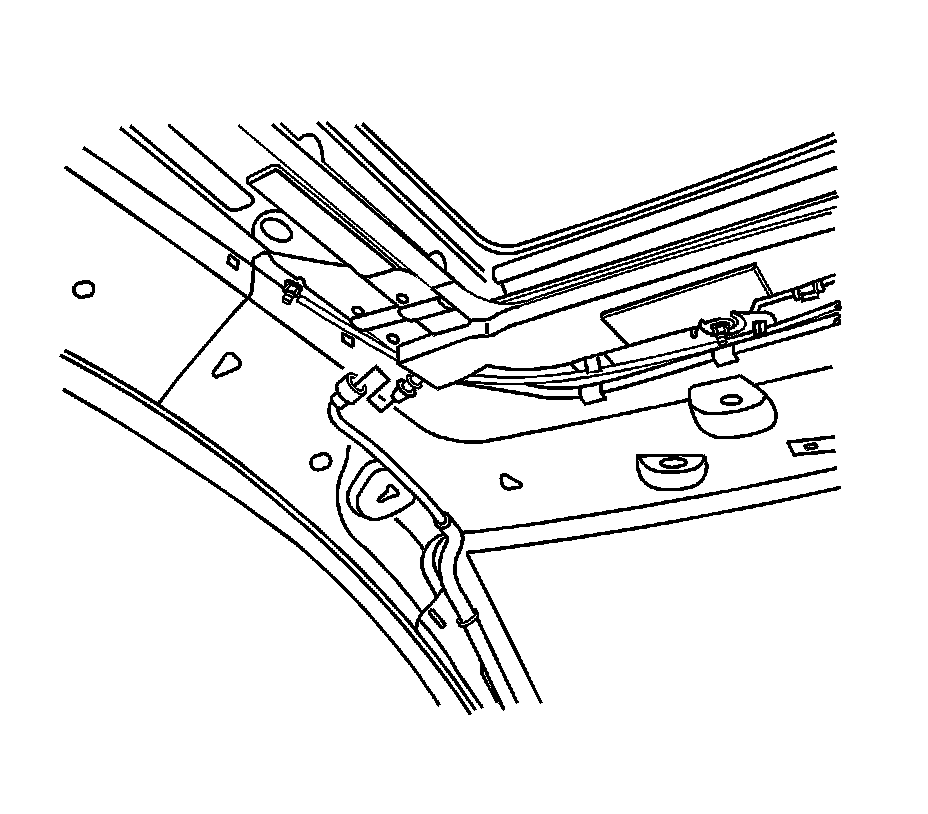

4. Disconnect the drain hoses from the drain spouts on the front sunroof.

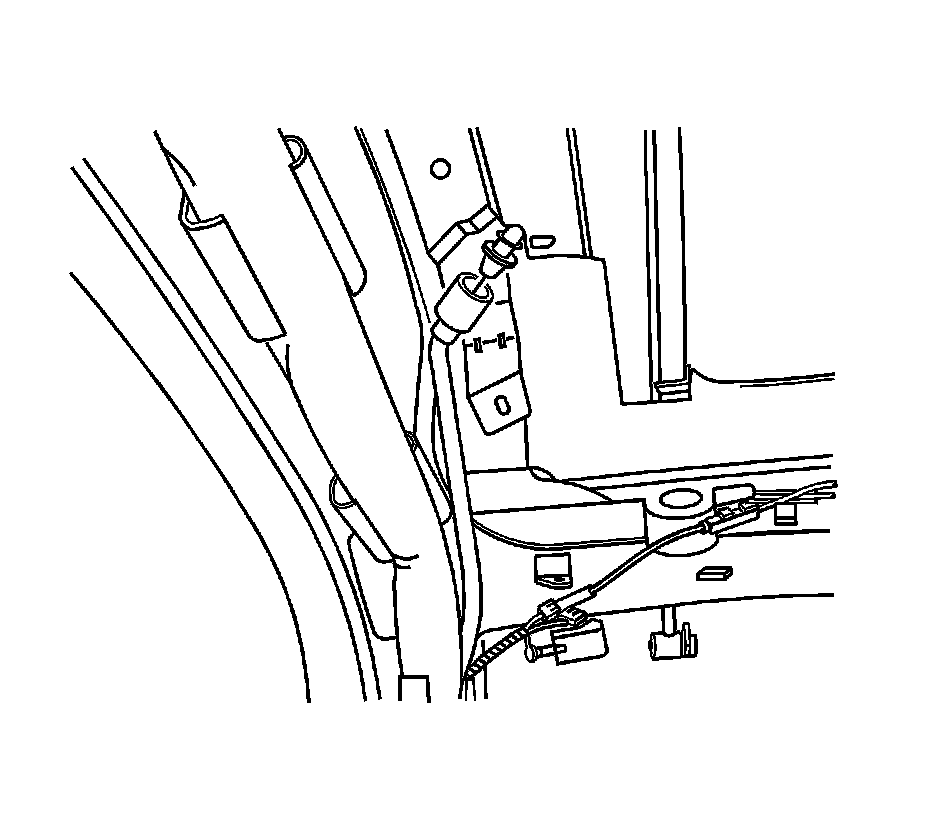

5. Disconnect the drain hoses from the drain spouts on the rear sunroof module.





Important: Remove the 2 center bolts last in order to help support the sunroof module to the roof ring.

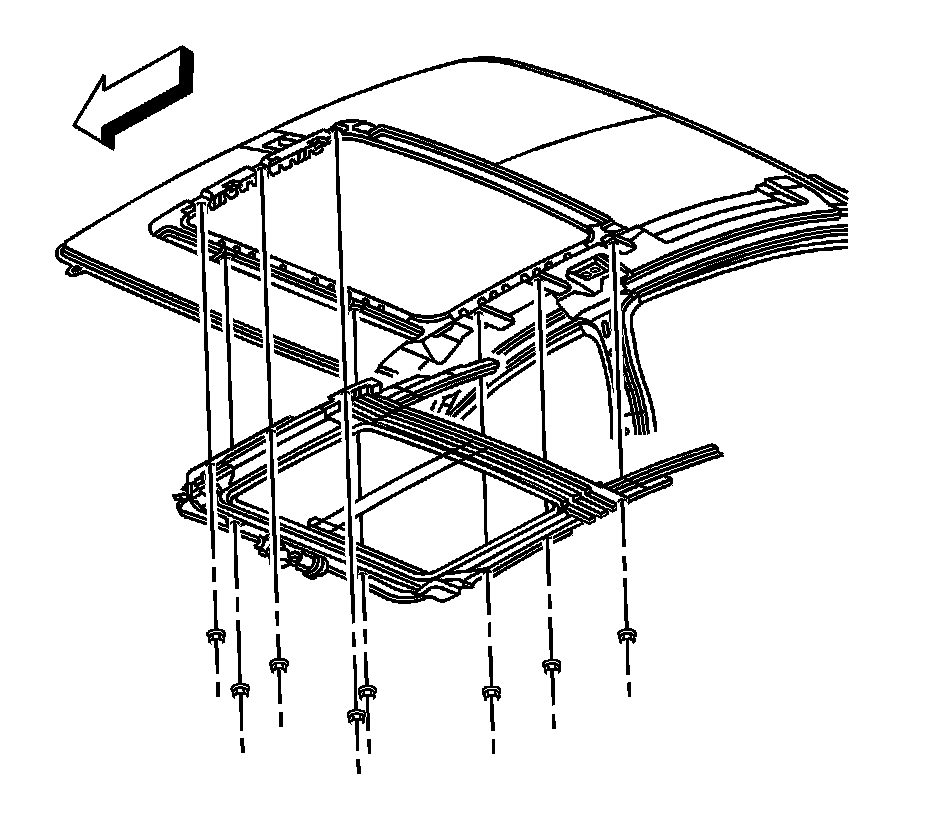

6. Remove the bolts that secure the sunroof module to the roof.
7. Remove the 2 bolts that secure the sunroof to the roof ring.
8. With an assistant, lower and remove the sunroof module out through the passenger side door.

Installation Procedure




1. With an assistant, position the sunroof module into the studs located on the roof ring.
2. Install the 2 center bolts which secure the sunroof module to the roof and tighten the bolts by hand.

Notice: Refer to Fastener Notice in Cautions and Notices.

3. Install the remaining sunroof module bolts.

Tighten all of the bolts to 10 Nm (89 lb in).




4. Connect the front and rear drain hoses to the drain spouts on the sunroof module.




5. Connect the electrical connectors to the sunroof motor/actuator.
6. Secure the harness to the sunroof module.
7. Adjust the sunroof window.
8. Cycle the sunroof to verify proper operation before securing the headliner.
9. Install the headliner. Refer to Headliner Replacement (Wagon) (Headliner Replacement (Wagon))Headliner Replacement (Sedan) (Headliner Replacement (Sedan)) in Interior Trim.
