Mat/Carpet Replacement - Rear Wheelhouse

Mat/Carpet Replacement - Rear Wheelhouse

Removal Procedure




1. Remove the rear compartment floor carpet. Refer to Carpet Replacement - Rear Compartment Floor (Sedan) (Carpet Replacement - Rear Compartment Floor (Sedan))Carpet Replacement - Rear Compartment Floor (Side Wagon) (Carpet Replacement - Rear Compartment Floor (Side Wagon)).

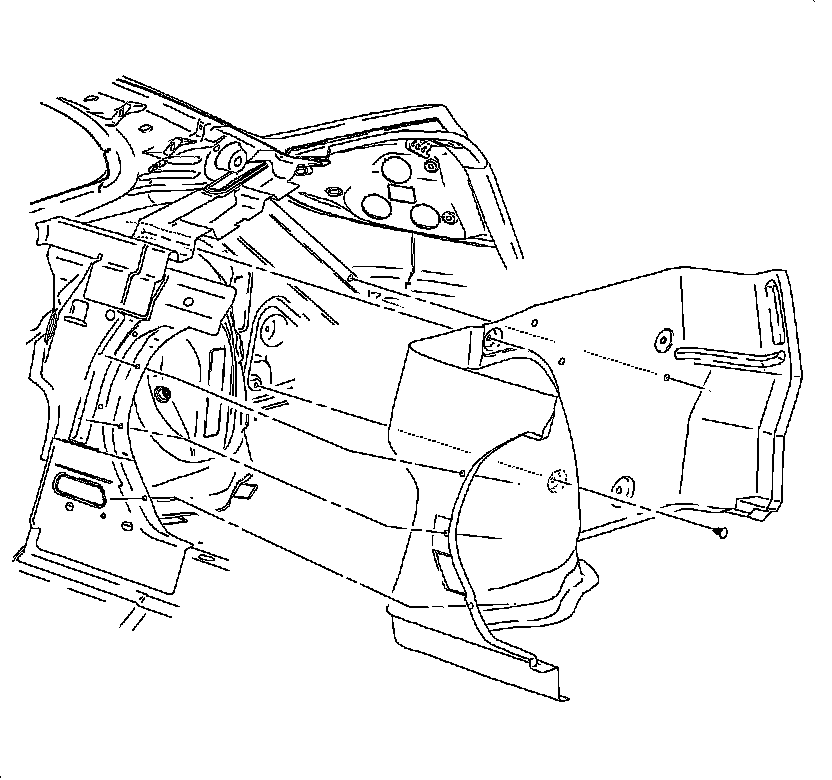

2. Remove the rear compartment side carpet fasteners.
3. Remove the side carpet assembly.

Installation Procedure




1. Position the side carpet to the vehicle.
2. Install the side carpet fasteners.
3. Position the decklid weatherstrip over the rear compartment side carpet.
4. Install the rear compartment floor carpet. Refer to Carpet Replacement - Rear Compartment Floor (Sedan) (Carpet Replacement - Rear Compartment Floor (Sedan))Carpet Replacement - Rear Compartment Floor (Side Wagon) (Carpet Replacement - Rear Compartment Floor (Side Wagon)).
