P0724

DTC P0724





Circuit Description
The stop lamp switch indicates brake pedal status to the transmission control module (TCM). The normally-open stop lamp switch supplies ignition voltage to the TCM. Applying the brake pedal closes the switch, supplying voltage to the TCM. Releasing the brake pedal interrupts voltage to the TCM. When the TCM senses ignition voltage at the stop lamp switch input, the TCM de-energizes the torque converter clutch (TCC) solenoid valve.
When the TCM detects a closed stop lamp switch, stuck ON, during accelerations, DTC P0724 sets. DTC P0724 is a type C DTC.

DTC Descriptor
This diagnostic procedure supports the following DTC:
DTC P0724 Brake Switch Circuit High Voltage

Conditions for Running the DTC
No VSS DTCs P0502 or P0503.

Conditions for Setting the DTC
DTC P0724 sets if the TCM detects a closed stop lamp switch or circuit, 12 volts, and the following conditions occur eight times:
1. The vehicle speed is less than 8 km/h (5 mph);
2. The vehicle speed is 8-32 km/h (5-20 mph) for 3-6 seconds;
3. The vehicle speed is greater than 32 km/h (20 mph) for 4 seconds.

Action Taken When the DTC Sets
^ The TCM does not request the engine control module (ECM) to illuminate the malfunction indicator lamp (MIL).
^ The TCM requests the ECM to illuminate the service vehicle soon (SVS) lamp.
^ The TCM freezes transmission adaptive functions.
^ The TCM disregards the stop lamp switch input for TCC scheduling. The TCM then uses throttle position and vehicle speed inputs to determine TCC application and release. Use of these inputs may result in a noticeable harsh apply or abrupt release of the TCC.
^ The TCM records the operating conditions when the Conditions for Setting the DTC are met. The TCM stores this information as Failure Records.
^ The TCM stores DTC P0724 in TCM history.

Conditions for Clearing the SVS Lamp/DTC
^ The TCM clears the SVS lamp request when the condition no longer exists.
^ A scan tool can clear the SVS Lamp/DTC.
^ The TCM clears the DTC from TCM history if the vehicle completes 40 warm-up cycles without a non-emission-related diagnostic fault occurring.
^ The TCM cancels the DTC default actions when the fault no longer exists and the DTC passes.

Test Description

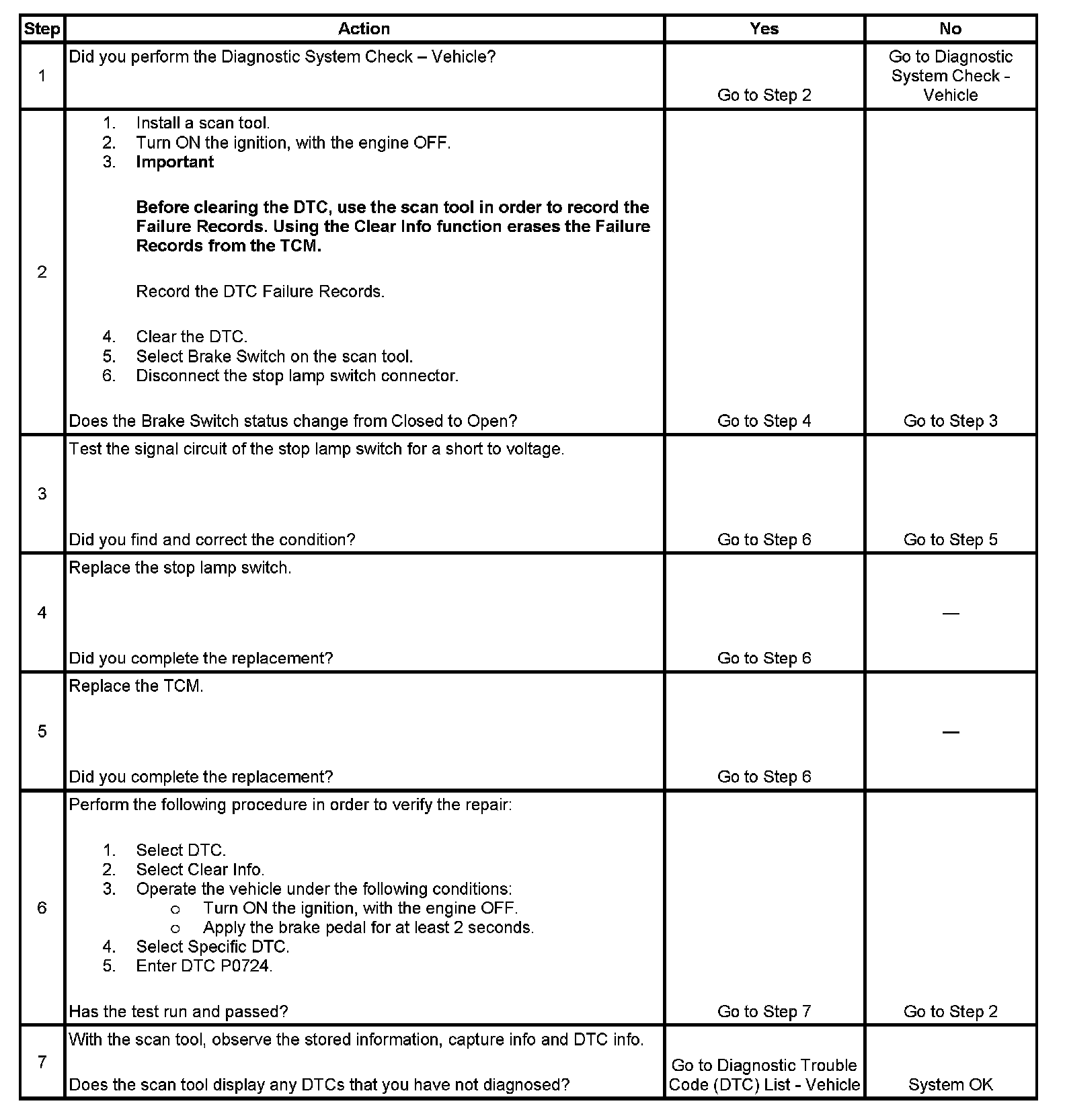

The numbers below refer to the step numbers on the diagnostic table.
2. Disconnecting the stop lamp switch connector, and observing a status change, isolates the stop lamp switch as the source of the DTC.
3. This step inspects the signal circuit for a short to voltage, if the stop lamp switch status on the scan tool did not change in Step 2.
4. If the stop lamp switch is properly adjusted, then the stop lamp switch must be replaced.
5. Replace the TCM only after you have completed the preceding diagnostic steps.
