C0110

DTC C0110

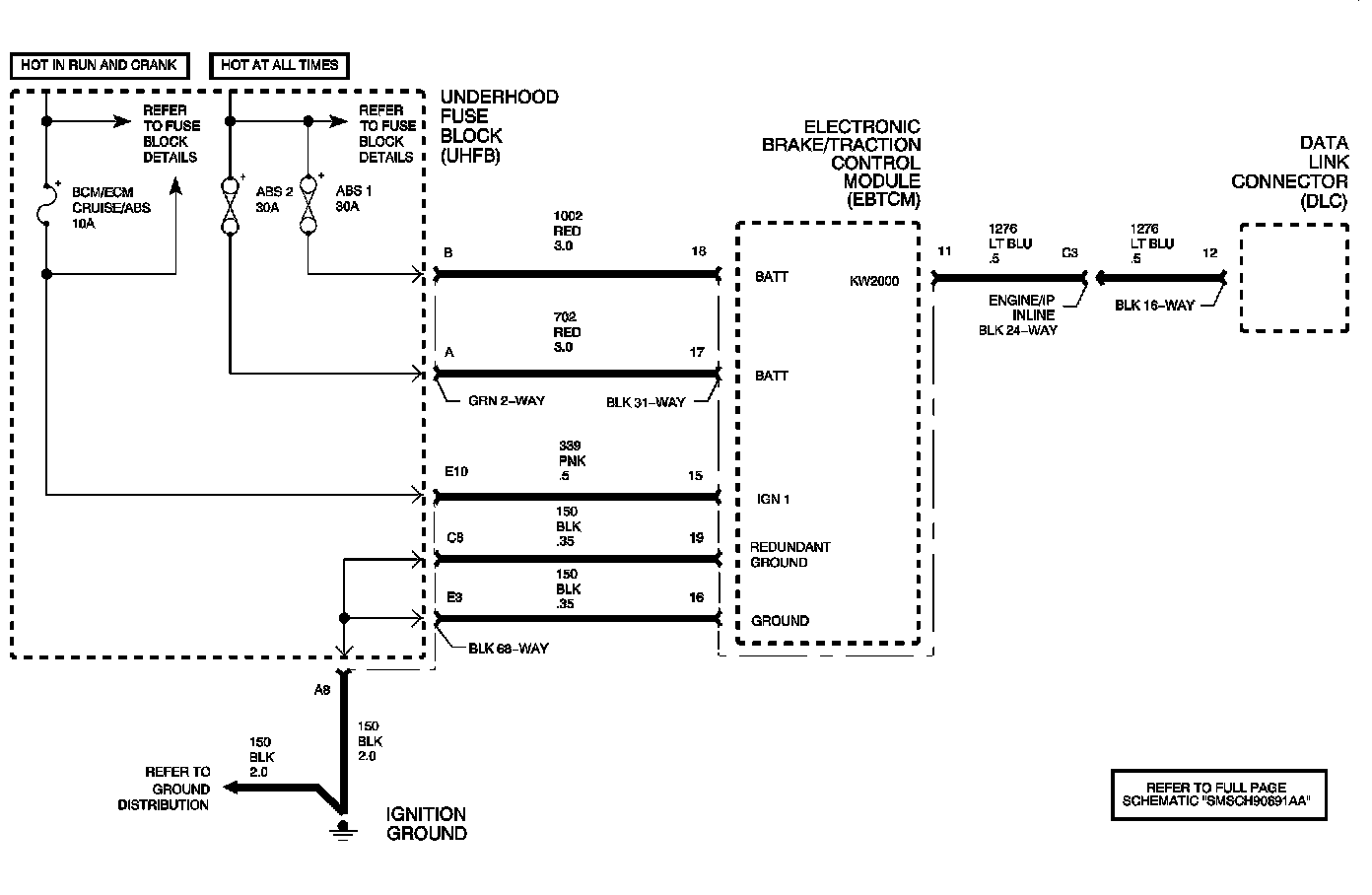

Circuit Description
Ground is continuously supplied to the low side of the antilock brake system (ABS) pump motor. The electronic brake and traction control module (EBTCM) activates the ABS pump motor by energizing the pump motor relay, allowing battery voltage to the high side of the motor.

DTC Descriptor
This diagnostic procedure supports the following DTC:
DTC C0110 Pump Motor Circuit

Conditions for Running the DTC
The ignition is ON.

Conditions for Setting the DTC
The electronic brake control module (EBCM) detects an open or shorted pump motor circuit, or a fault in the pump motor relay.

Action Taken When the DTC Sets
^ The ABS telltale will be ON.
^ The ABS control module will disable the ABS, the traction control system (TCS), and the dynamic rear proportion (DRP).

Conditions for Clearing the DTC
The Conditions for Setting the DTC are no longer present and you use the scan tool Clear DTCs function.

Diagnostic Aids





^ The pump relay and motor are NOT serviceable.
^ The valve assembly, with control module, must be replaced.
