16. Differential Case Assemble

Differential Case Assemble

Tools Required
^ 87-92-210 Differential Bearing Support
^ SA9120T Differential Bearing Installer
^ SA9172G Ball Detent Handle

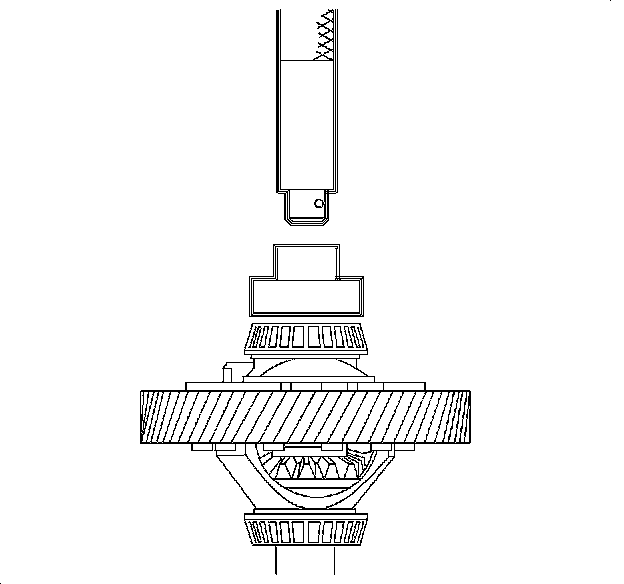

1. Press the differential bearings onto the differential assembly using the SA9120T and the SA9172G. Use the 87-92-210 under the differential as shown.
2. To change the differential bearing races, refer to Clutch Housing Assemble and Transaxle Case Disassemble or Transaxle Case Assemble.
