Case Fluid Passages (Bottom)

Case Fluid Passages (Bottom)

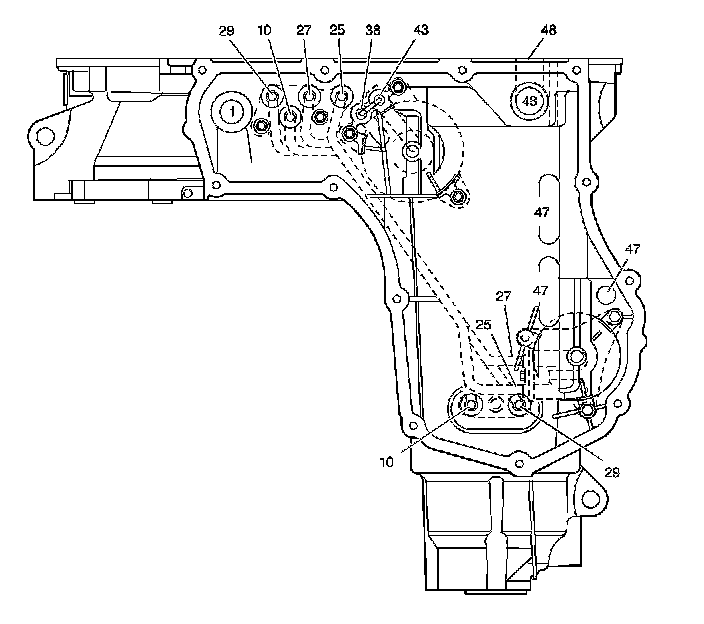

Case Fluid Passages (Bottom):





1 - Suction
10 - Lube 2
10 - Lube 2
25 - Reverse
25 - Reverse
27 - Lo Band
27 - Lo Band
29 - Forward Clutch
29 - Forward Clutch
38 - 4th Band
43 - Intermediate Band
47 - Void
47 - Void
47 - Void
48 - Oil Level Control
48 - Oil Level Control
