Normal Scan Tool Data Values

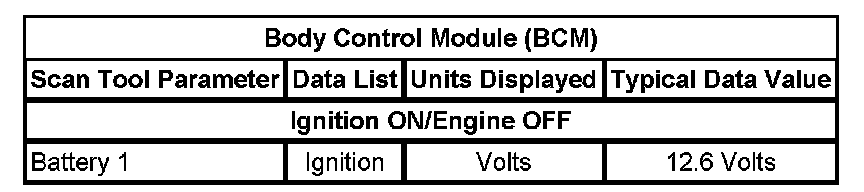

Scan Tool Data List - Body Control Module (BCM):

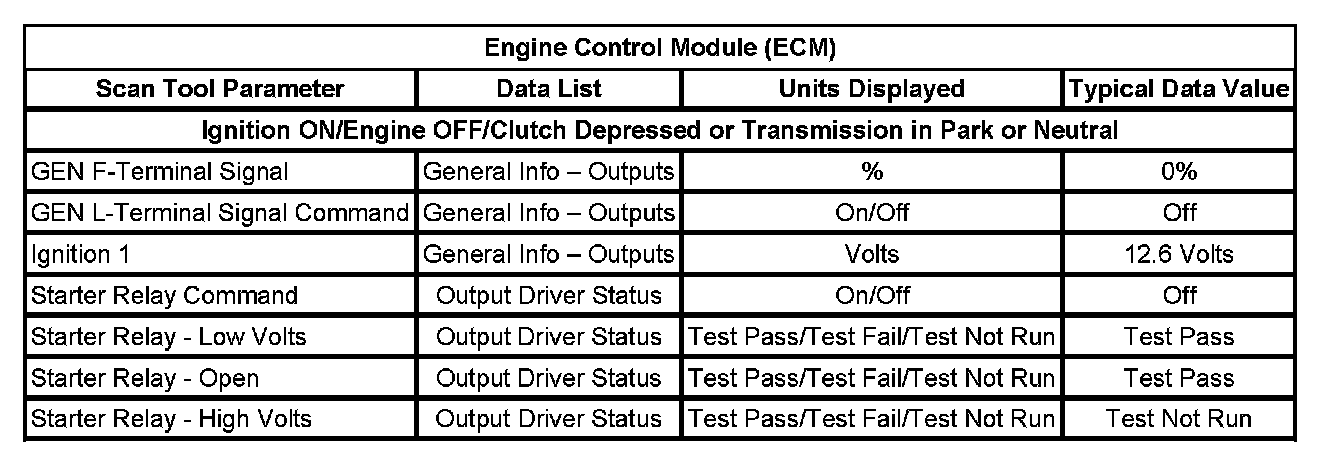

Scan Tool Data List - Engine Control Module (ECM):
