Home >> Saturn >> 2005 >> ION L4-2.0L SC VIN P >> Repair and Diagnosis >> Starting and Charging >> Testing and Inspection >> Scan Tool Testing and Procedures >> General Scan Tool

General Scan Tool

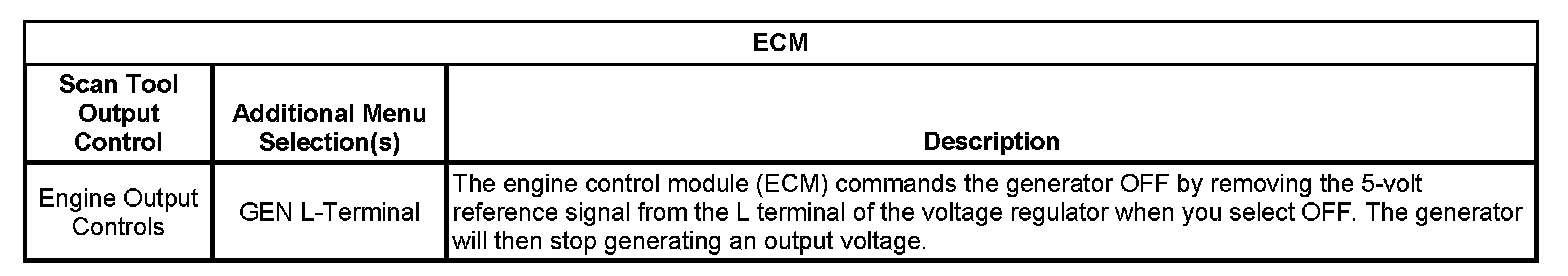

Scan Tool Output Controls - ECM:

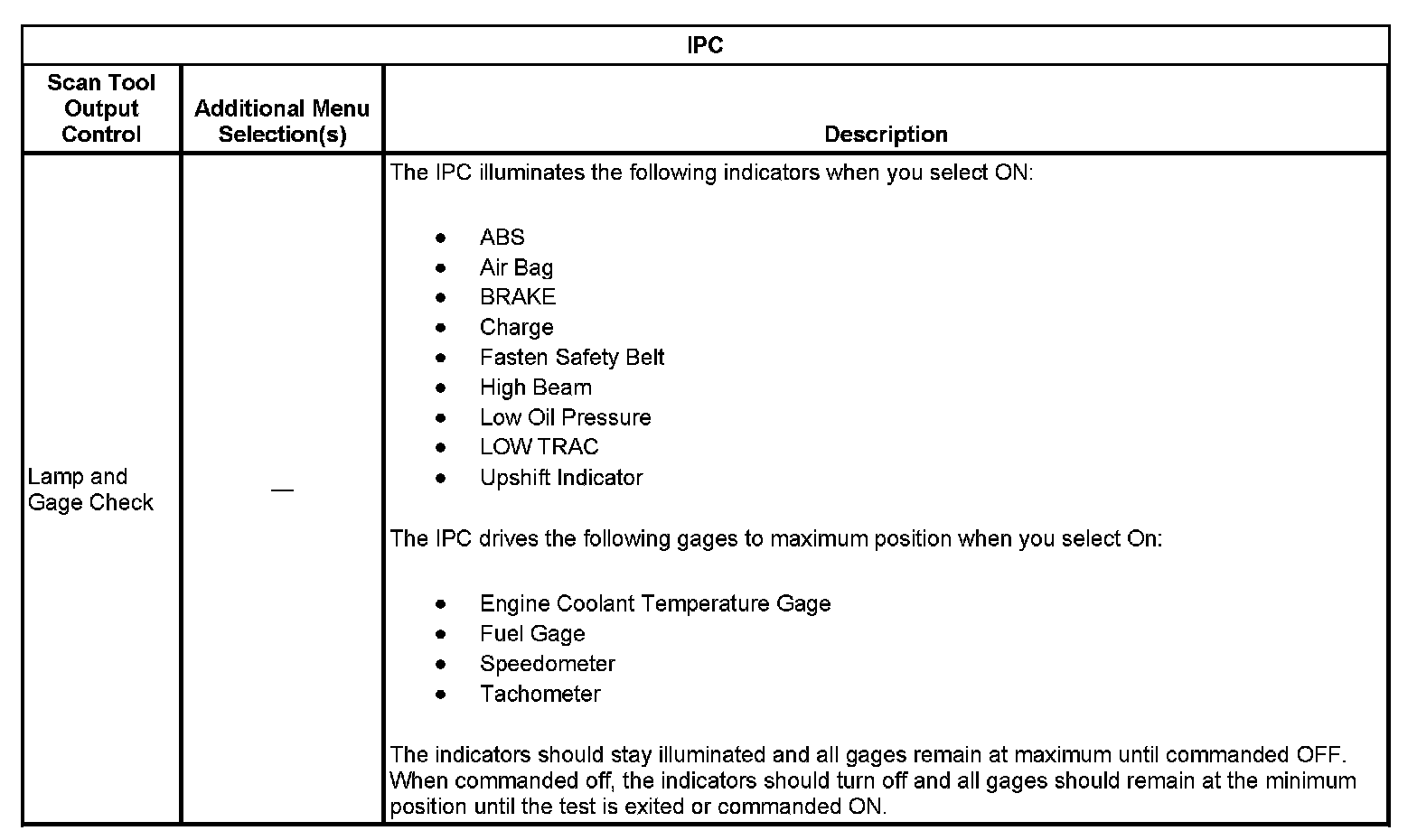

Scan Tool Output Controls - IPC:
