Home >> Saturn >> 2005 >> ION L4-2.0L SC VIN P >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Brakes and Traction Control >> Traction Control Switch >> Diagrams

Traction Control Switch: Diagrams

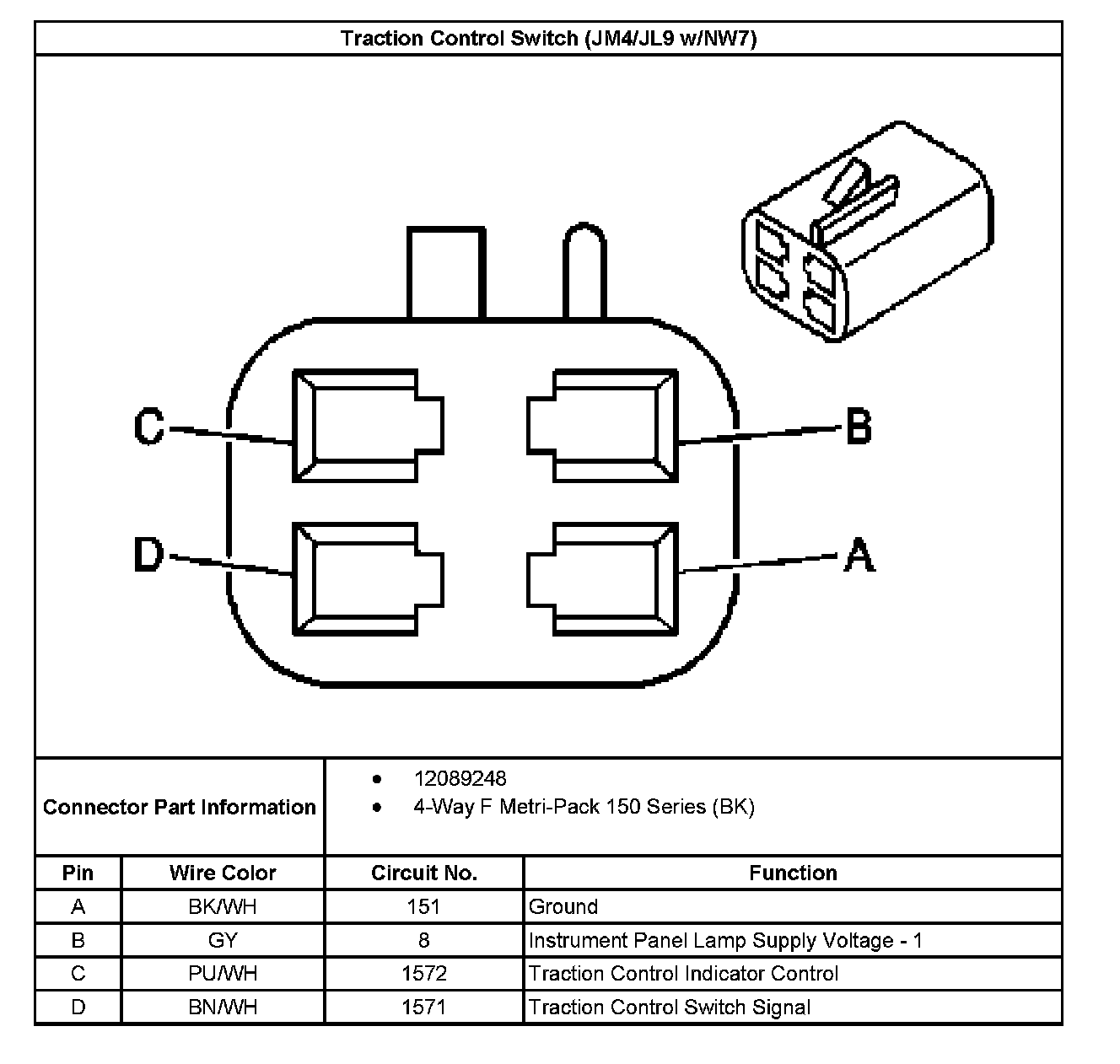

Traction Control Switch With RPO Code JM4/JL9 W/NW7 4-Way Connector End View:
