Brake Fluid Level Sensor/Switch: Locations



Hydraulic Brakes Component Views

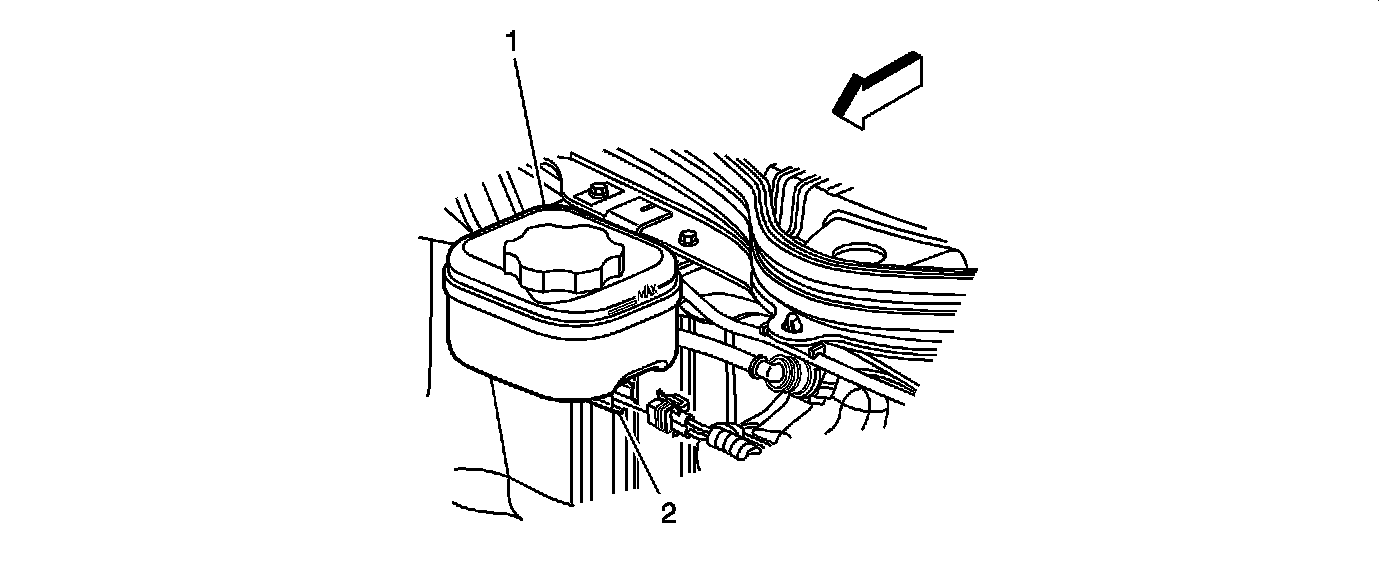

Rear of the Engine Compartment

Rear of the Engine Compartment:





1 - Brake Master Cylinder Auxiliary Reservoir
2 - Brake Fluid Level Switch
