Seat Belt Tensioner: Diagrams
Seat Belt Pretensioner-LF (Sedan):

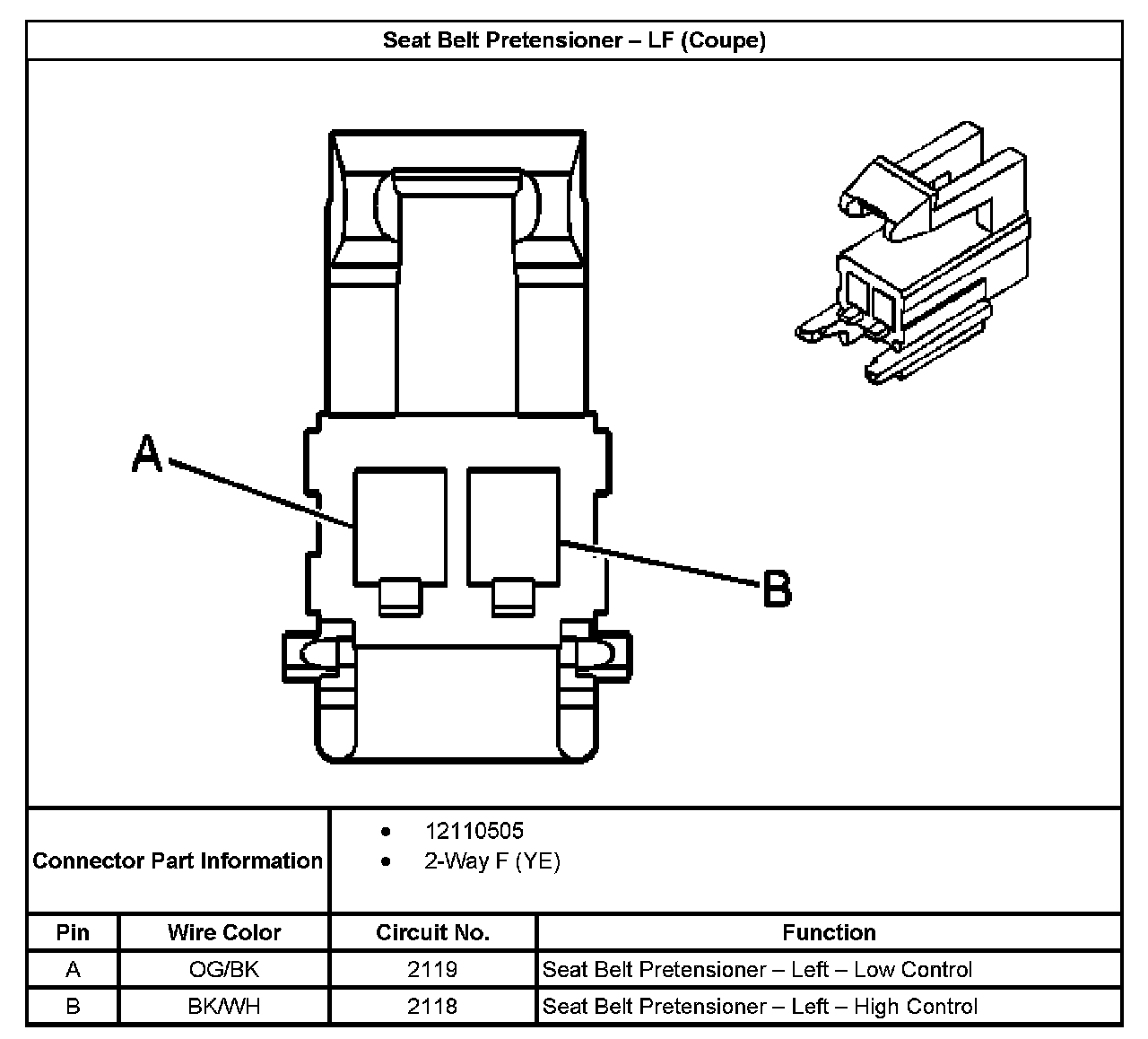

Seat Belt Pretensioner-LF (Coupe):

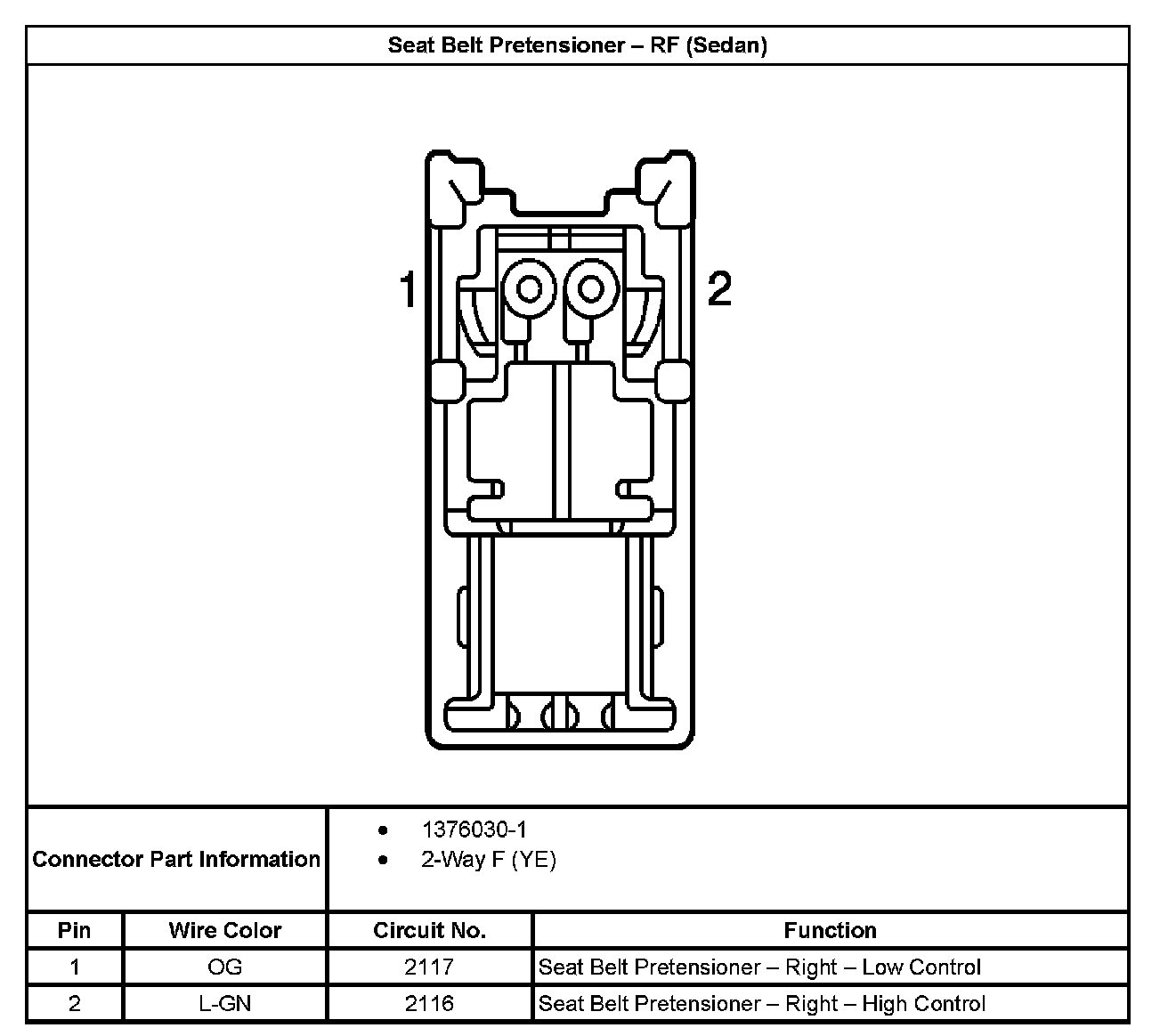

Seat Belt Pretensioner-RF (Sedan):
Seat Belt Pretensioner-RF (Coupe):
