Rear (Coupe)

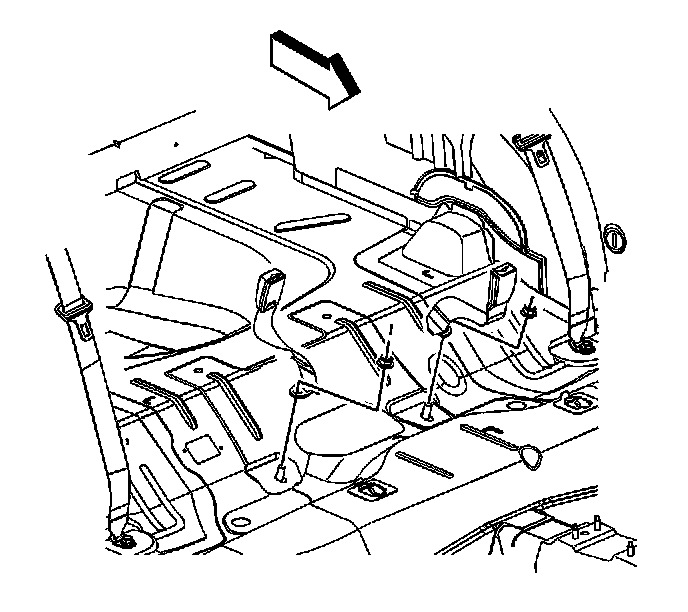

SEAT BELT BUCKLE REPLACEMENT - REAR (COUPE)

REMOVAL PROCEDURE




1. Remove the rear seat cushion.
2. Remove the nut from the rear seat belt buckle.
3. Remove the rear seat belt buckle.

INSTALLATION PROCEDURE




1. Position the rear seat belt buckle to the studs.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the nut to the rear seat belt buckle.

Tighten the nut to 45 N.m (33 lb ft).

3. Install the rear seat cushion.
