Air Bag: Diagrams

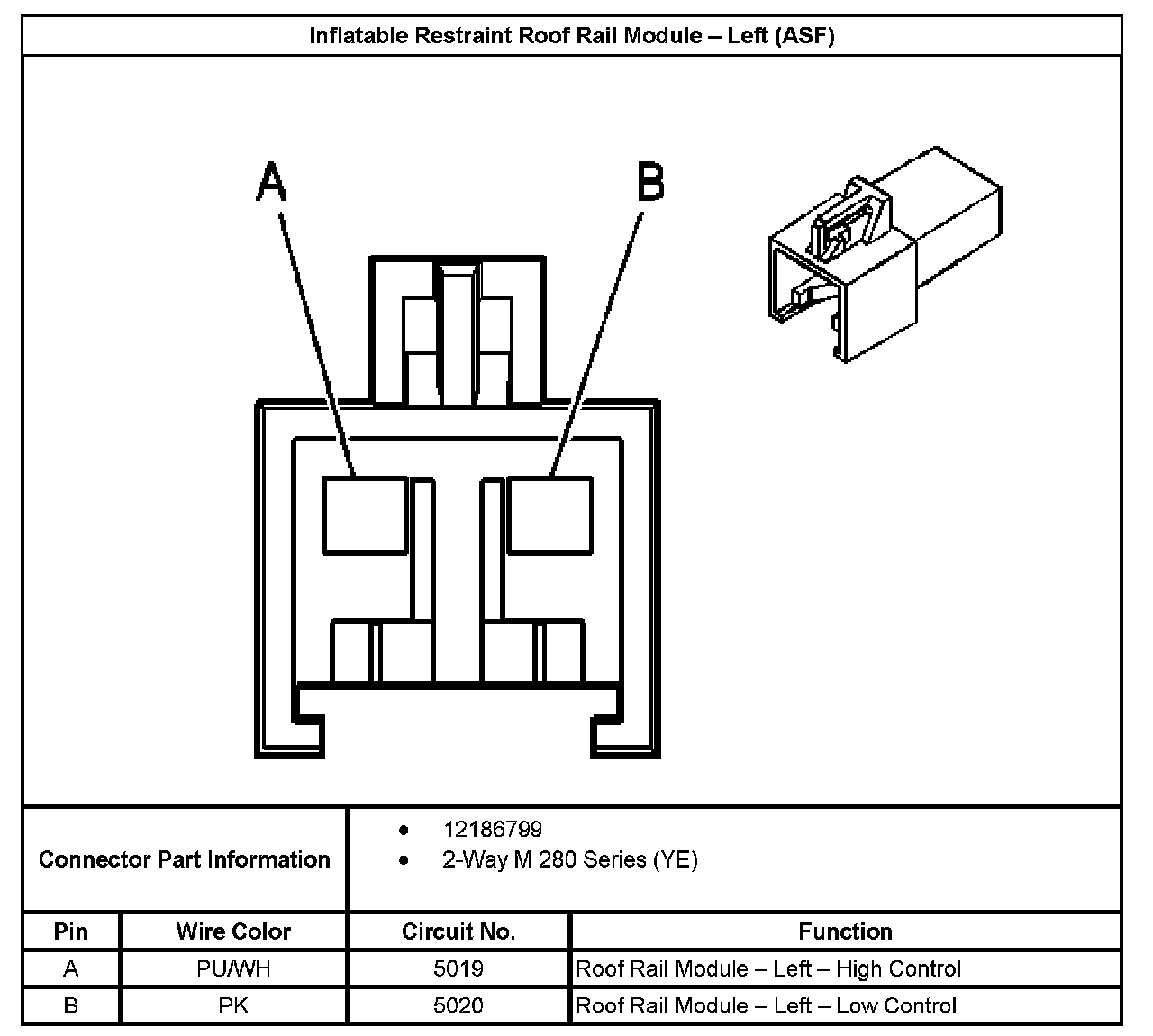

Inflatable Restraint Roof Rail Module-Left (with RPO Code ASF):

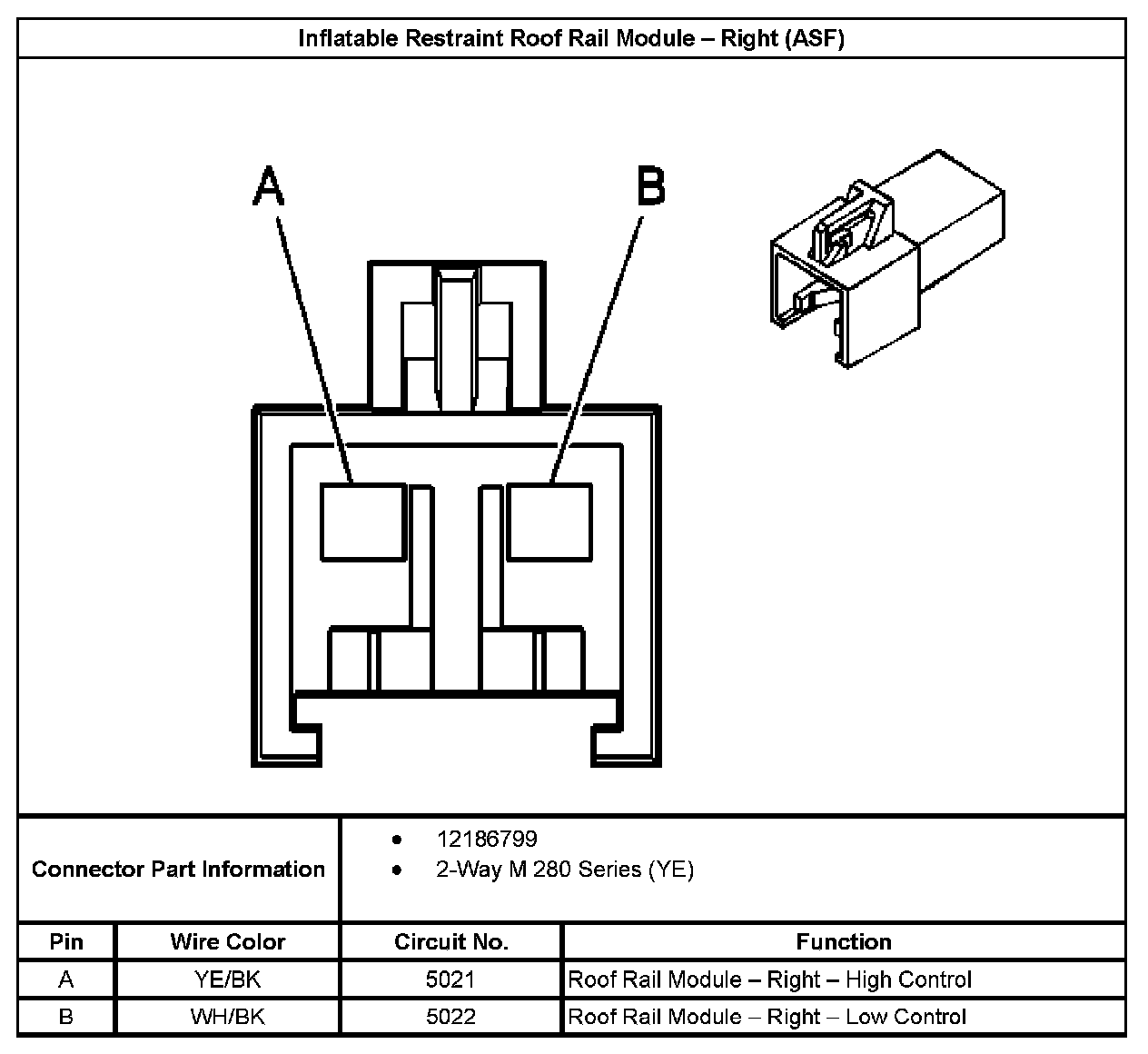

Inflatable Restraint Roof Rail Module-Right (with RPO Code ASF):



Inflatable Restraint I/P Module C1:

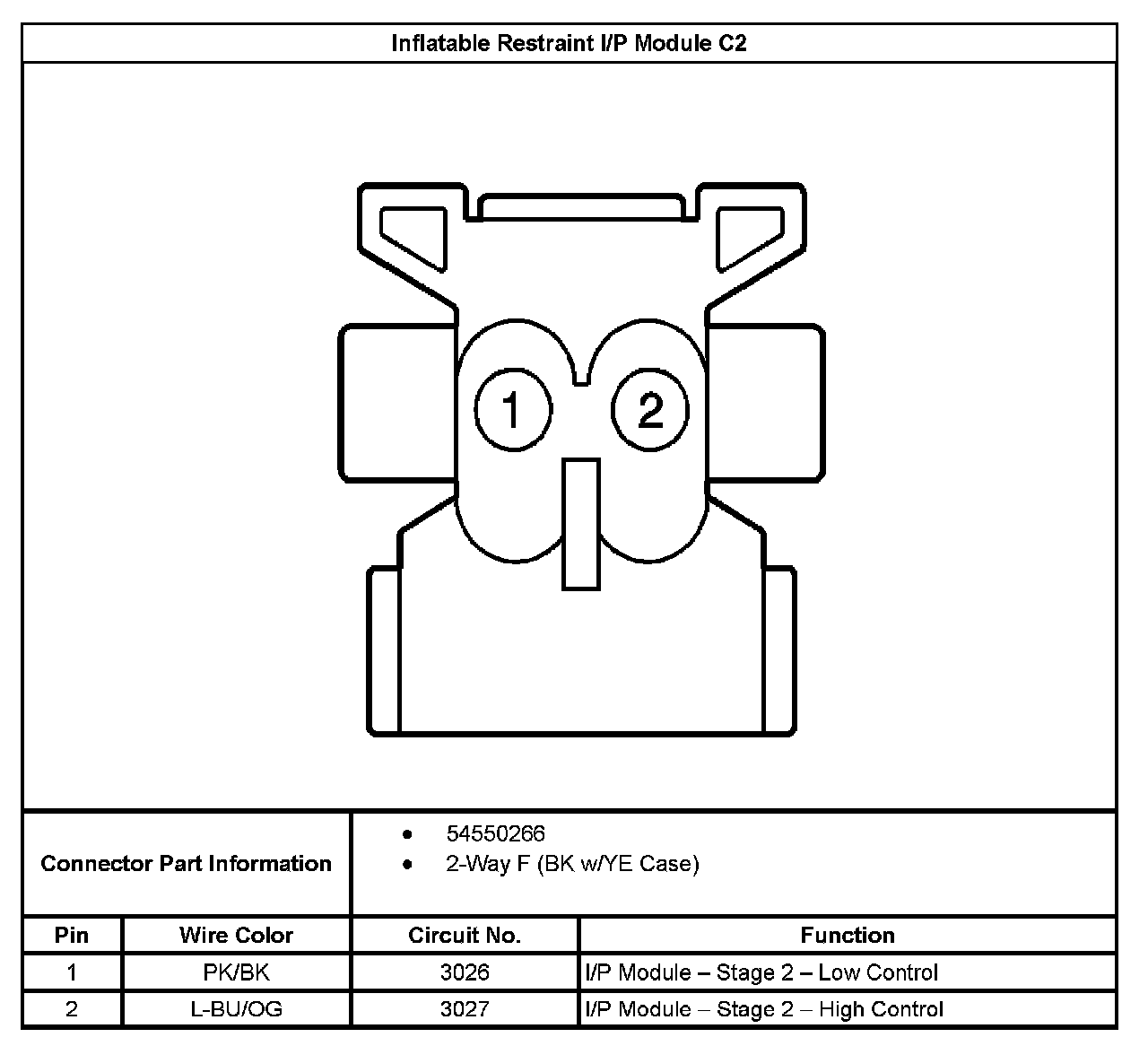

Inflatable Restraint I/P Module C2:
