Home >> Saturn >> 2005 >> ION L4-2.0L SC VIN P >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Diagrams >> Electrical Diagrams

Electrical Diagrams



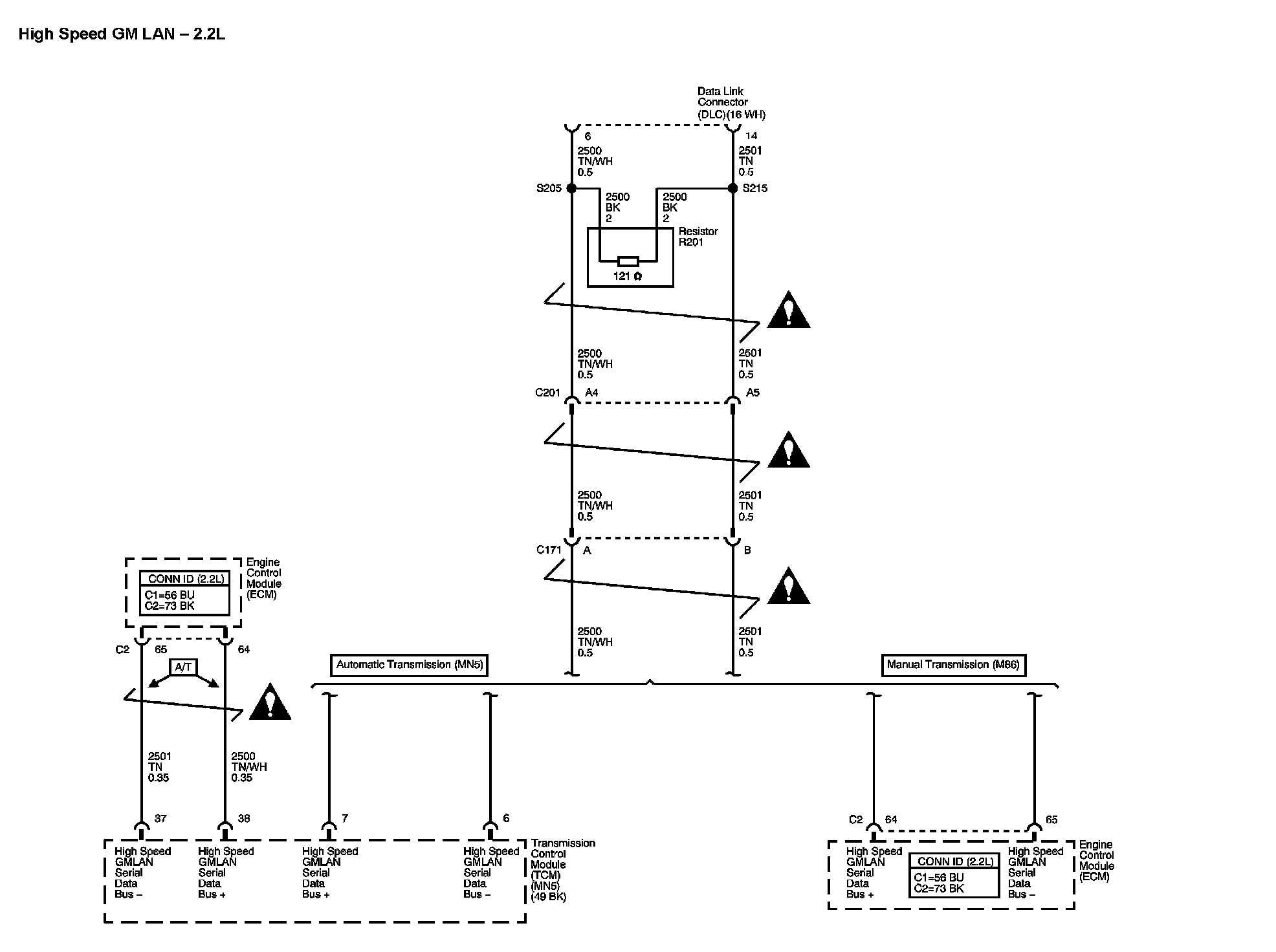

Data Link Connector (DLC) Diagram 1:




Data Link Connector (DLC) Diagram 2:
