Home >> Saturn >> 2005 >> ION L4-2.0L SC VIN P >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Diagrams

Control Assembly: Diagrams

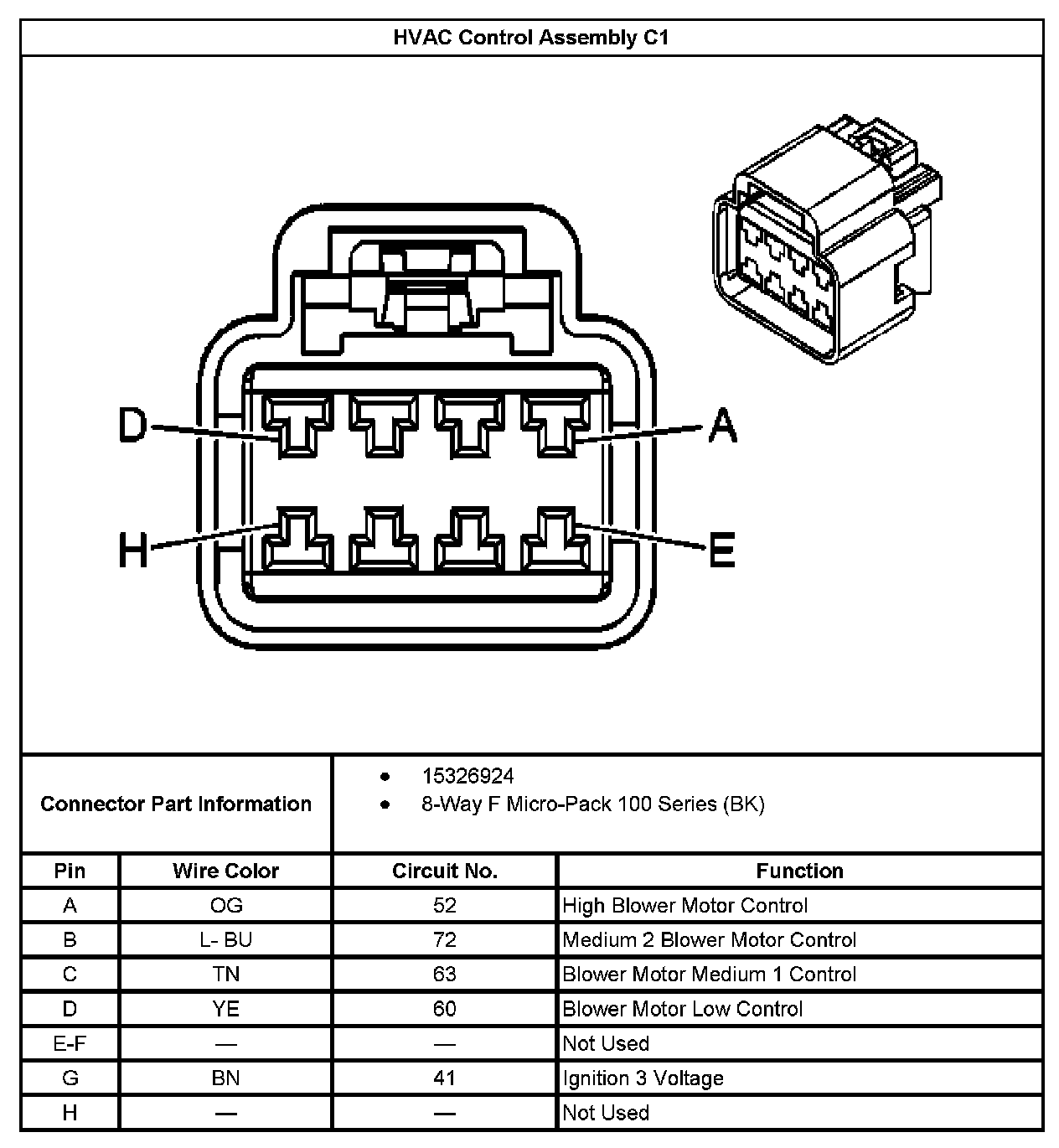

HVAC Control Assembly C1:

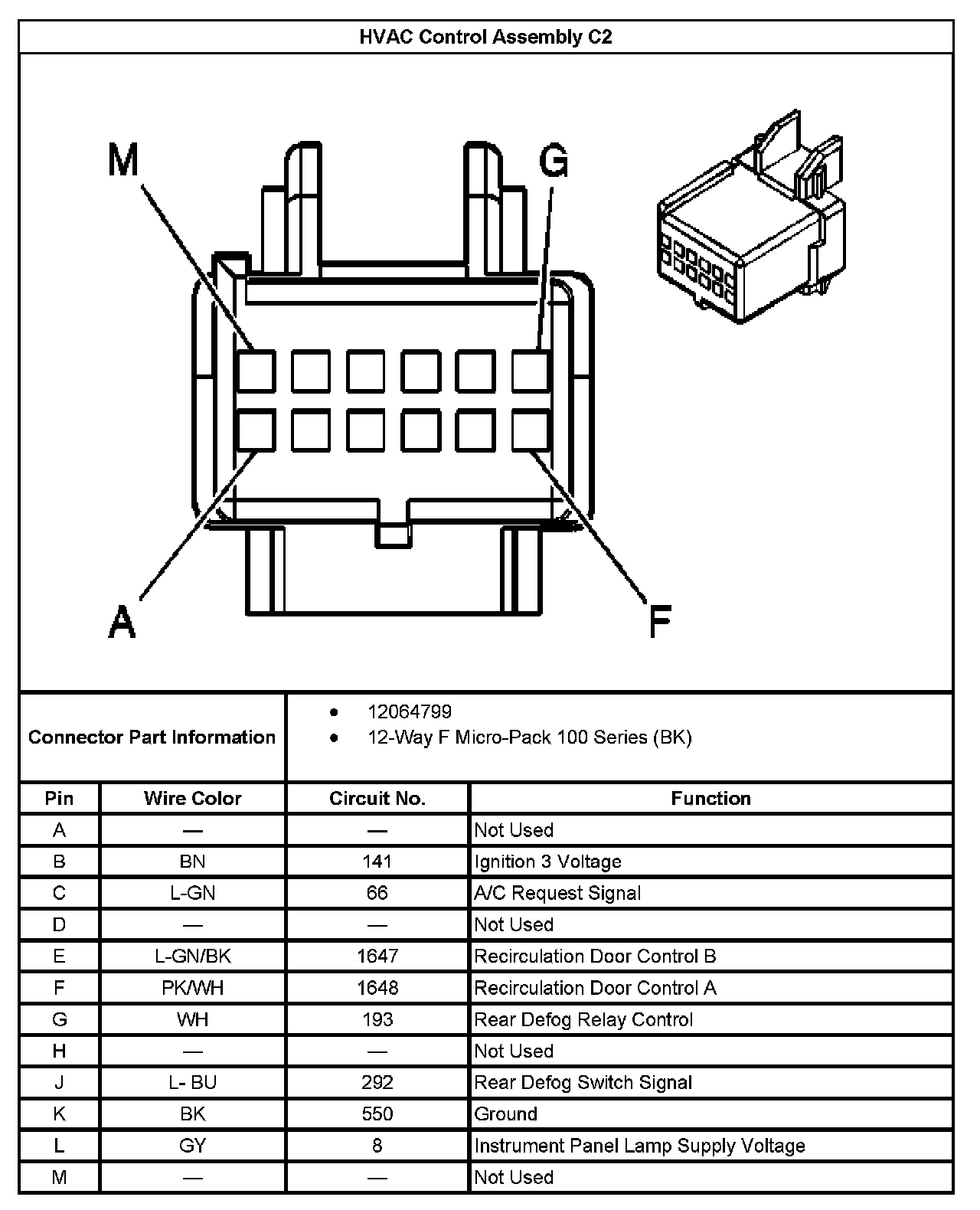

HVAC Control Assembly C2:
