Defogger Outlet Duct Replacement - Side Window, LH

DEFOGGER OUTLET DUCT REPLACEMENT - SIDE WINDOW, LH

REMOVAL PROCEDURE
1. Remove the defroster grille and place face down on a clean surface.

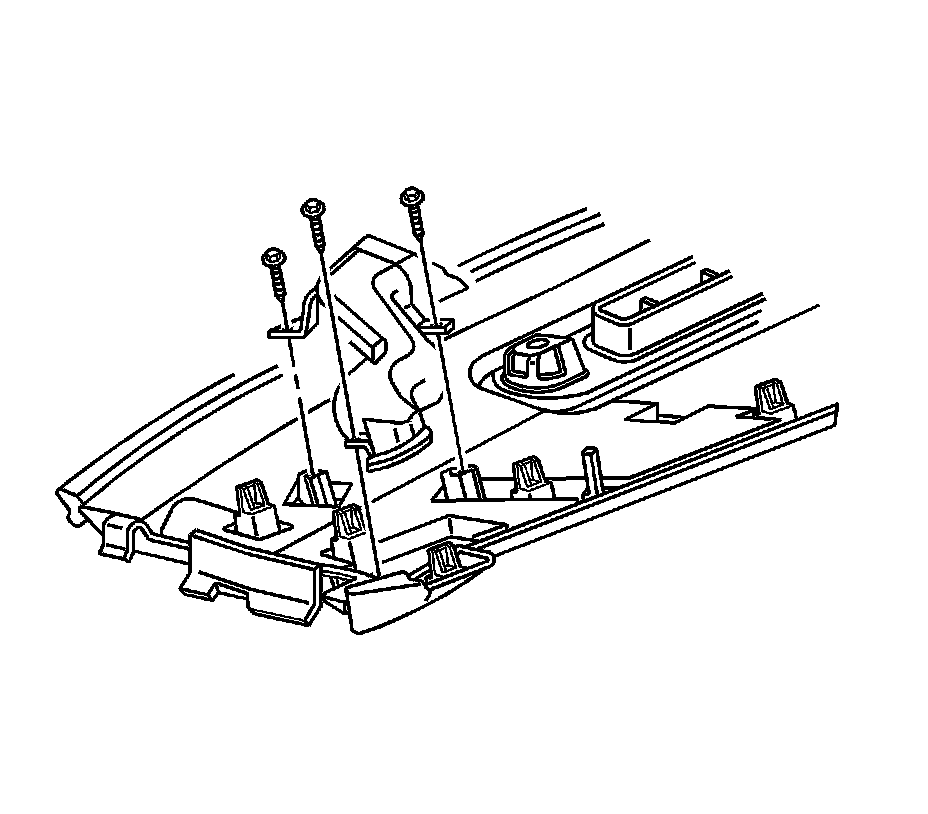

2. Remove the side window defroster duct screws and duct.

INSTALLATION PROCEDURE




1. Install the side window defroster duct.

2. Install the side window defroster duct screws.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the screws to 1.5 N.m (13 lb in).

3. Install the defroster grille.
