Oil Cooler: Service and Repair

Oil Cooler Replacement

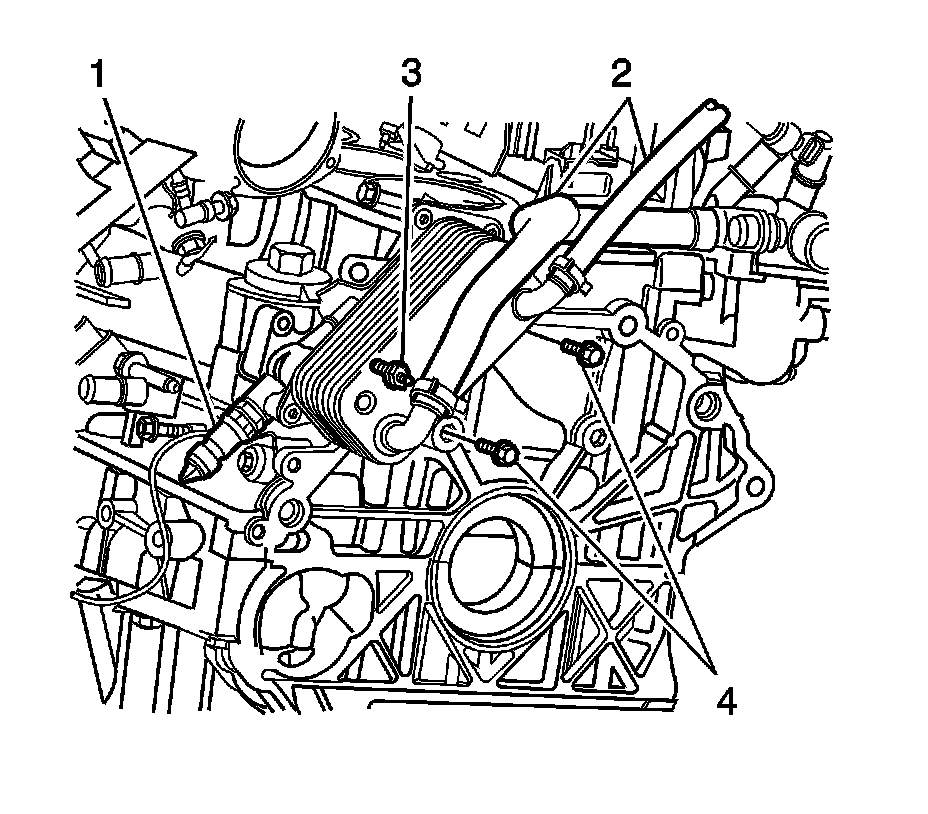

Removal Procedure
1. Drain the charged air cooling system.





2. Disconnect the oil cooler hoses.
3. Remove the oil pressure sensor.
4. Remove the oil cooler bolts.
5. Remove the oil cooler.

Installation Procedure





1. Install the oil cooler.

2. Notice: Refer to Fastener Notice in Service Precautions.

Install the oil cooler bolts.
^ Tighten the bolts to 25 Nm (18 ft. lbs.).
3. Install the oil pressure sensor.
^ Tighten the sensor to 22 Nm (16 ft. lbs.).
4. Connect the oil cooler hoses.
5. Fill the charged air cooling system.
