ABS Schematics

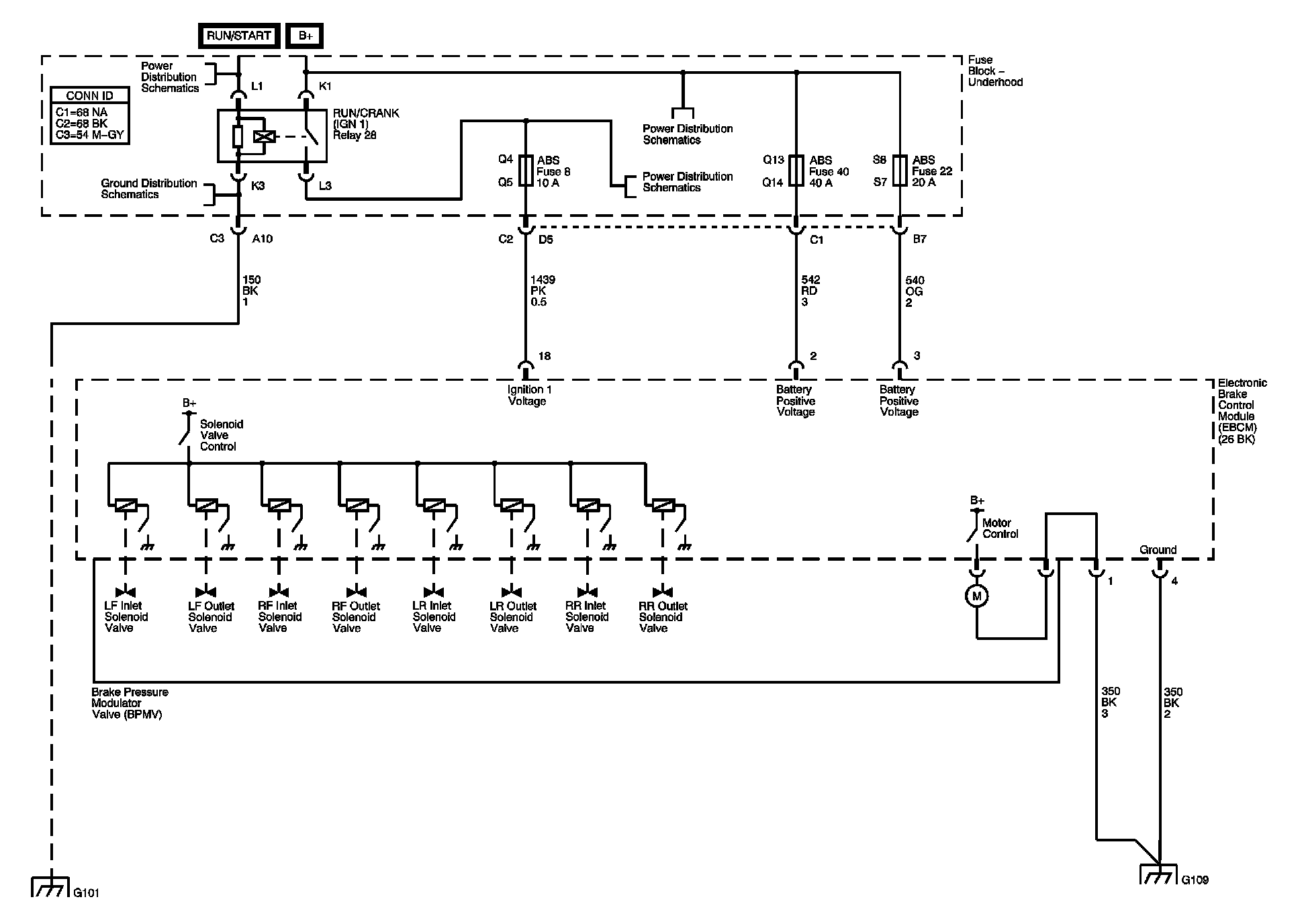

Power, Ground, and BPMV Controls:

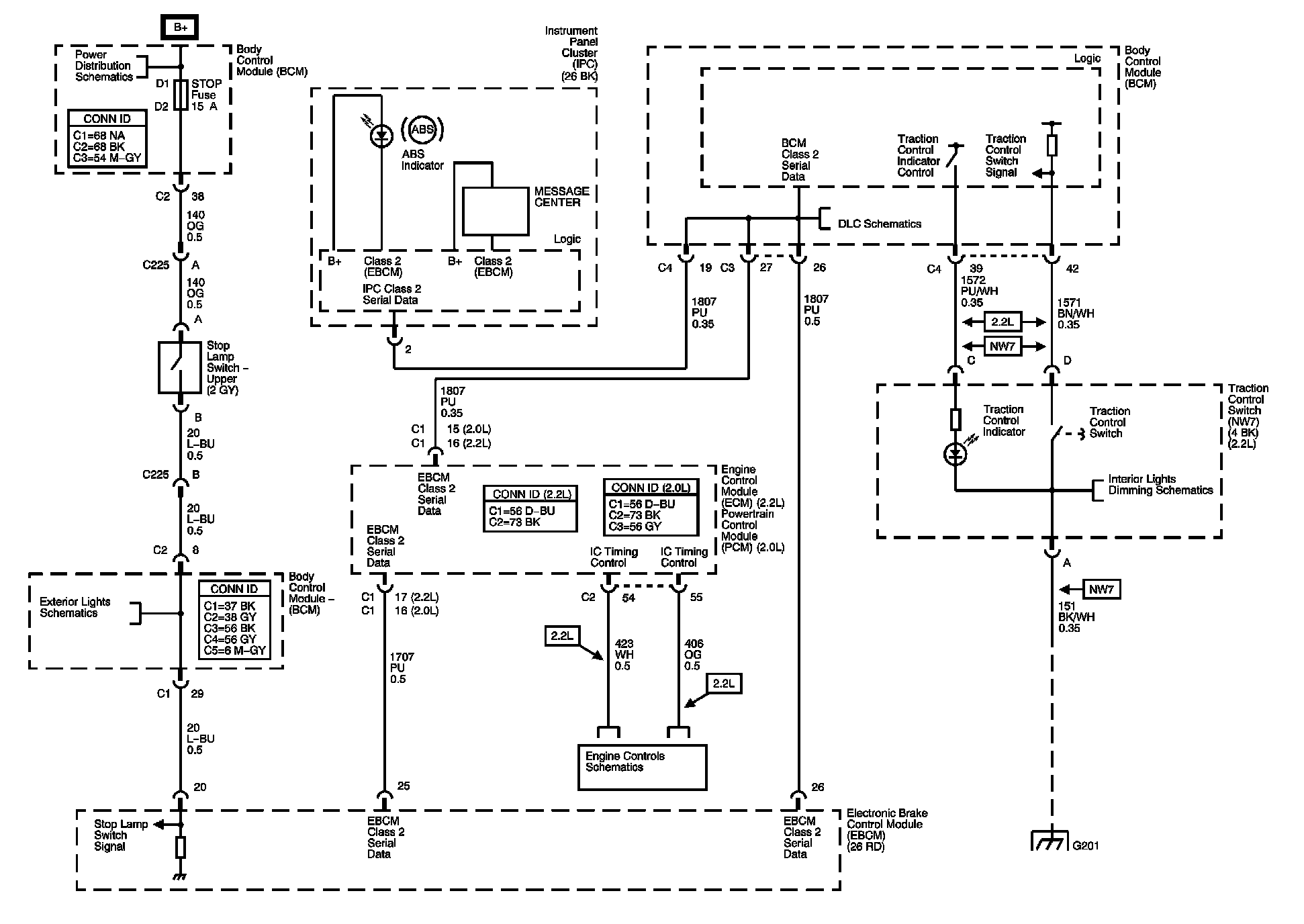

Traction Control, DLC, and Indicators:

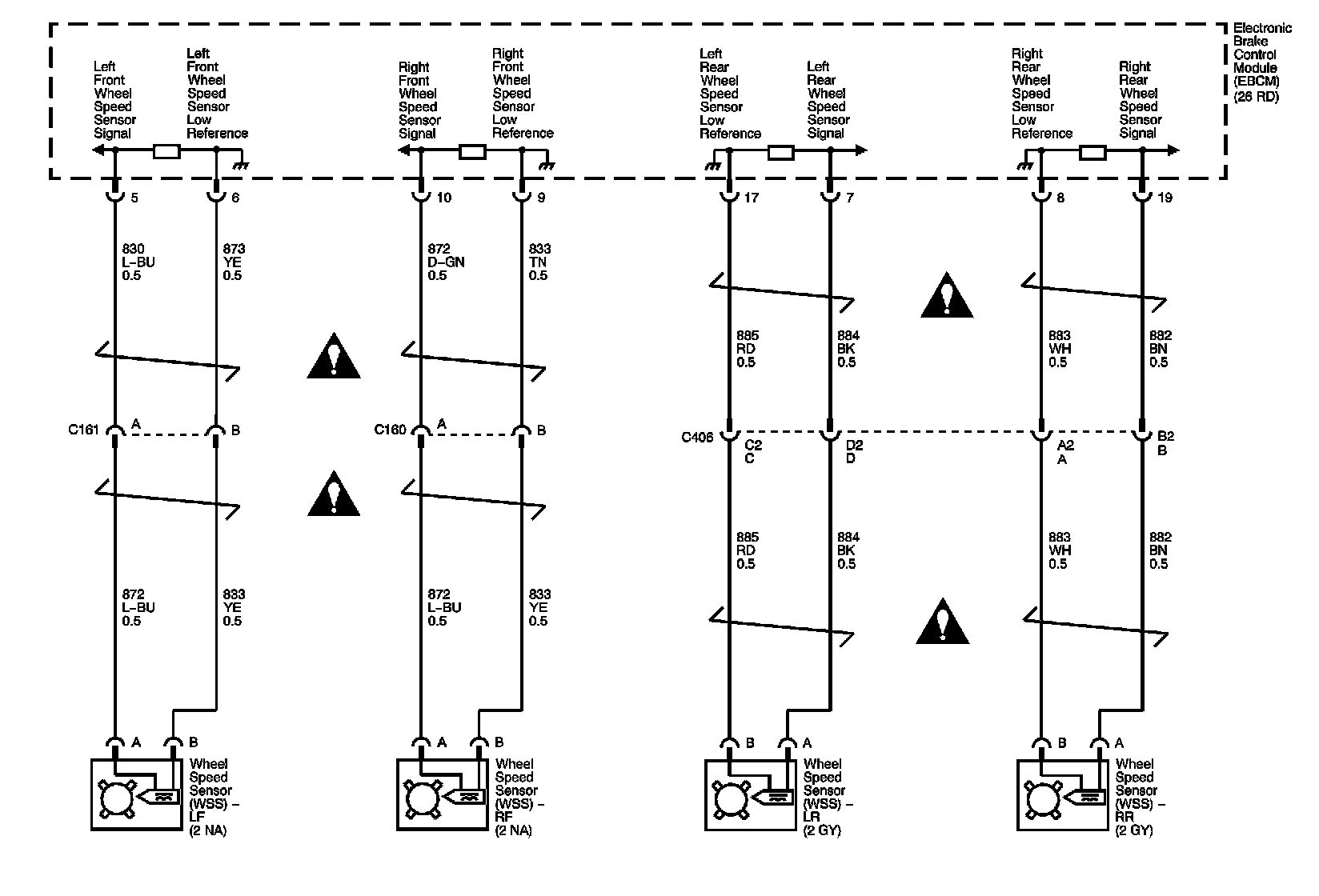

Wheel Speed Sensors:
