ION L4-2.0L SC VIN P
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Speaker
>>
RF Door
RF Door

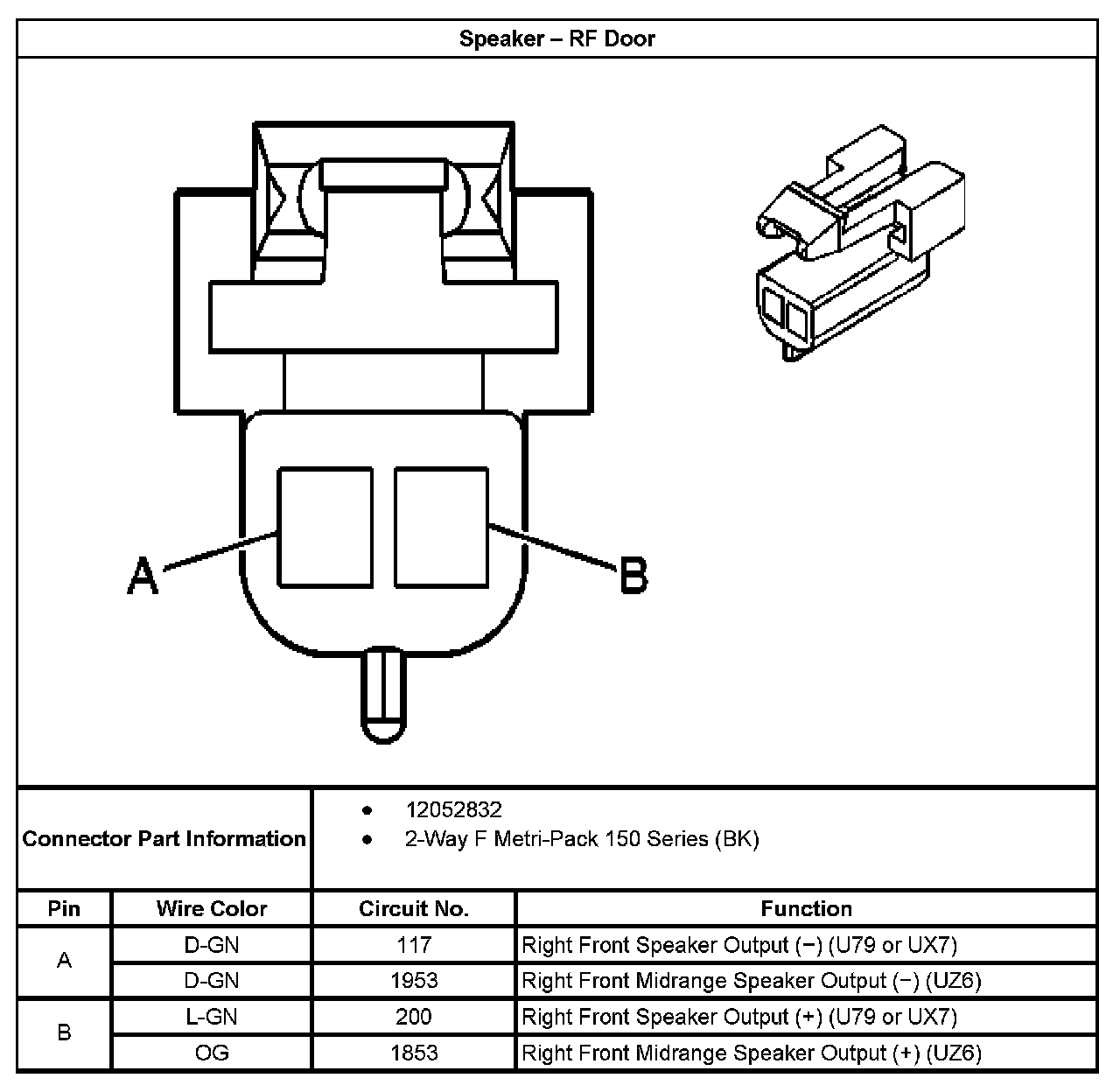

Speaker-RF Door:

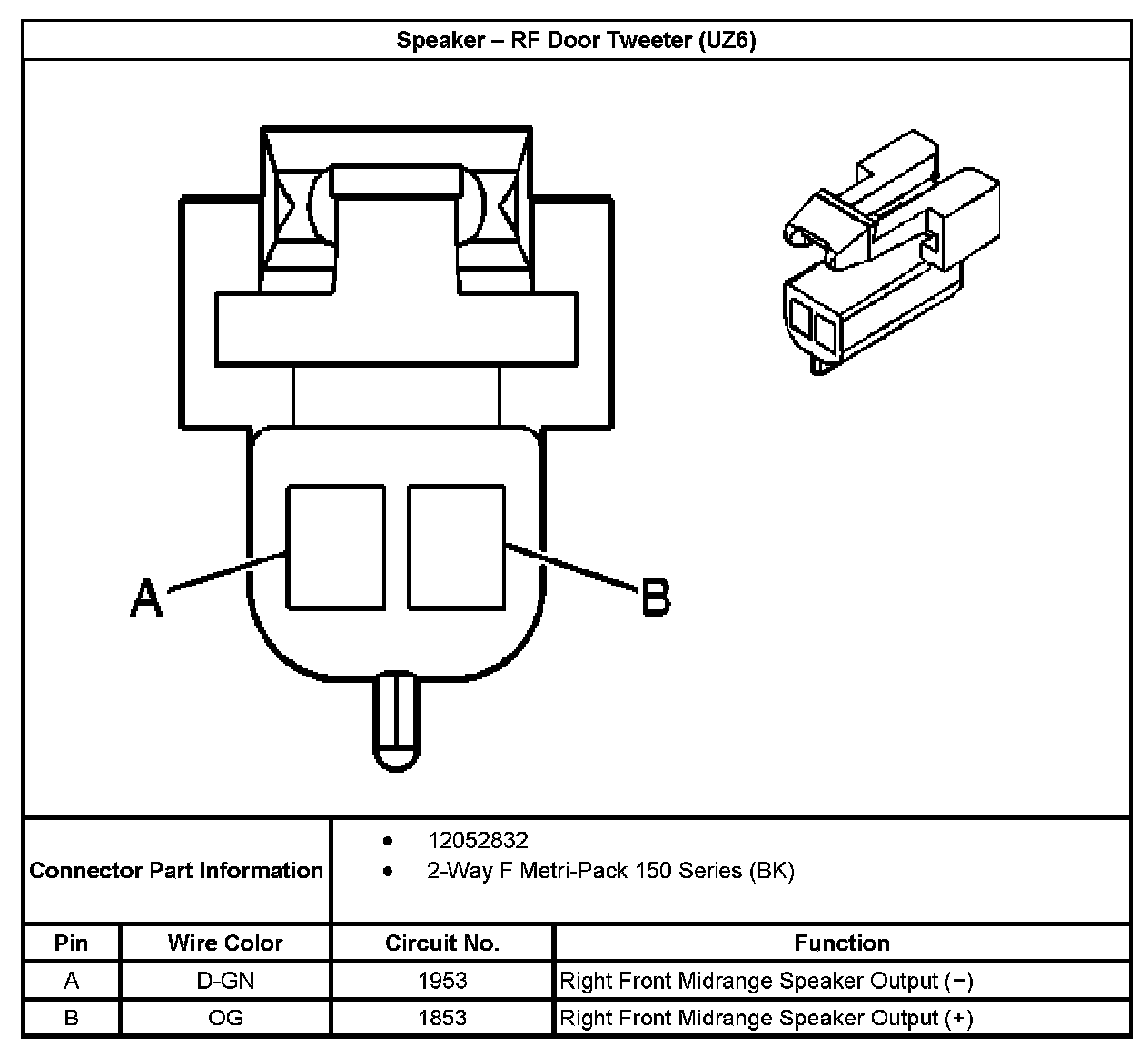

Speaker-RF Door Tweeter (UZ6):
