Saturn
>>
2005
>>
ION L4-2.0L SC VIN P
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Remote Control, Audio - Stereo
Remote Control, Audio - Stereo

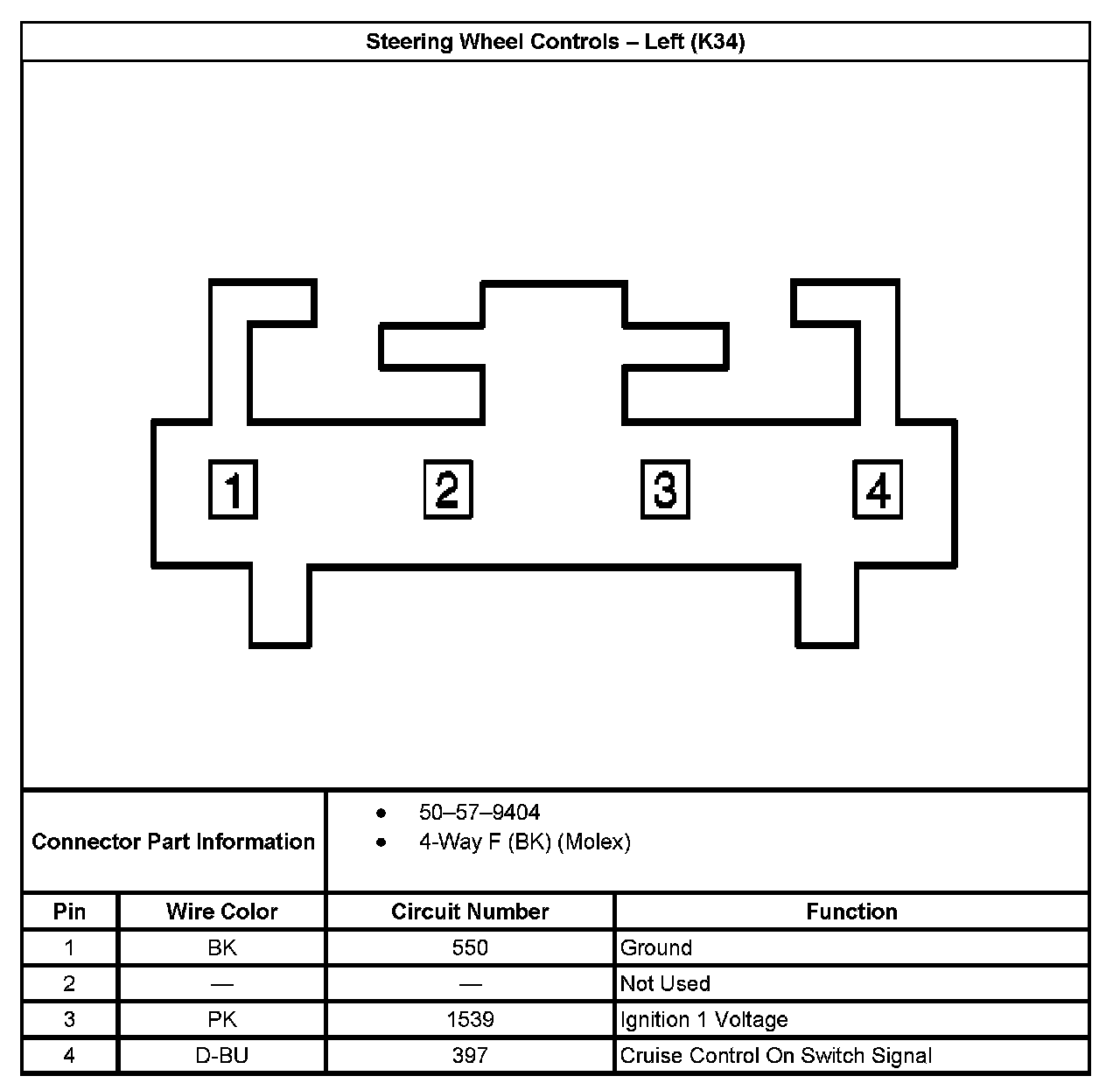

Steering Wheel Controls-Left (With RPO Code K34):

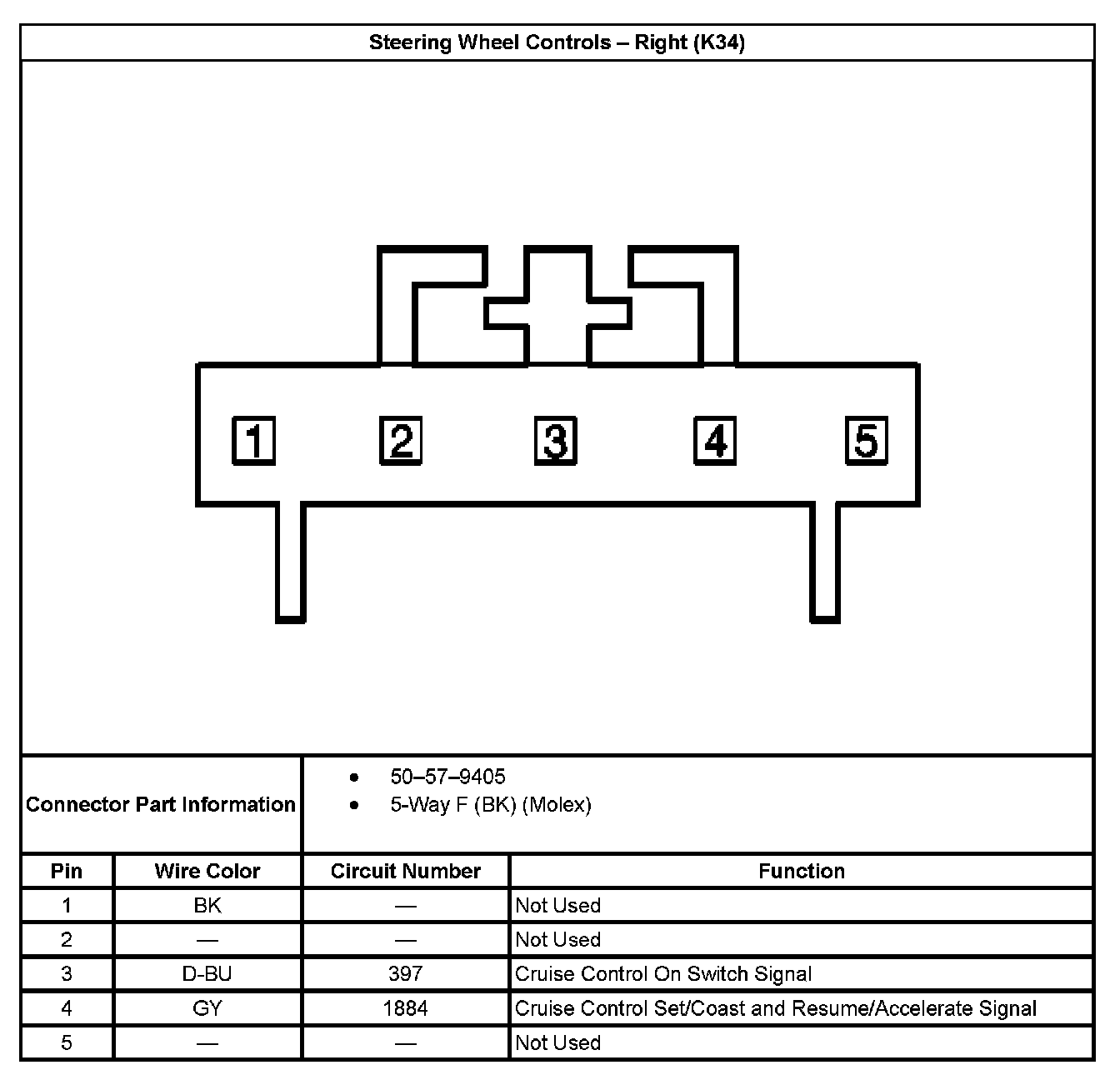

Steering Wheel Controls-Right (With RPO Code K34):
