Wheel Speed Sensor (WSS) - RR With RPO Code JM4/JL9
Wheel Speed Sensor (WSS) - RR With RPO Code JM4/JL9

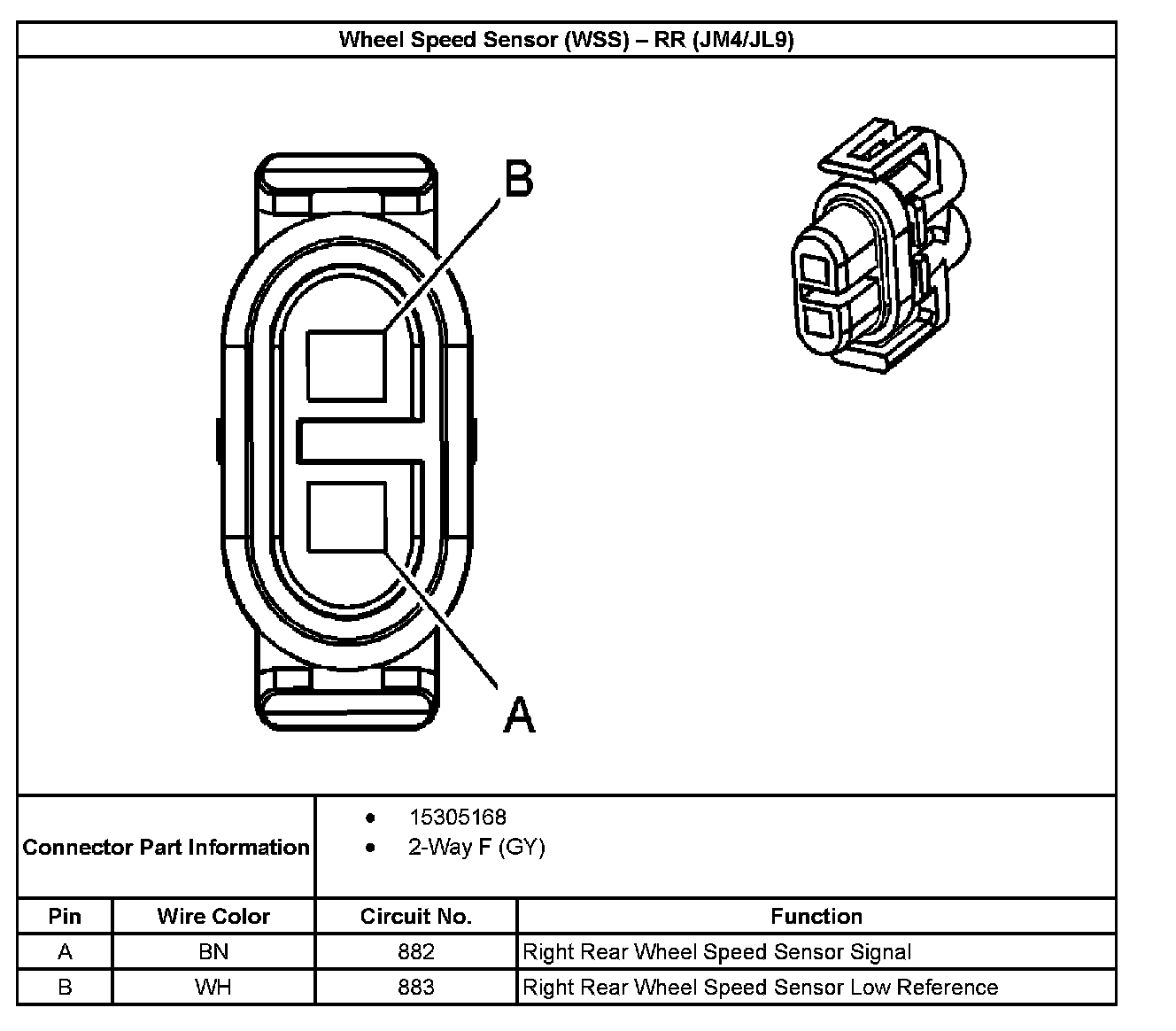

Wheel Speed Sensor (WSS) - RR With RPO Code JM4/JL9 2-Way Connector End View:
