Home >> Saturn >> 2005 >> ION L4-2.0L SC VIN P >> Repair and Diagnosis >> Brakes and Traction Control >> Parking Brake System >> Testing and Inspection >> Component Tests and General Diagnostics >> Park Brake System Diagnosis

Park Brake System Diagnosis

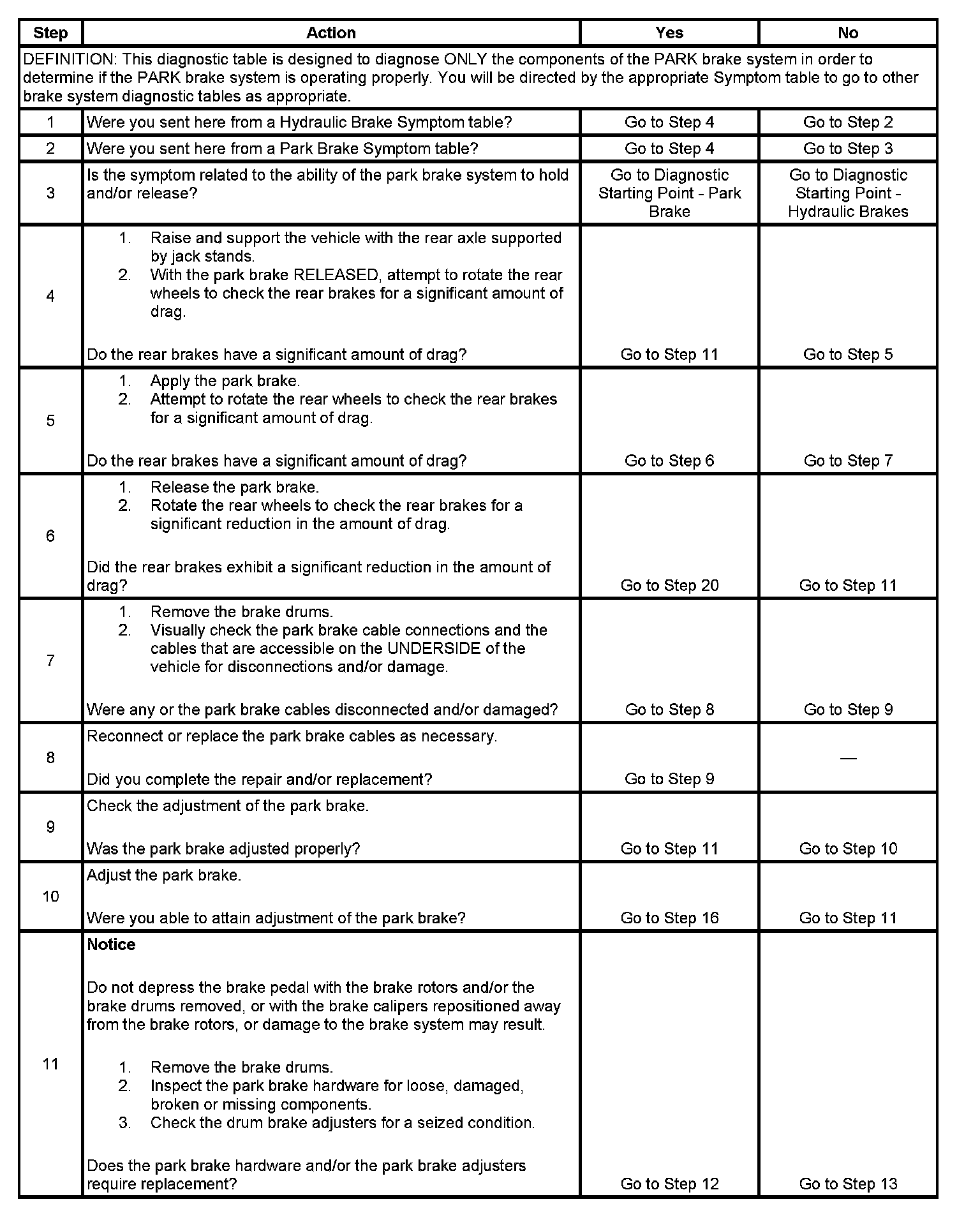

Steps 1 - 11:

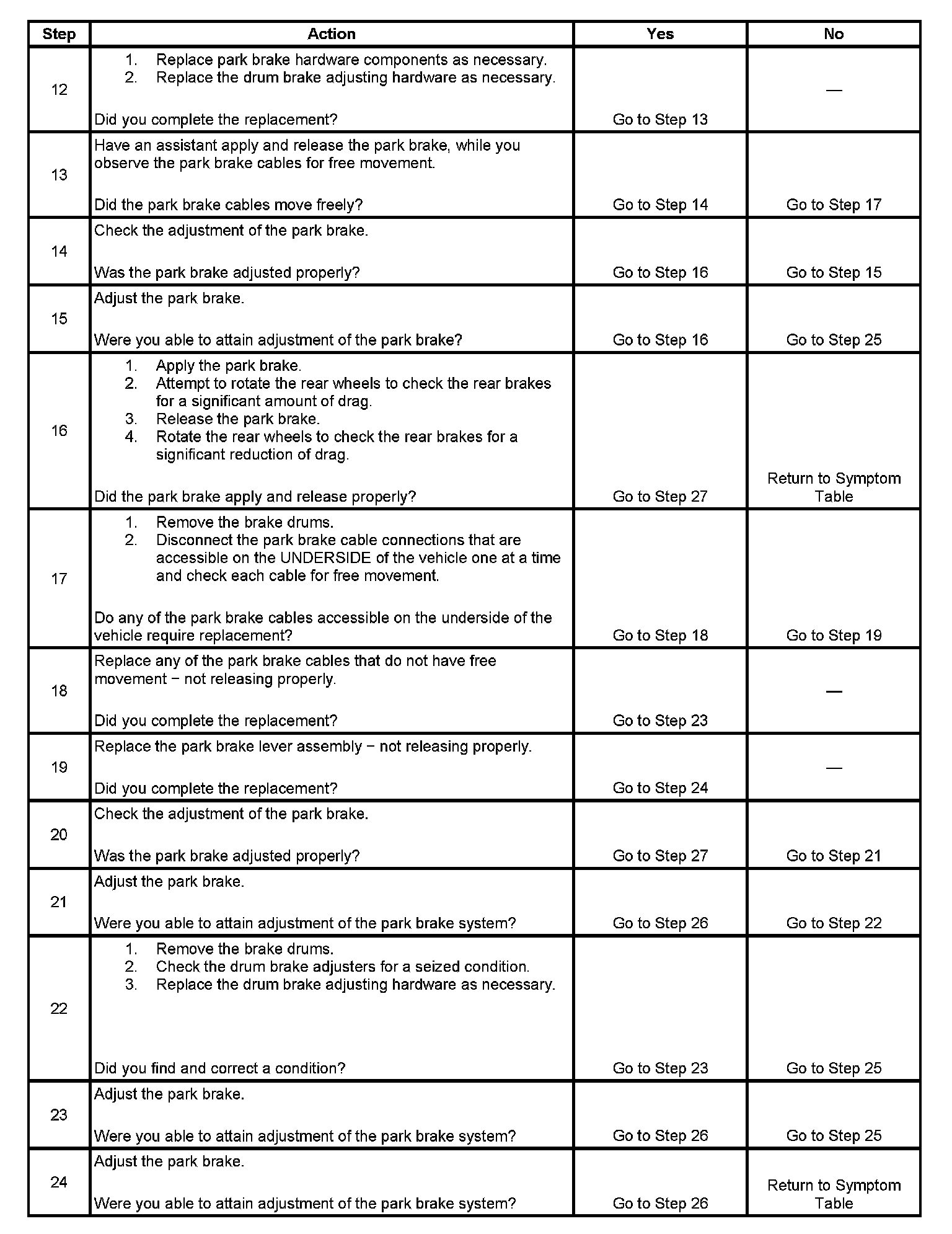

Steps 12 - 24:

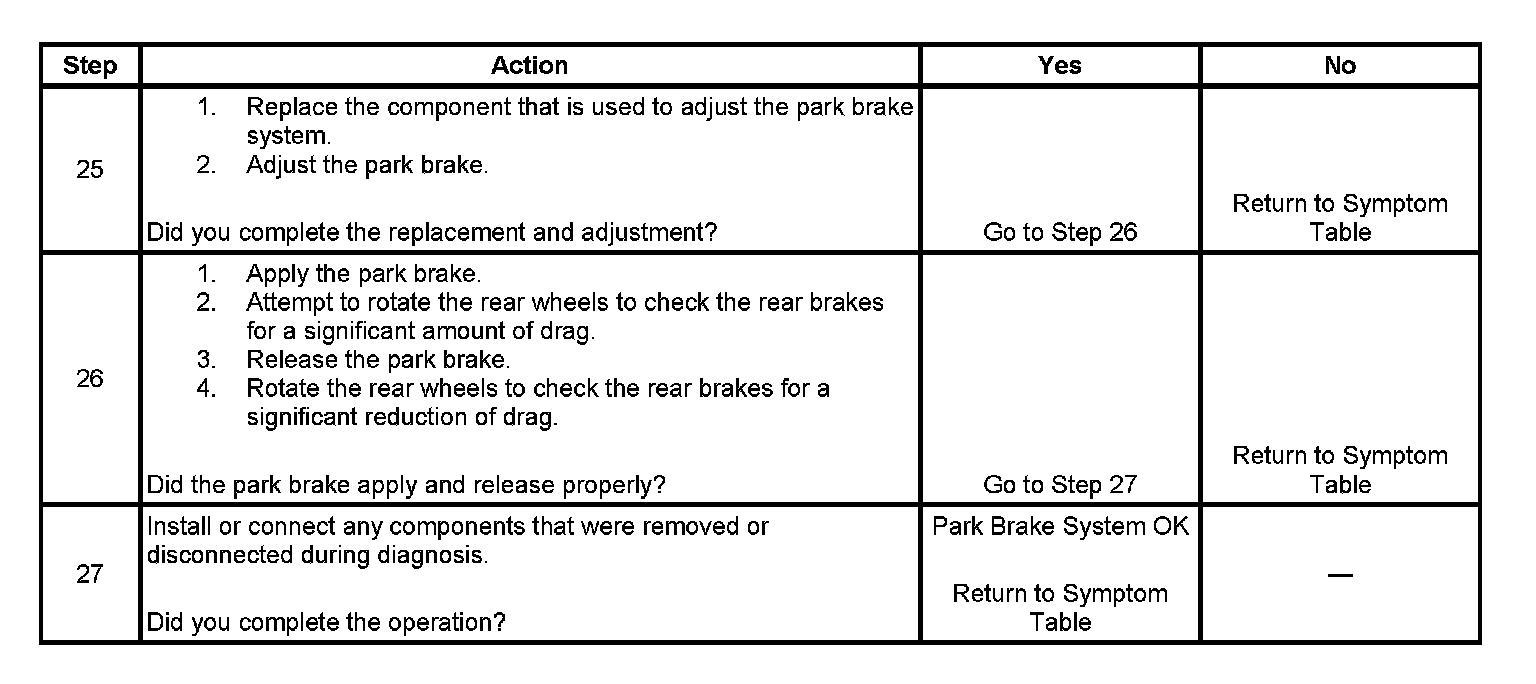

Steps 25 - 27:
