Braking Action Uneven - Pulls to One Side



Braking Action Uneven - Pulls to One Side

Test Description

Steps 1 - 7:

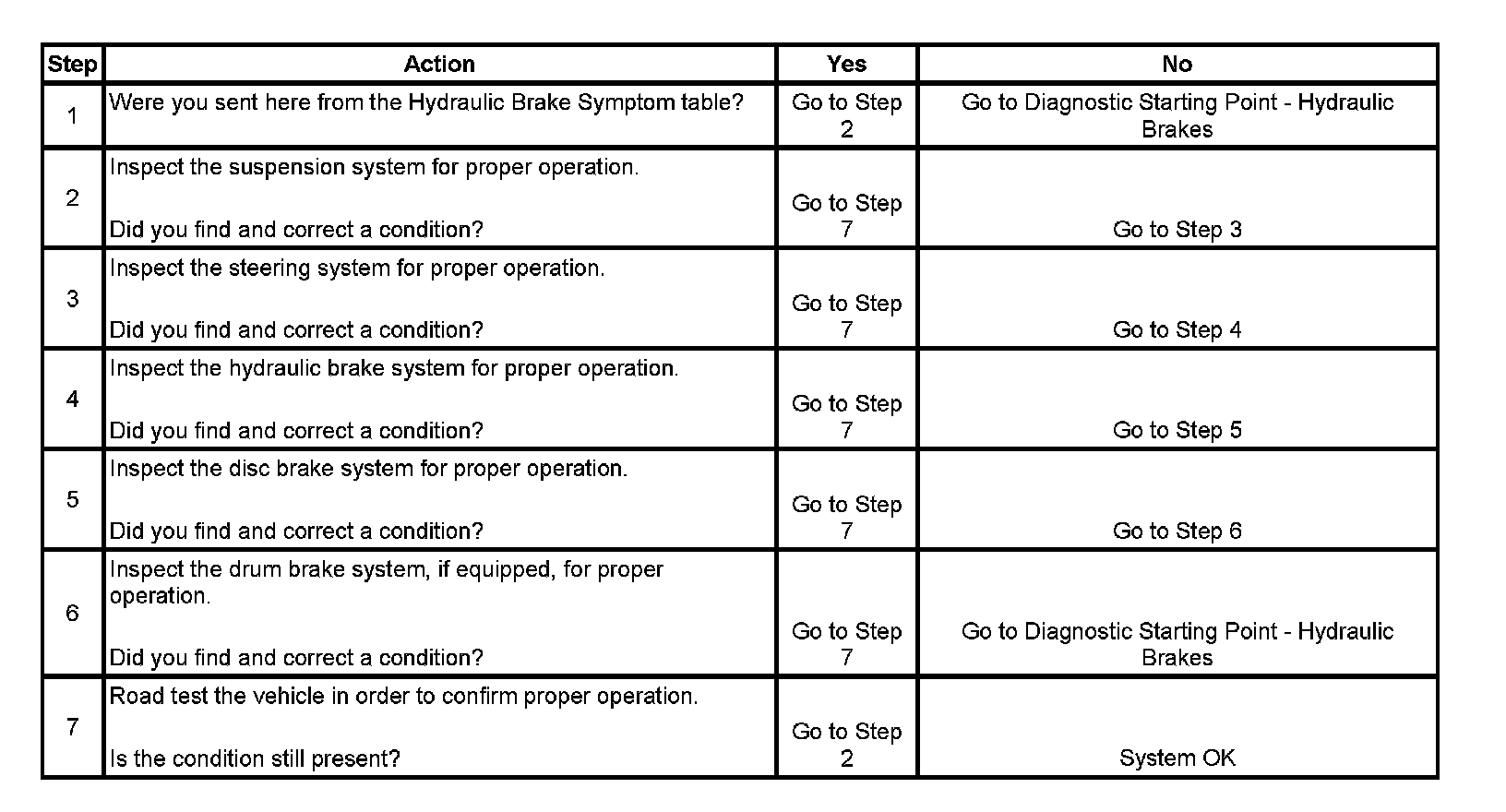

These numbers refer to the step numbers on the diagnostic table:
2. Suspension components that are not operating properly may cause a disturbance to the vehicle during application of the brake system.
3. Steering components that are not operating properly may cause a disturbance to the vehicle during application of the brake system.
