Hydraulic Brake System Diagnosis
Hydraulic Brake System Diagnosis

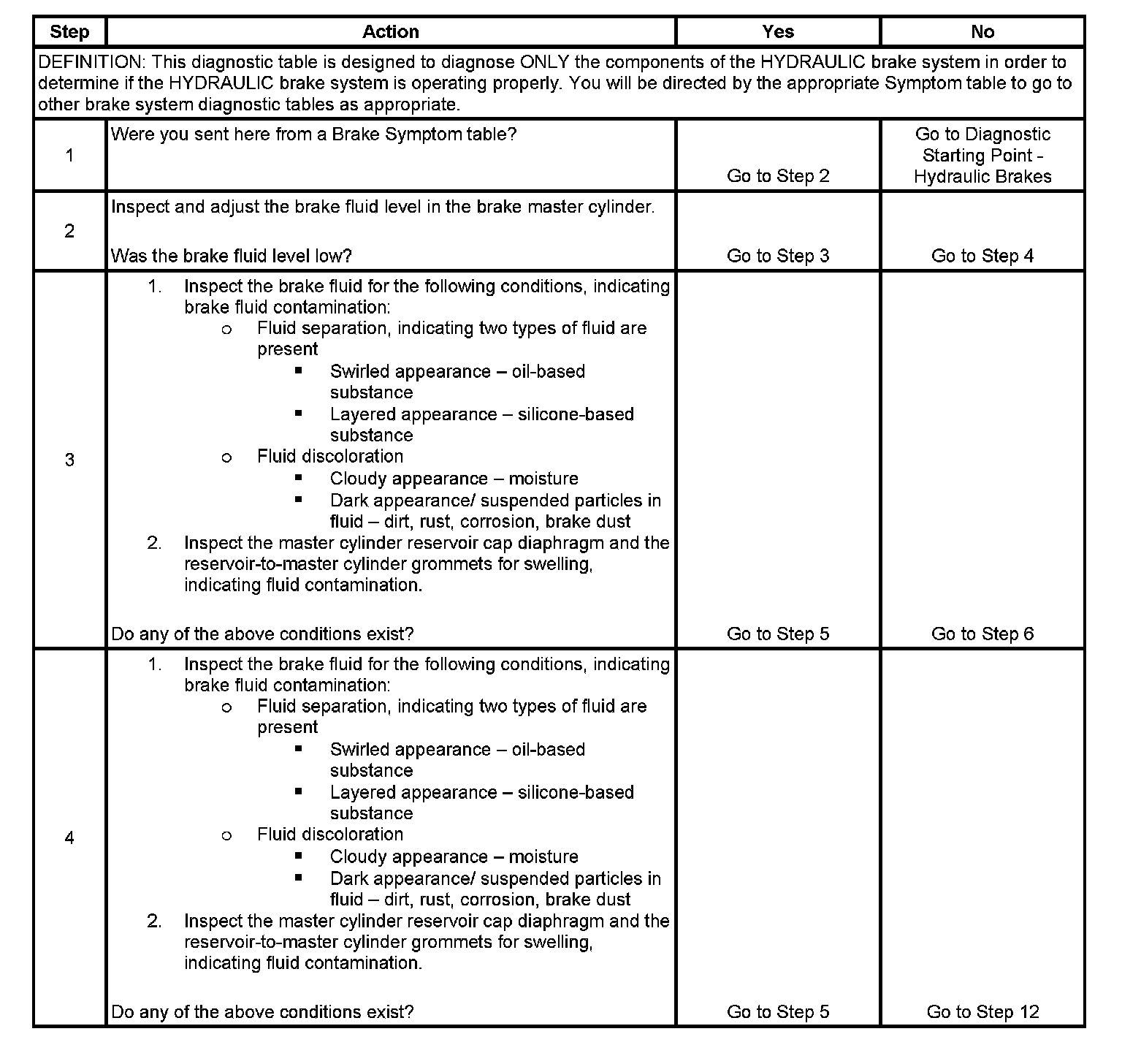

Steps 1 - 4:

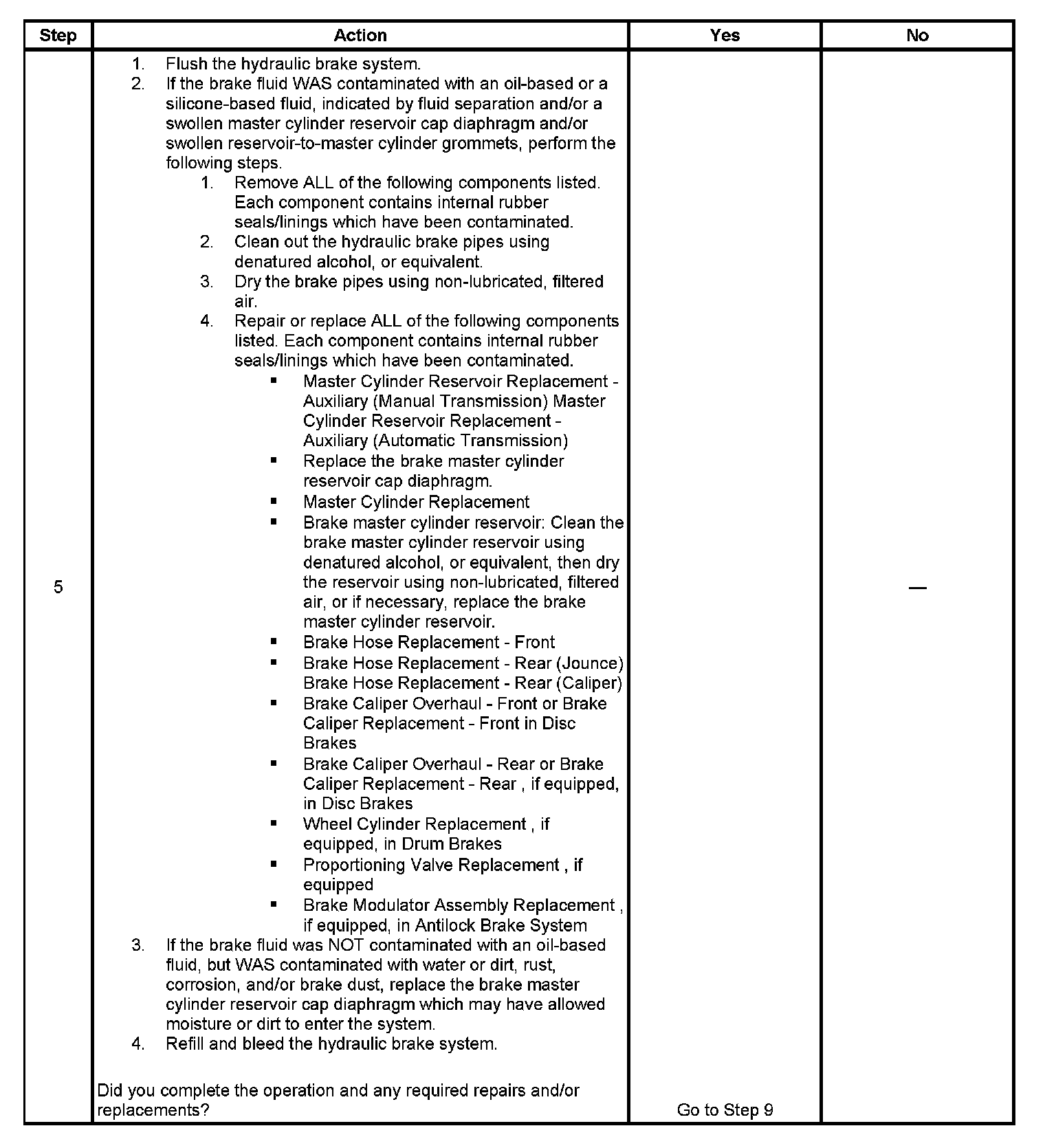

Step 5:

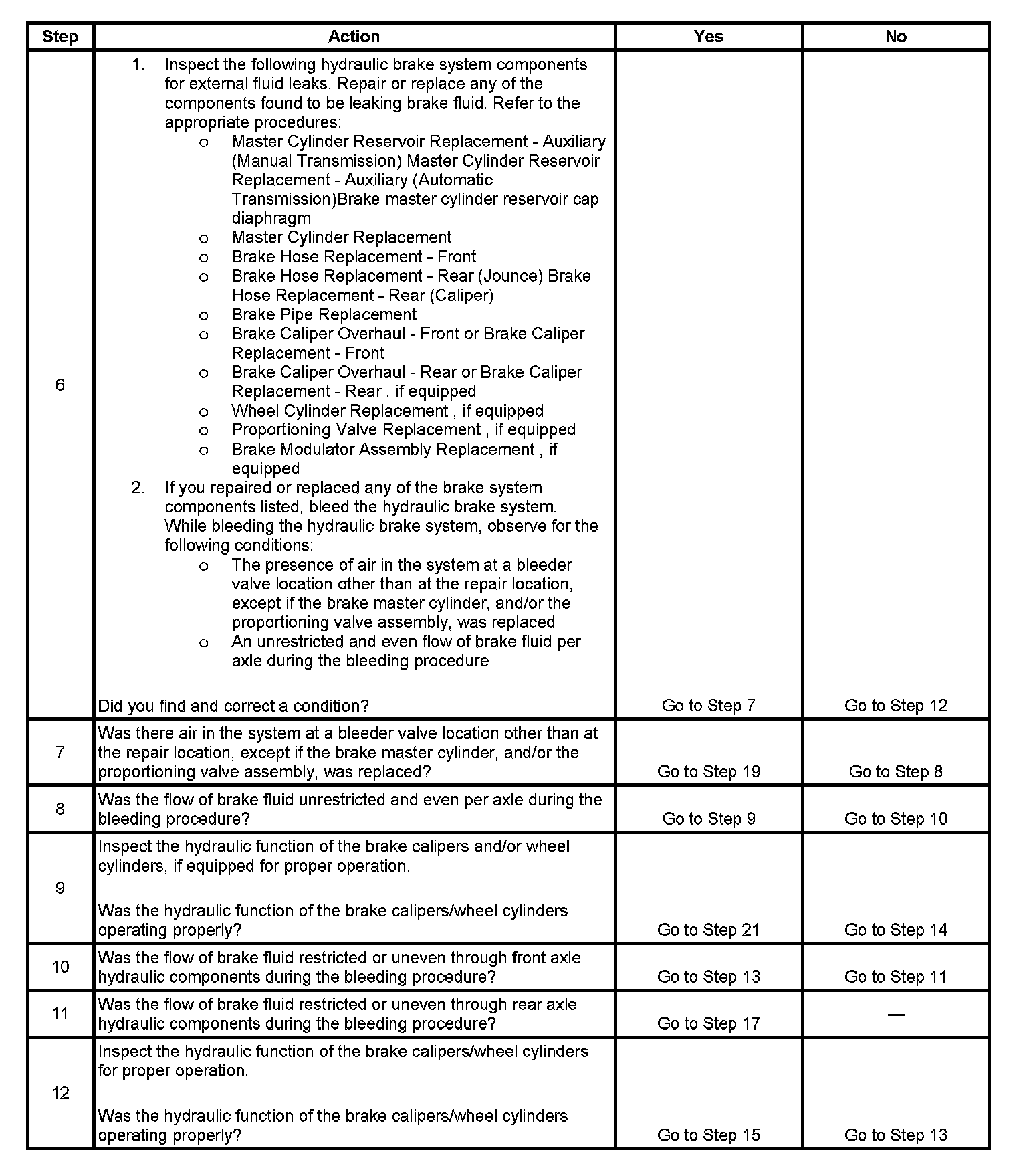

Steps 6 - 12:

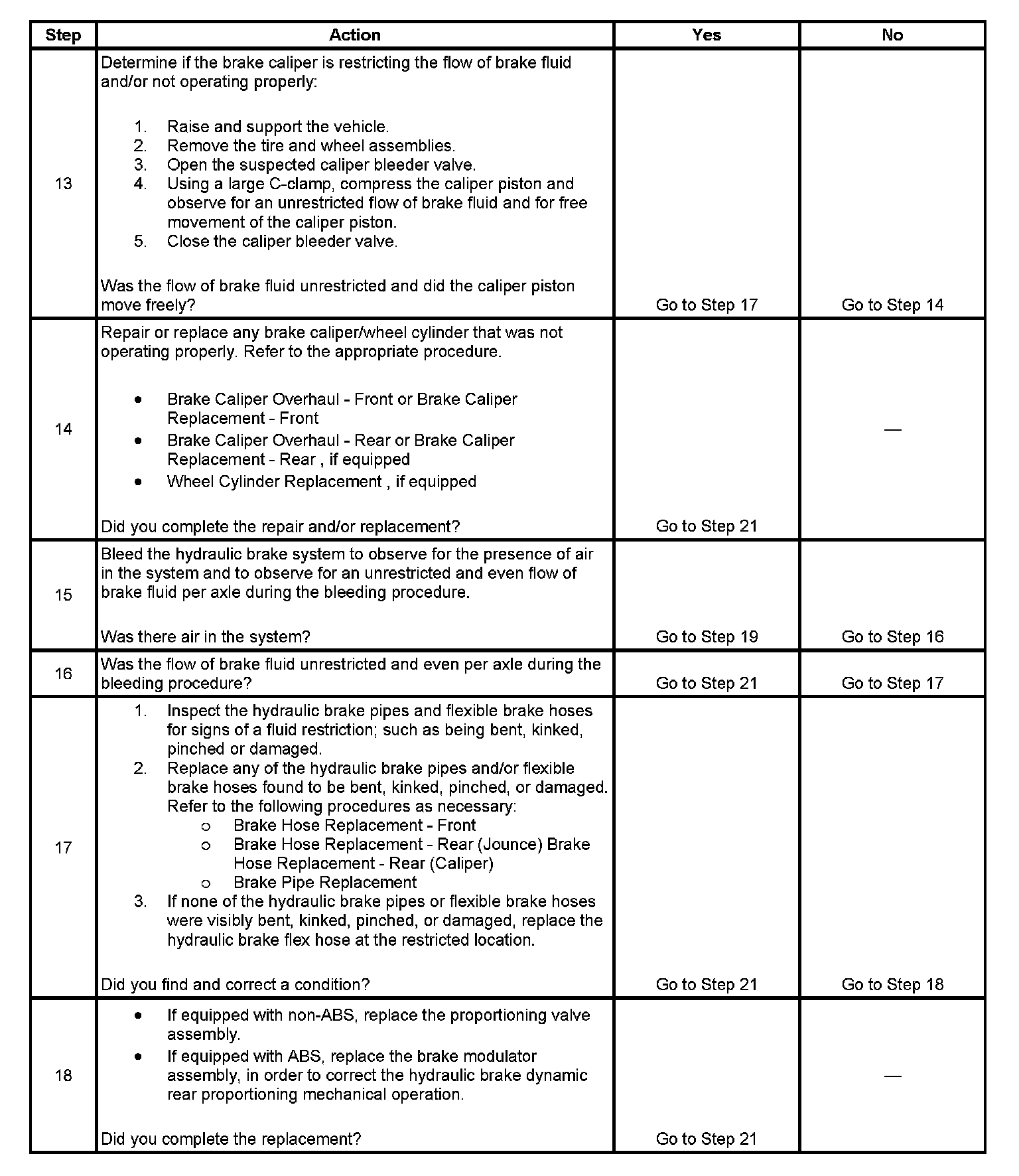

Steps 13 - 18:

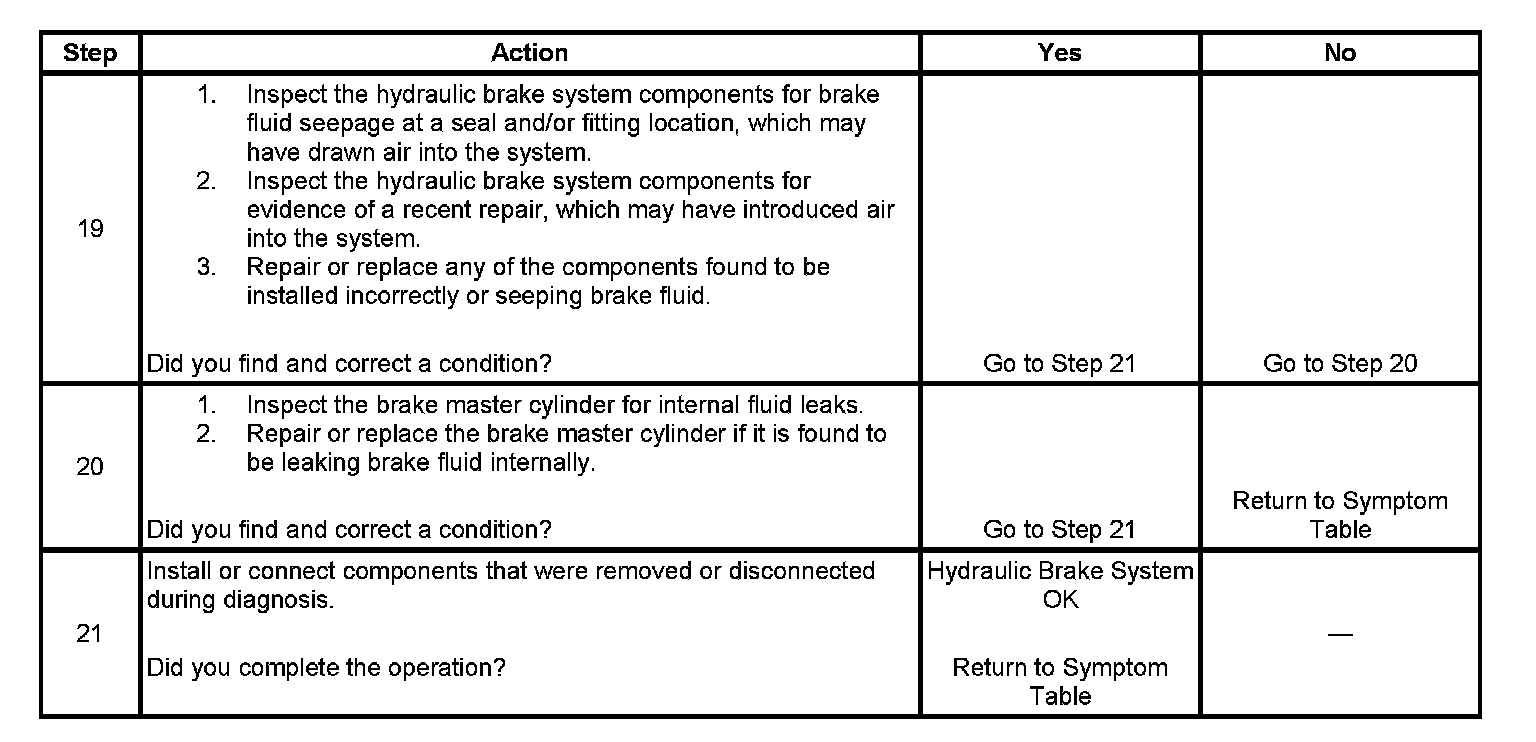

Steps 19 - 21:
Hydraulic Brake System Diagnosis
