Drum Brake System Diagnosis

Drum Brake System Diagnosis

Test Description

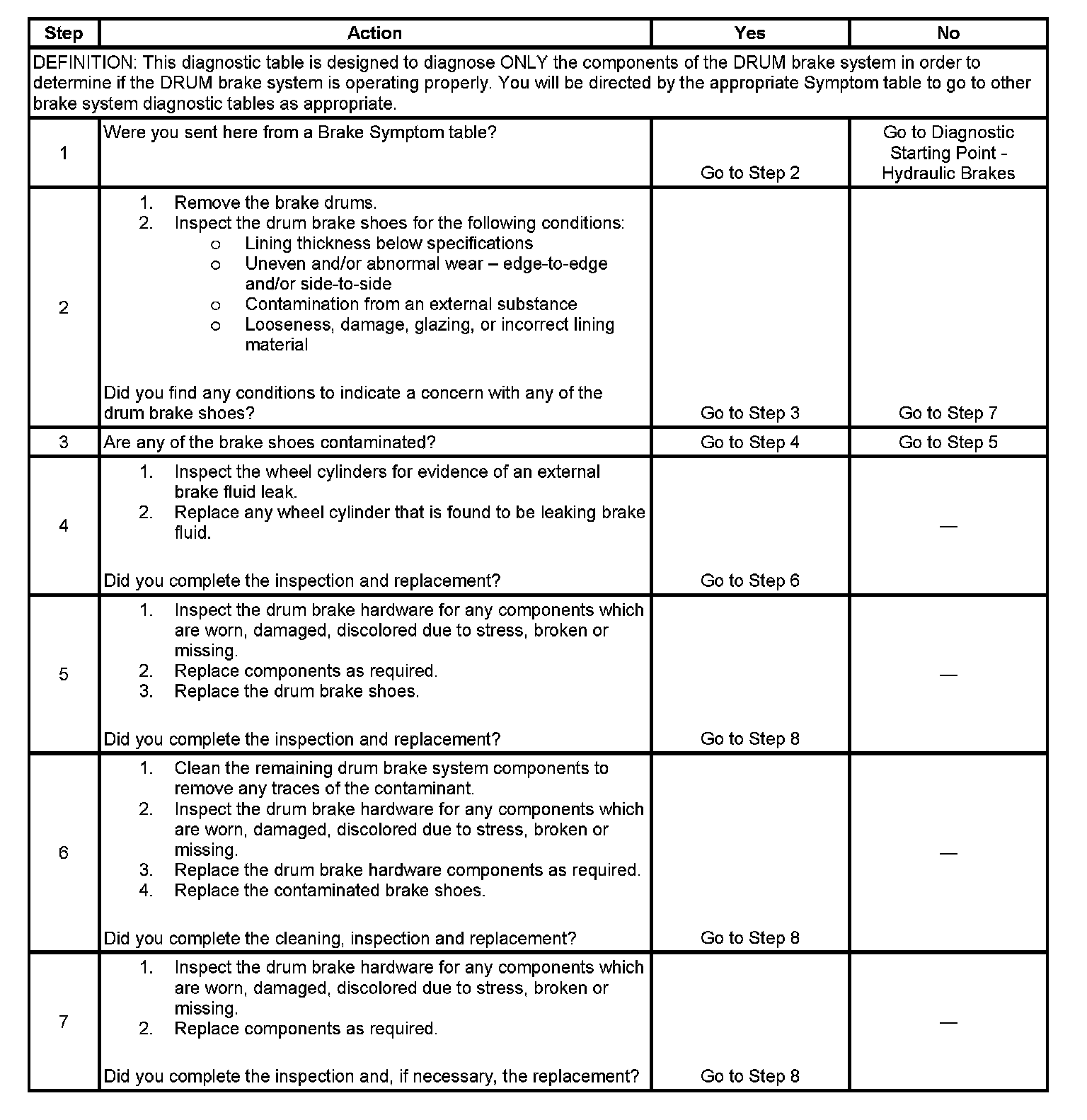

Steps 1 - 7:

Steps 8 - 11:

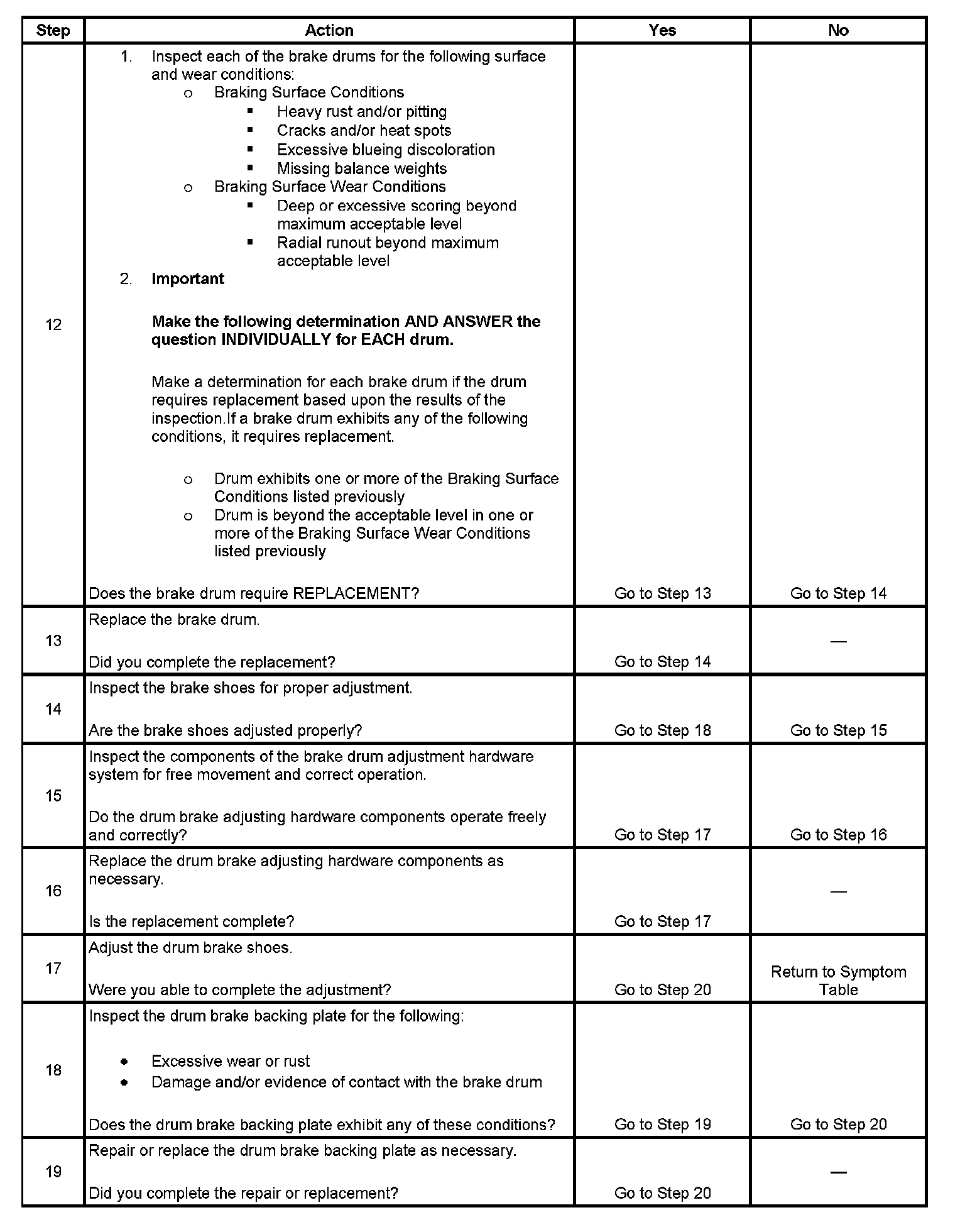

Steps 12 - 19:

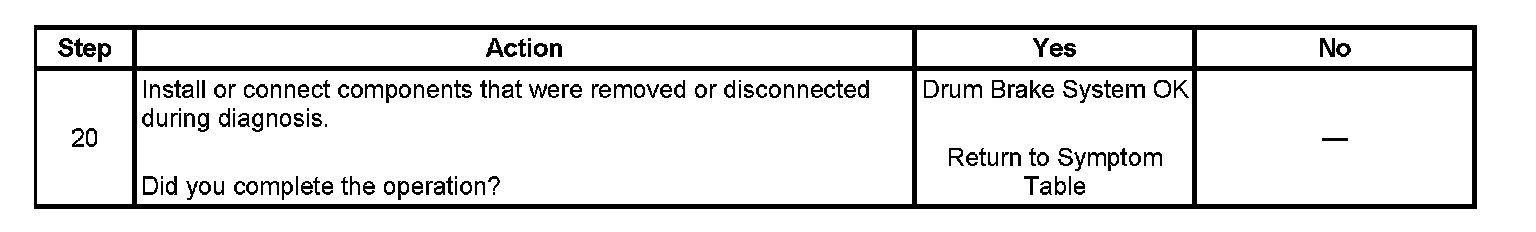

Step 20:

This number refers to the step number on the diagnostic table:
18. Drum brake backing plates that come in contact with brake drums may cause brake system noise.
