Window Channel Replacement - Front Side Rear

Window Channel Replacement - Front Side Rear

Removal Procedure

1. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door (Service and Repair) .
2. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door Service and Repair
3. Remove the front door window. Refer to Window Replacement - Front Door (Service and Repair) .

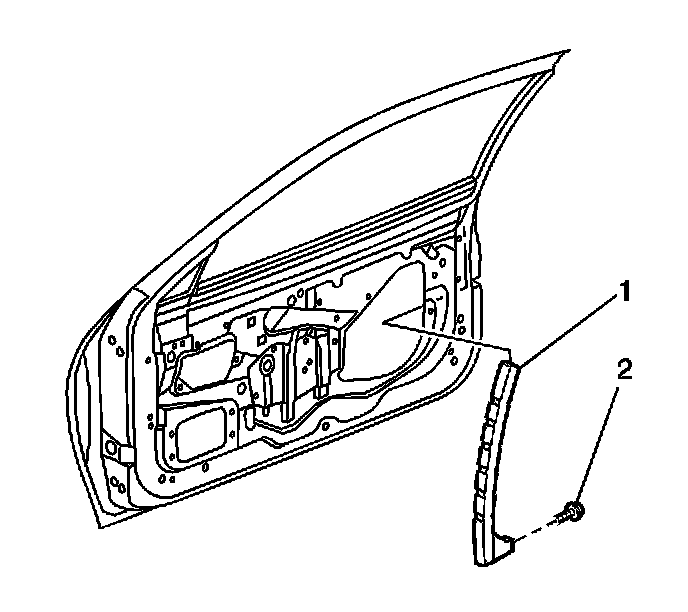

4. Remove the bolt from the rear channel.
5. Remove the window rear channel from the front door.



Installation Procedure





1. Position the rear run channel (1) in the front door.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the window rear channel bolt.

Tighten the lower window channel bolt to 6 N.m (53 lb in).

3. Install the front door window . Refer to Window Replacement - Front Door (Service and Repair) .
4. Install the front door water deflector. Refer to Water Deflector Replacement - Front Door Service and Repair
5. Install the front door trim panel. Refer to Trim Panel Replacement - Side Front Door (Service and Repair) .
