Instrument Panel Cluster (IPC) - Lamp Replacement



Instrument Cluster Lamp Replacement

Removal Procedure

1. Remove the instrument panel cluster.

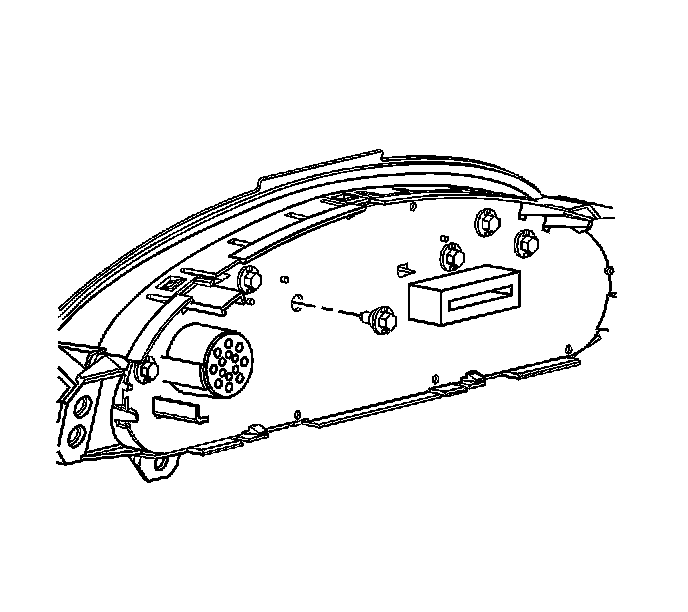

2. Remove the cluster lamp.



Installation Procedure





1. Install the cluster lamp.
2. Install the instrument panel cluster.
