Fuel Filler Pocket Replacement

Fuel Filler Pocket Replacement

Removal Procedure

1. Remove the quarter outer panel. Refer to Quarter Panel Replacement - Bolt-On (Coupe) () .




2. Remove the gas cap with the safety strap from the filler pocket.

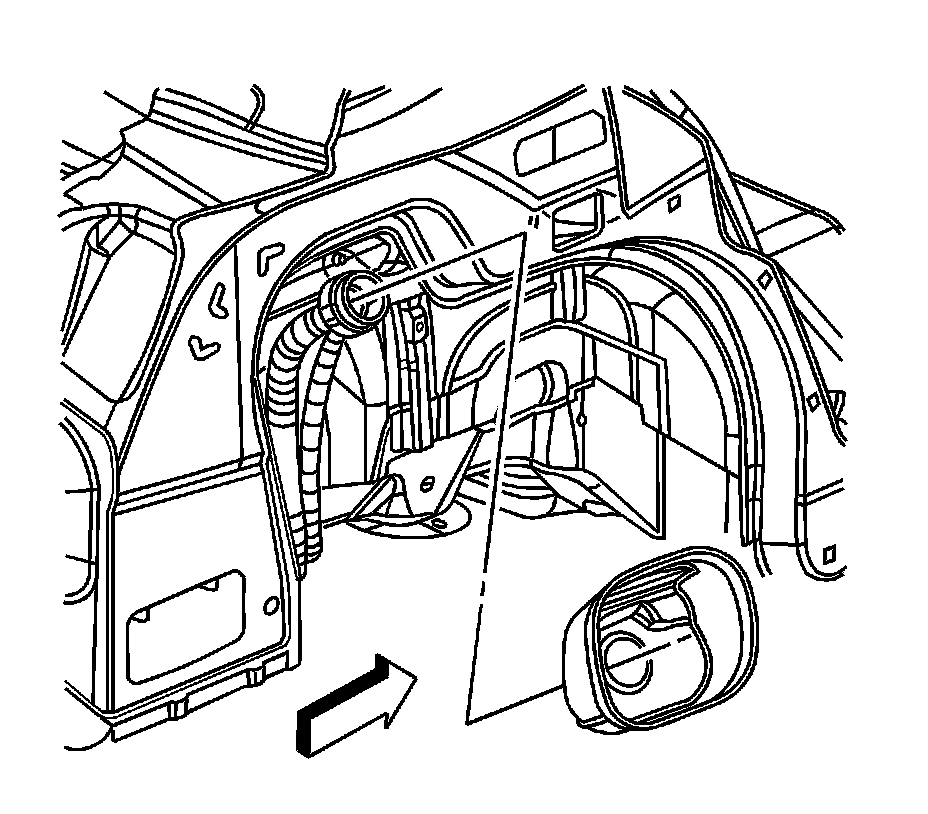

3. Remove the fuel tank filler pocket by sliding off the fuel filter neck.



Installation Procedure





1. Install the fuel tank filler pocket over the filler neck.
2. Install the gas cap and attach the safety strap.
3. Install the quarter outer panel. Refer to Quarter Panel Replacement - Bolt-On (Coupe) () .
