Home >> Saturn >> 2004 >> L Series V6-3.0L VIN R >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Wipers Inoperative - One or More Modes

Wipers Inoperative - One or More Modes

Steps 1-15:

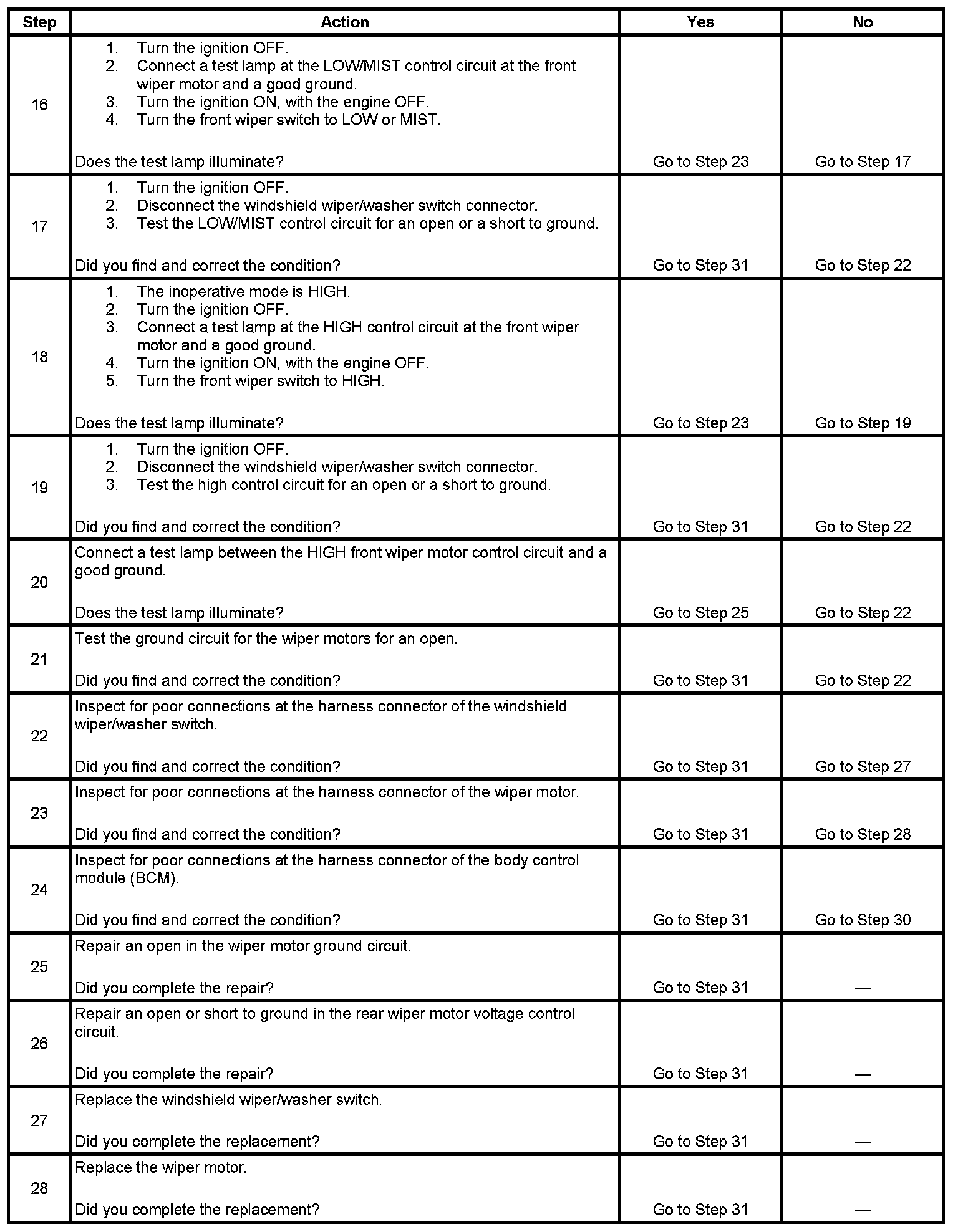

Steps 16-28:

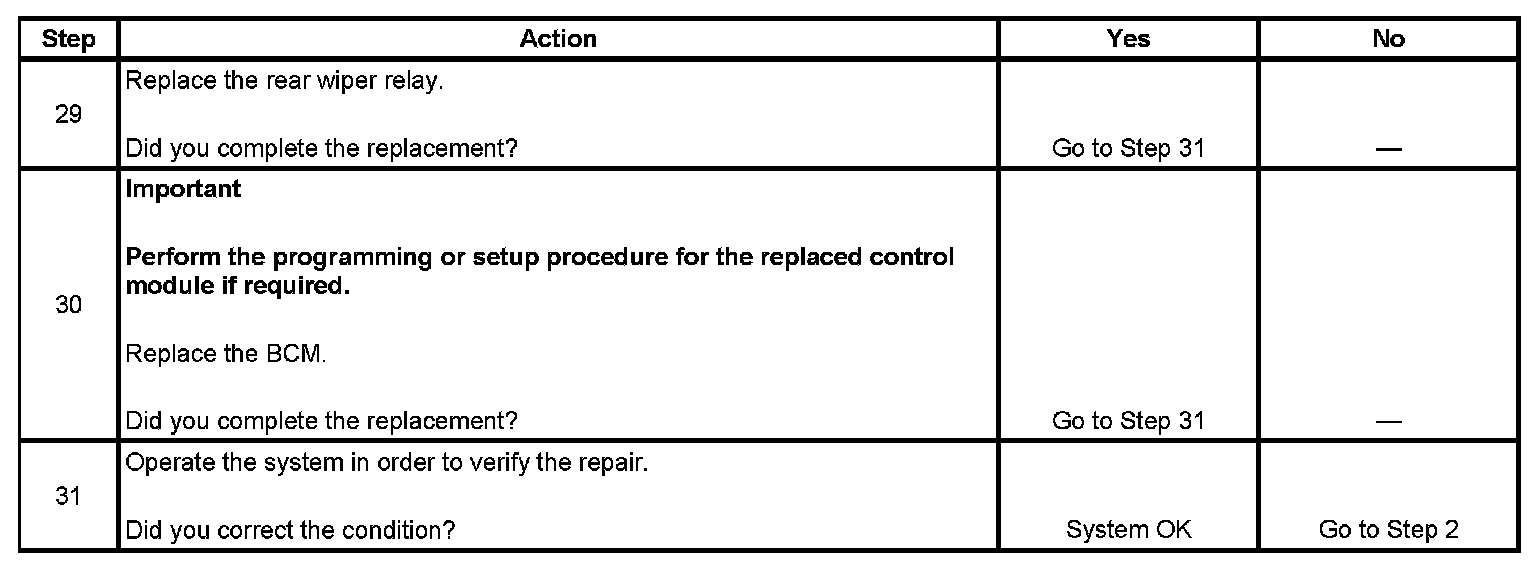

Steps 29-31:
