74. Reverse Input and Second Roller Clutch Assemble

Reverse Input and Second Roller Clutch Assemble

Tools Required
^ J23327 Clutch Spring Compressor
^ J41232 Return Spring Compressor
^ J41233 Inner Seal Installer

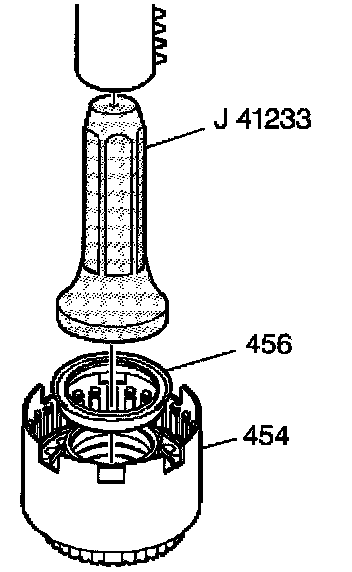

1. If the reverse clutch inner seal assembly (456) was damaged and removed, install a new reverse clutch inner seal assembly (456). Use the J41233.
2. Assemble the reverse clutch piston and seal assembly (456). In order to aid in the assembly, lubricate the seal with transmission fluid.
3. Assemble the reverse clutch return spring and retainer assembly (458) with the smaller outside diameter down.

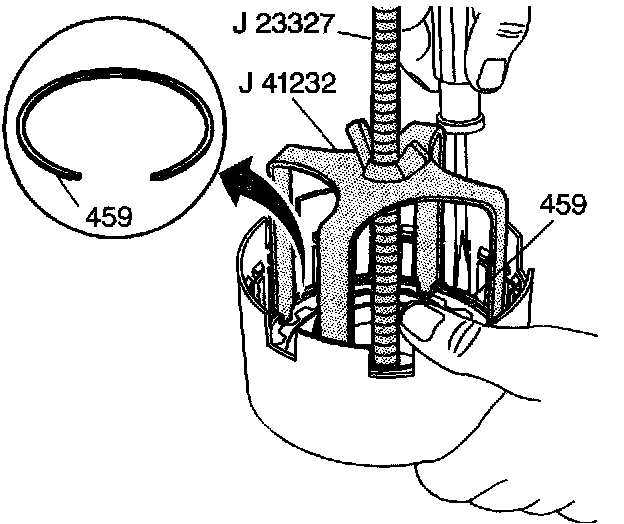

4. Compress the reverse clutch return spring. Use the J41232 and J23327.
5. Assemble the return spring snap ring (459).
6. Remove the J41232 and J23327.

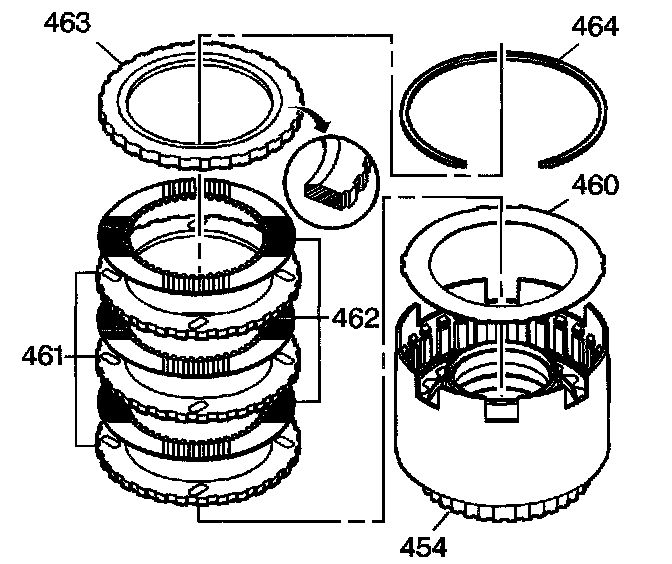

7. Assemble the wave plate (460).
8. Assemble the three steel plates (461) and the three new fiber plates (462) in alternating order beginning with a steel plate (461).

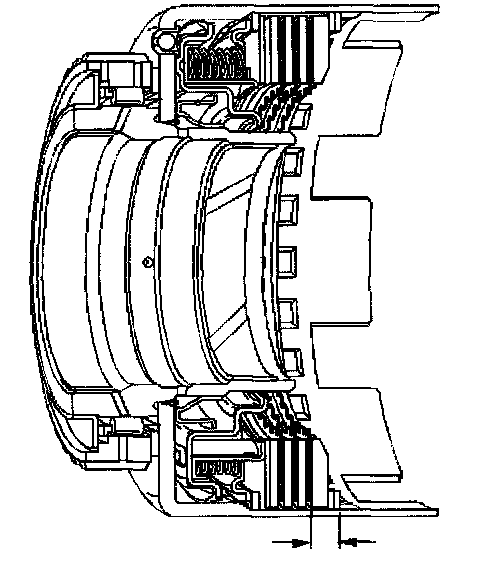

9. Measure the distance between the top of the snap ring groove and the top friction plate (record measurement).
10. Assemble the reverse clutch backing plate with the beveled edge up.
11. Assemble the snap ring in the reverse clutch housing in order to retain the reverse clutch plates.
