36. Torque Converter Seal Removal

Torque Converter Seal Removal

Tools Required
^ J41103 Torque Converter Seal Remover Set
^ J41103-1 Torque Converter Seal Puller Legs
^ J41103-2Torque Converter Seal Puller Bridge
^ J41103-3 Torque Converter Seal Support Body

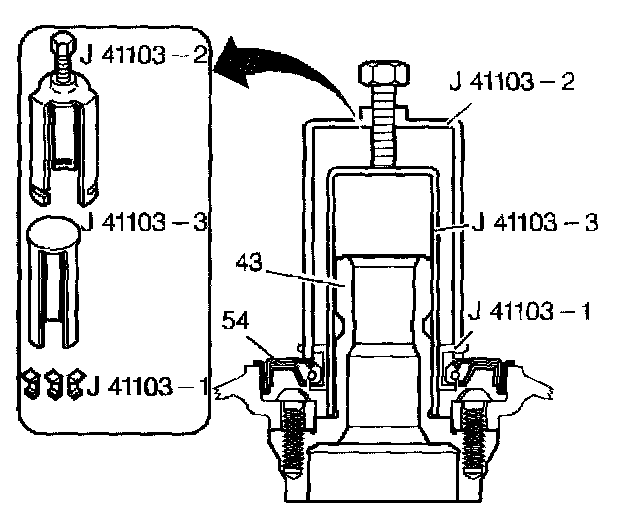

1. Insert the three J41103-1 puller legs under the Torque Converter Seal (54).
2. Insert the J41103-3 support body over the stator shaft (43).
3. Insert the J41103-2 puller bridge over the J41103-3 support body. Connect the J41103-1 puller legs into the slots on the J41103-2 bridge.

Important: The puller legs will damage the torque converter seal (54). Discard the torque converter seal (54) after removal.

4. Tighten the forcing screw on the J41103-2 puller bridge until the J41103-1 puller legs remove the torque converter seal (54).
