Home >> Saturn >> 2004 >> L Series V6-3.0L VIN R >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> SP103 - SP191 >> Splice Pack SP464

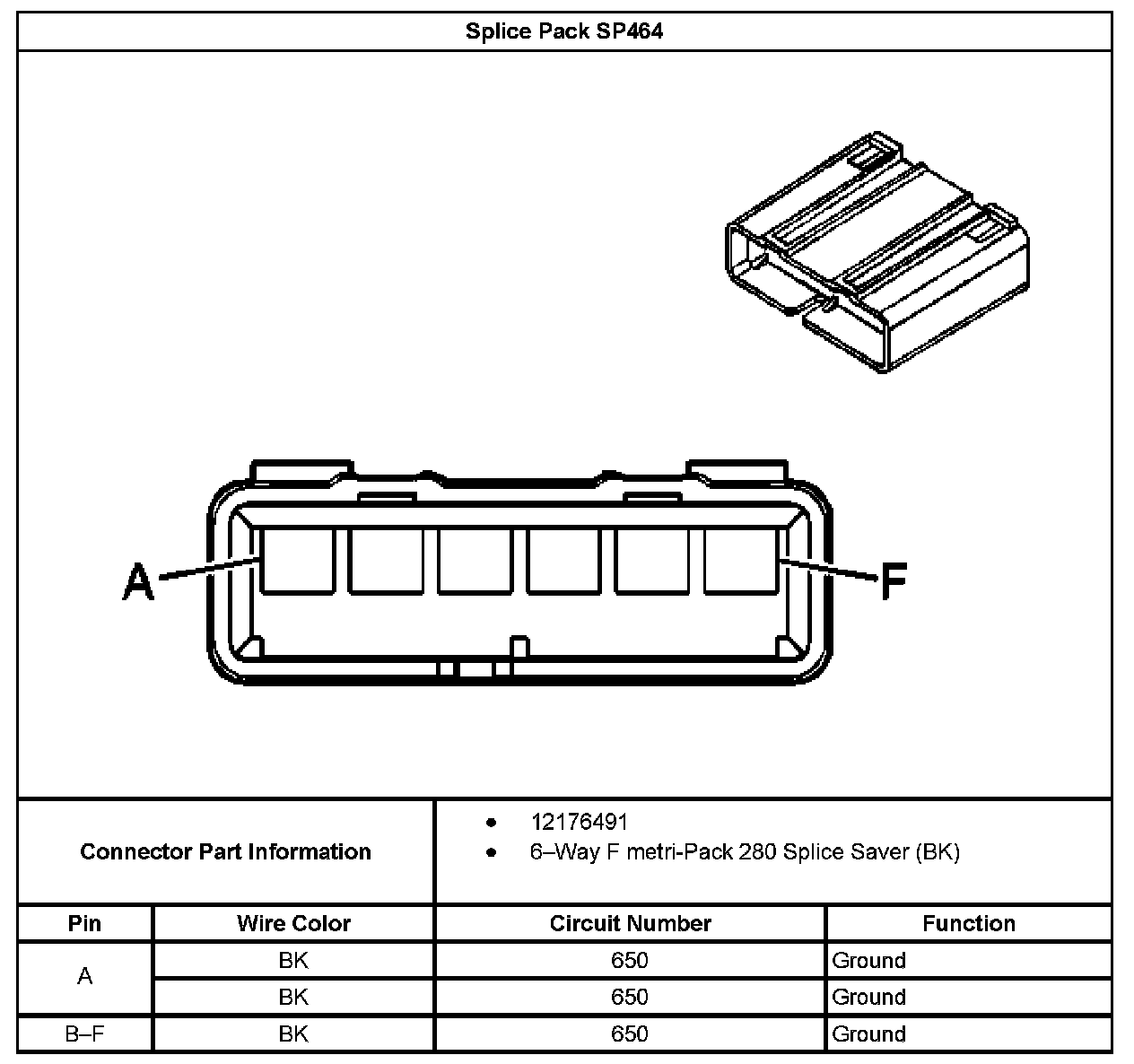

Splice Pack SP464

Splice Pack SP464:
