Home >> Saturn >> 2004 >> L Series V6-3.0L VIN R >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> C301 - C800 >> C493 Liftgate To Body Harness (Wagon)

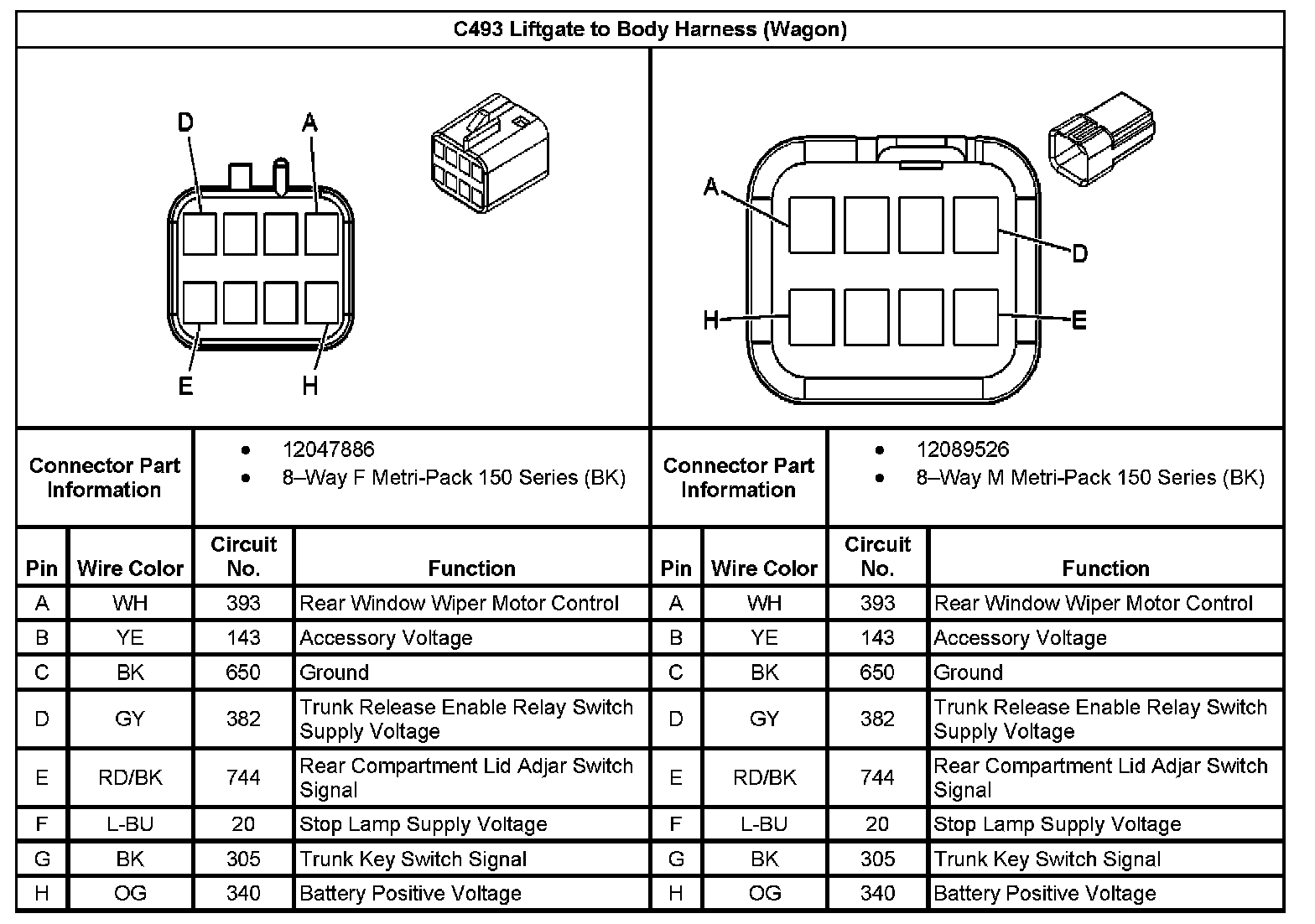

C493 Liftgate To Body Harness (Wagon)

C493 Liftgate To Body Harness (Wagon):
