FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Saturn
>>
2004
>>
L Series V6-3.0L VIN R
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
>>
C100 - C220
>>

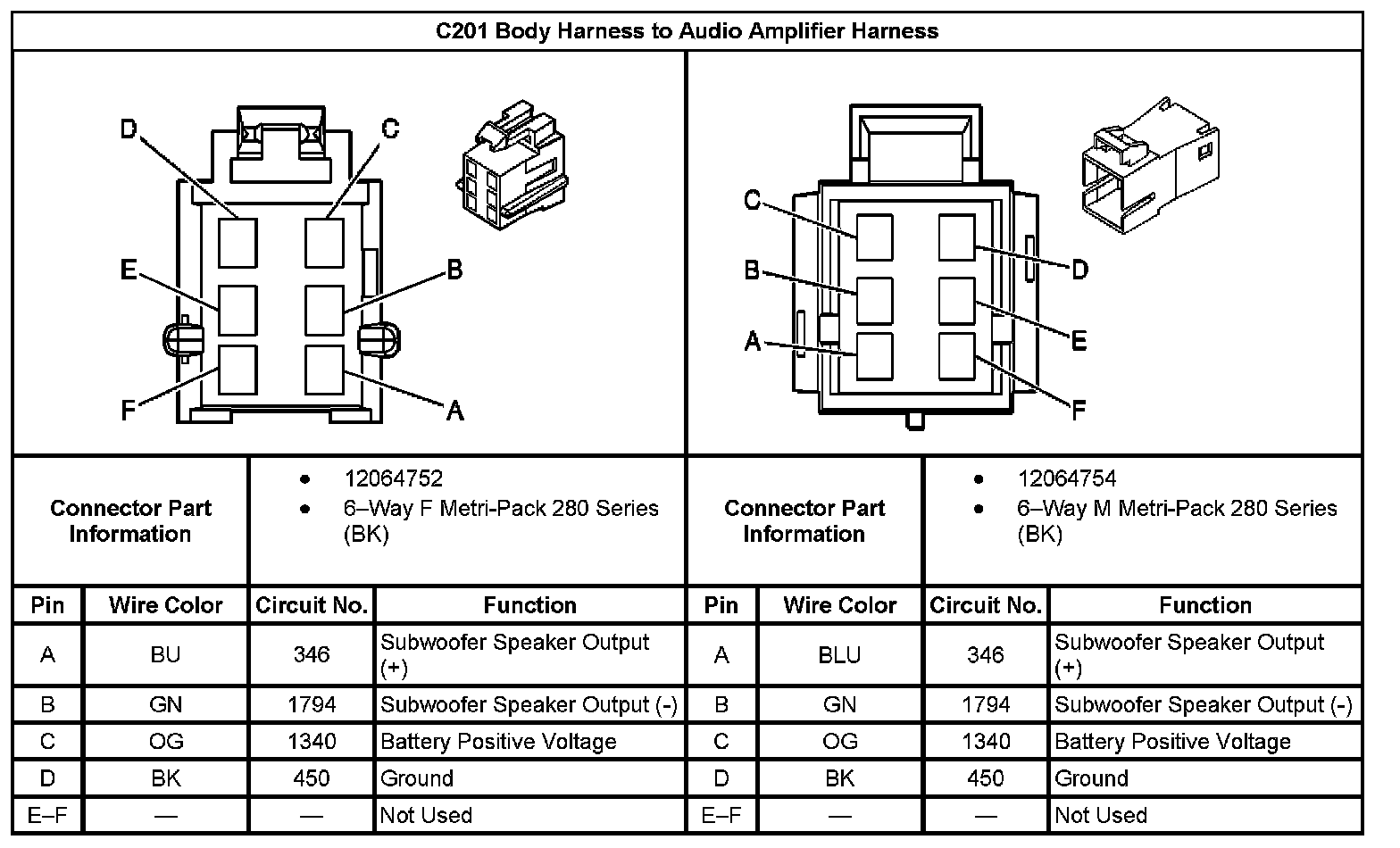

C201 Body Harness To Audio Amplifier Harness
C201 Body Harness To Audio Amplifier Harness
C201 Body Harness To Audio Amplifier Harness:
