C102 Forward Lamp Harness To Right Headlamp Harness

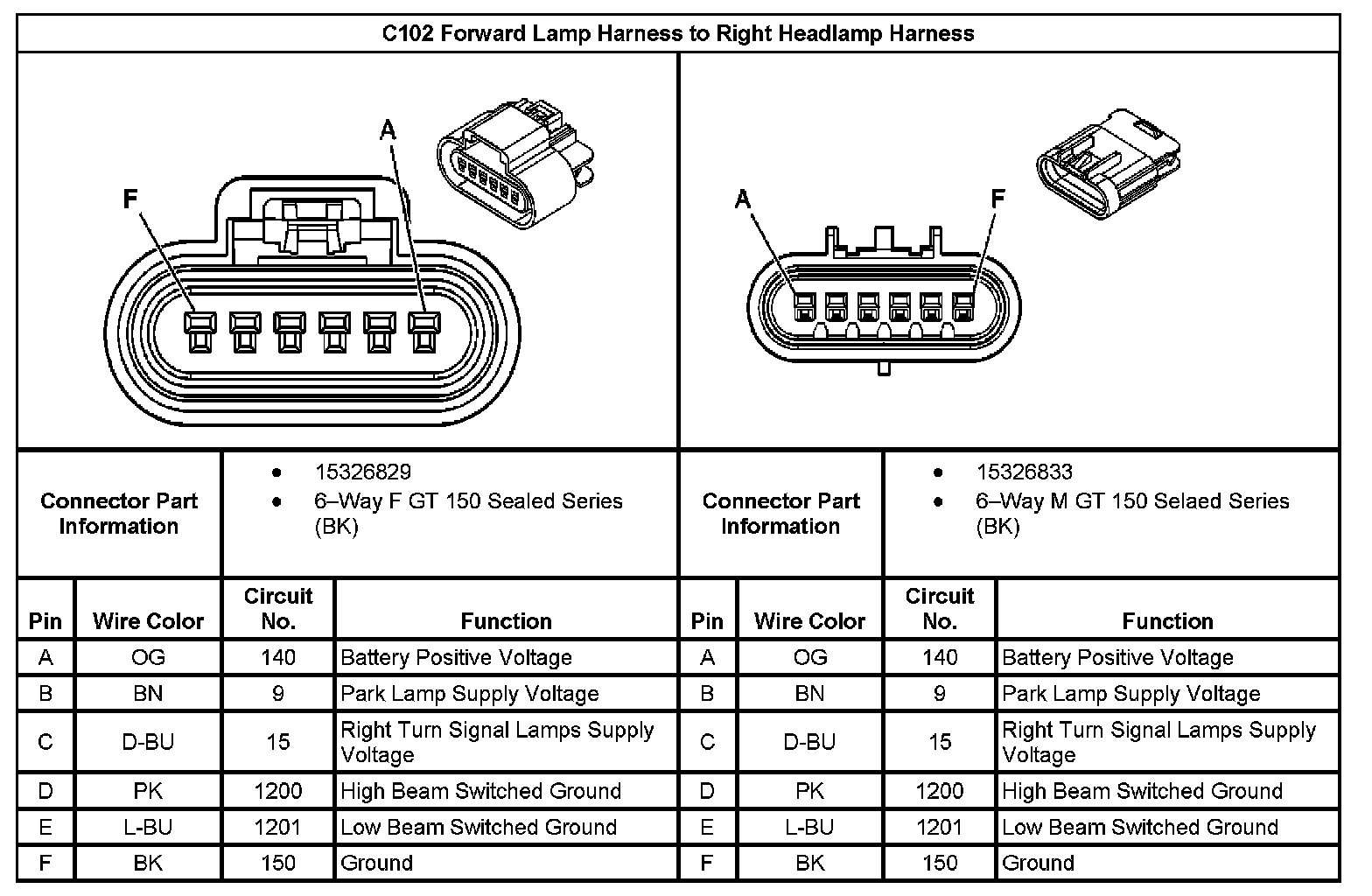

C102 Forward Lamp Harness To Right Headlamp Harness:
