Fuse Block - Underhood - C3
Fuse Block - Underhood - C3

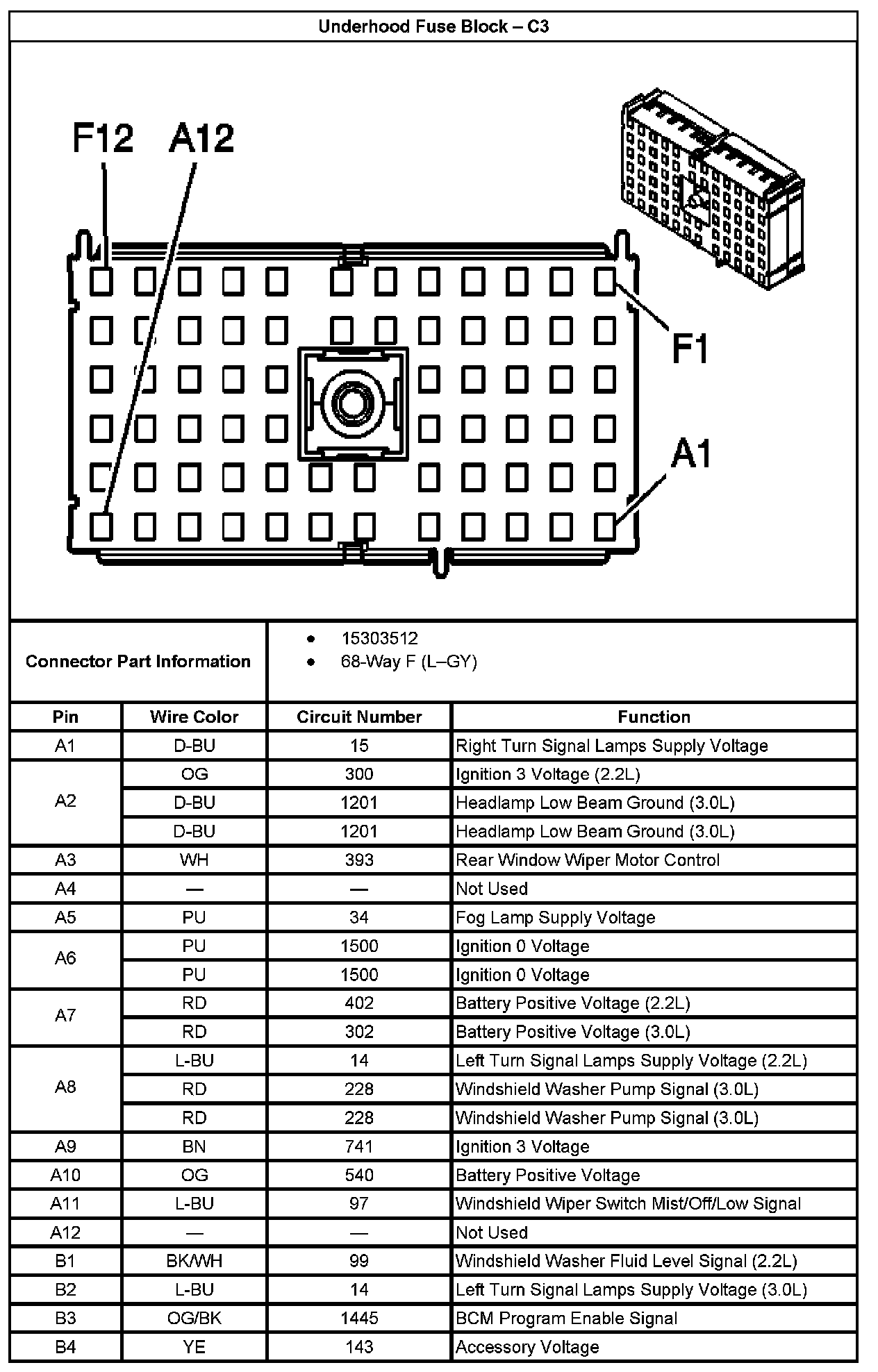

Underhood Fuse Block - C3 Part 1:

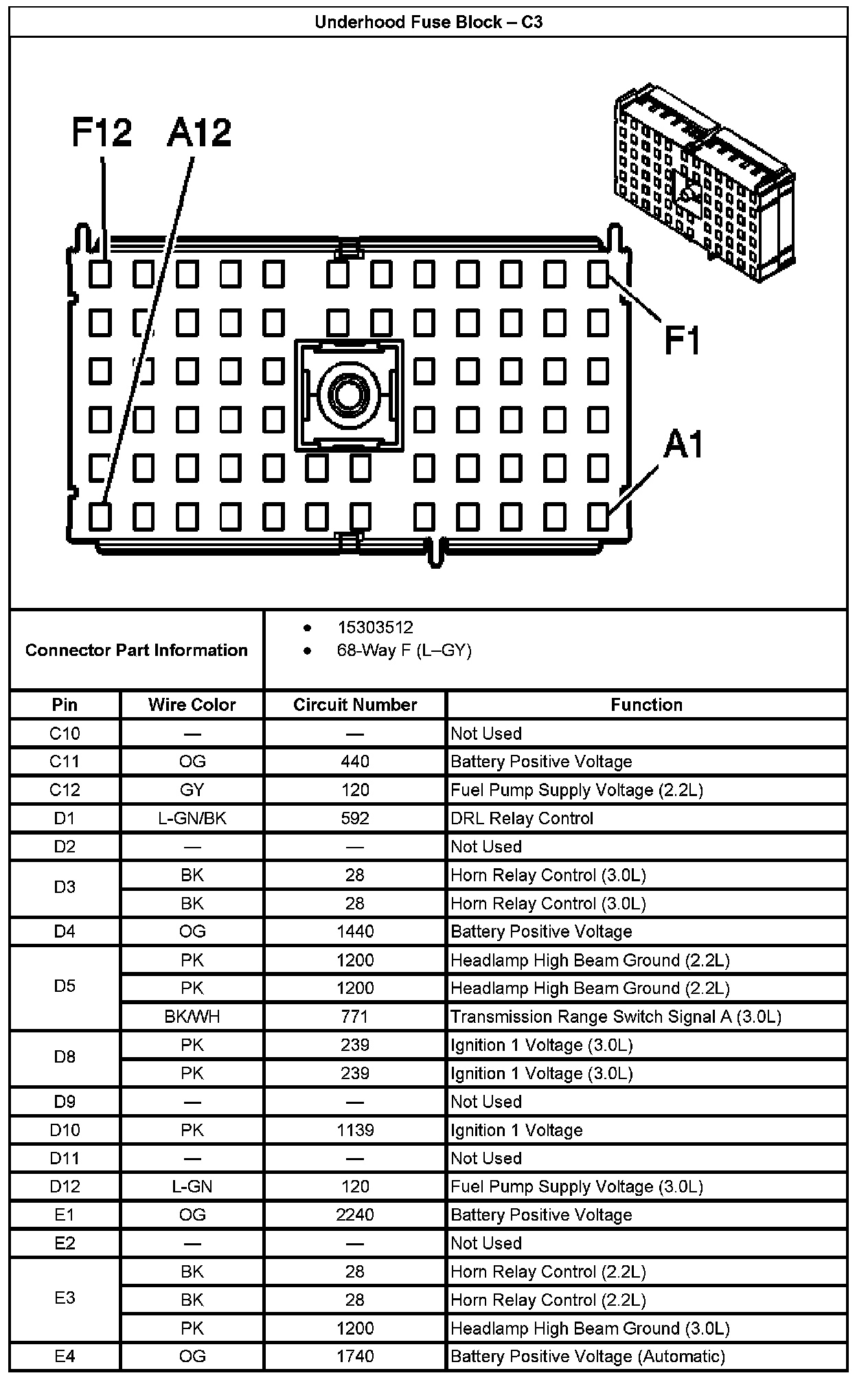

Underhood Fuse Block - C3 Part 2:

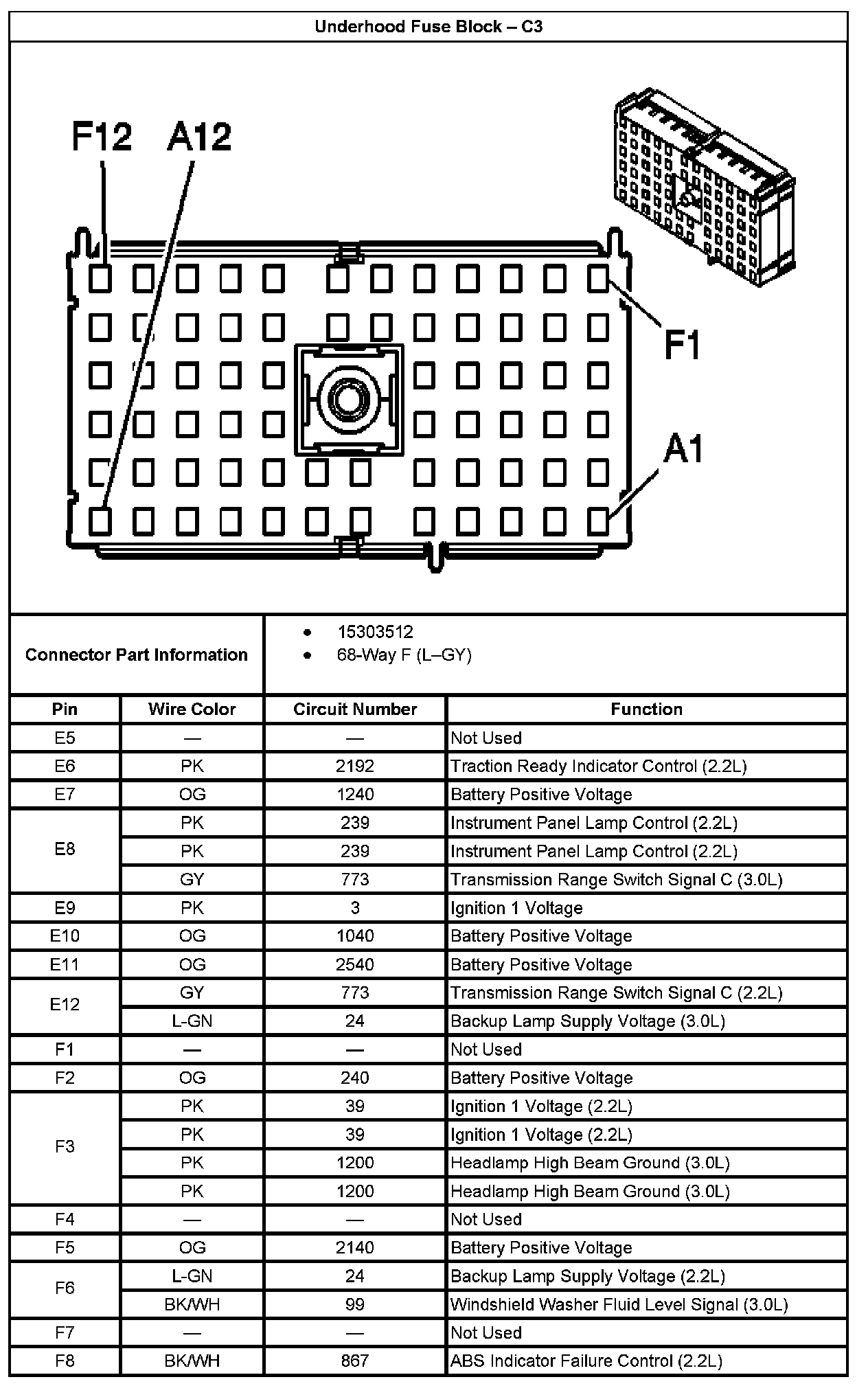

Underhood Fuse Block - C3 Part 3:

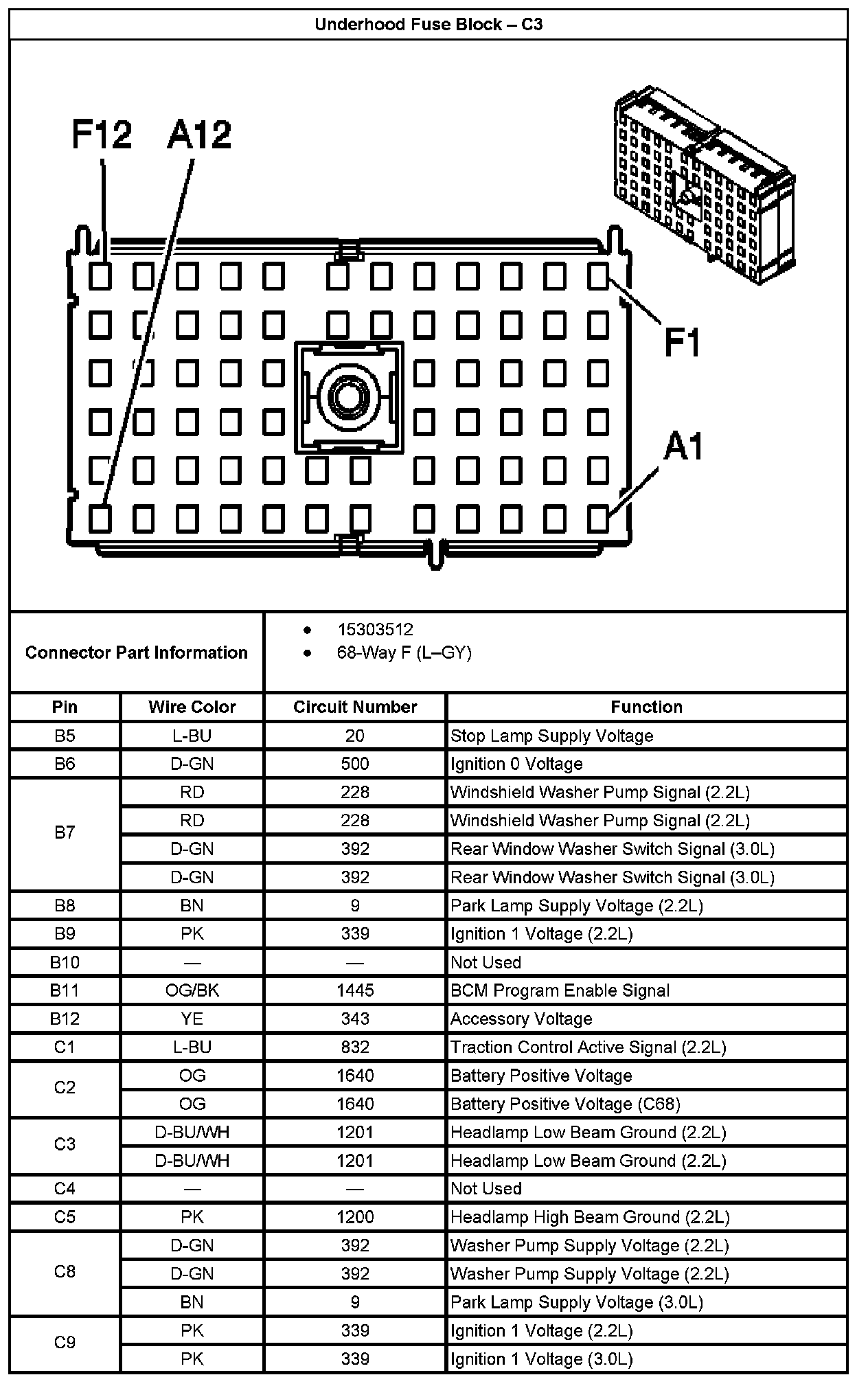

Underhood Fuse Block - C3 Part 4:

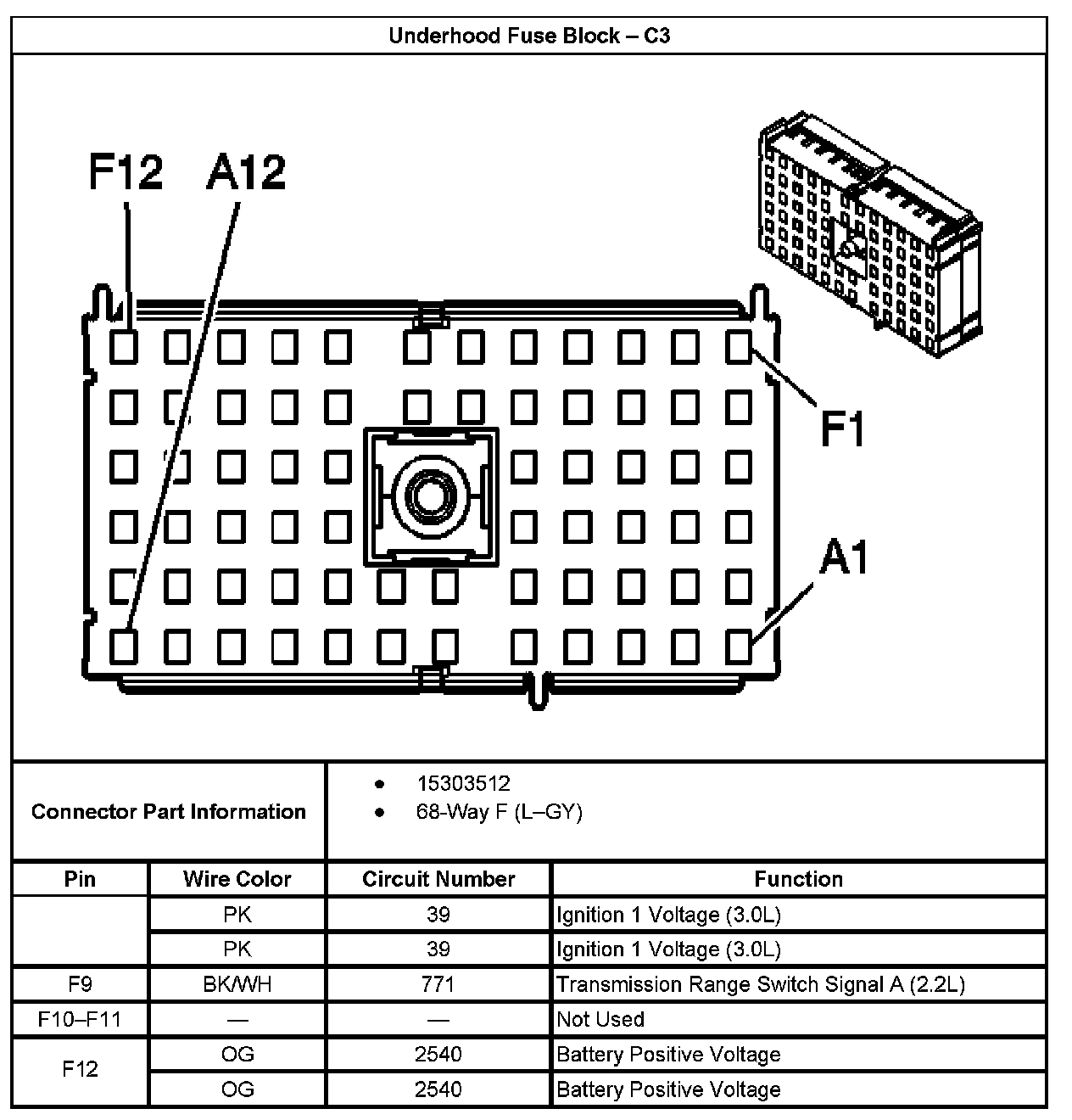

Underhood Fuse Block - C3 Part 5:
