Home >> Saturn >> 2004 >> L Series V6-3.0L VIN R >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Power Trunk / Liftgate Lock Switch >> Diagrams >> Dimmer/Rear Compartment Lid Release Switch

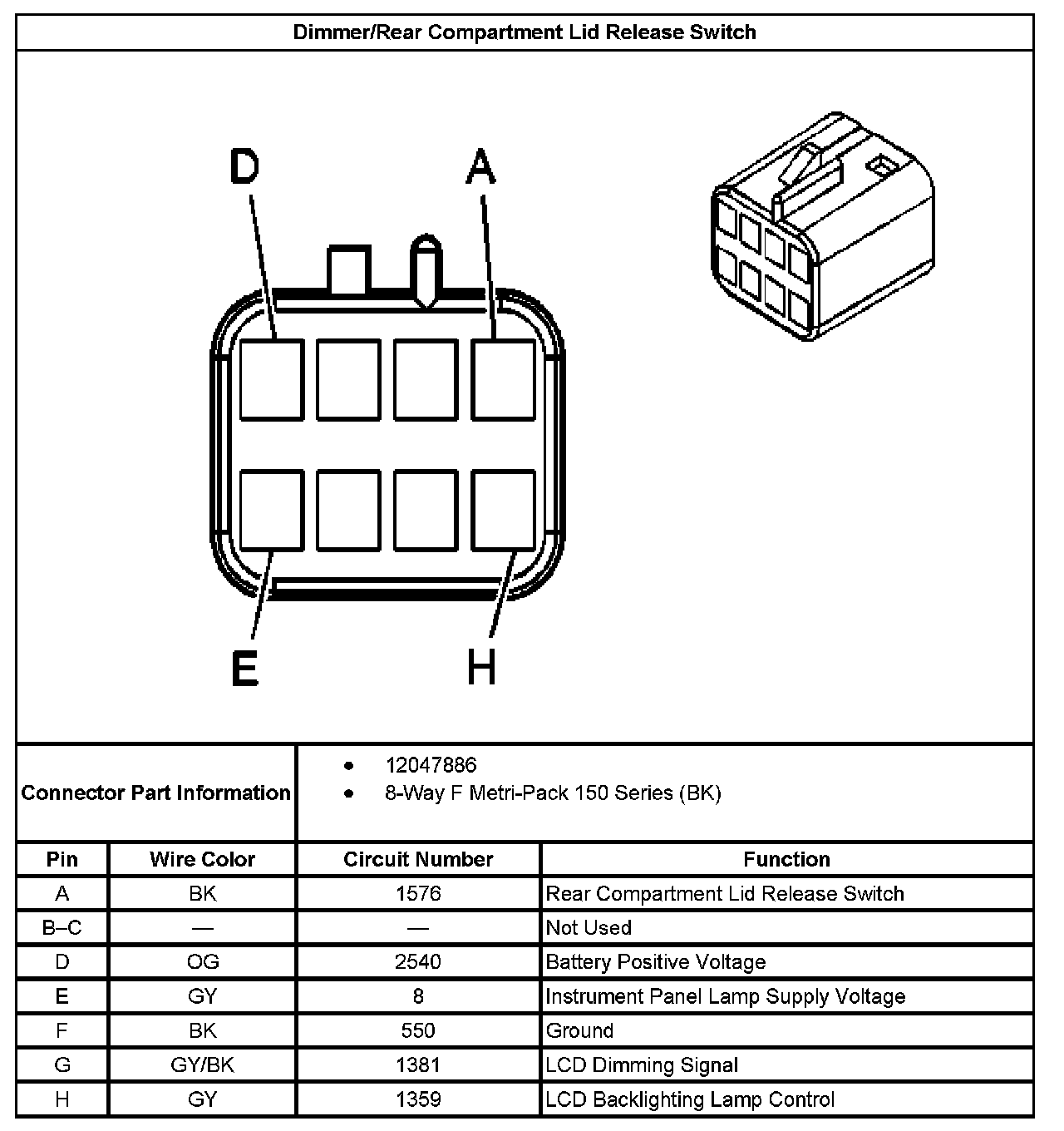

Dimmer/Rear Compartment Lid Release Switch

Dimmer/Rear Compartment Lid Release Switch:
