Home >> Saturn >> 2004 >> L Series V6-3.0L VIN R >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Power Trunk / Liftgate Lock Actuator Position Sensor >> Diagrams

Power Trunk / Liftgate Lock Actuator Position Sensor: Diagrams

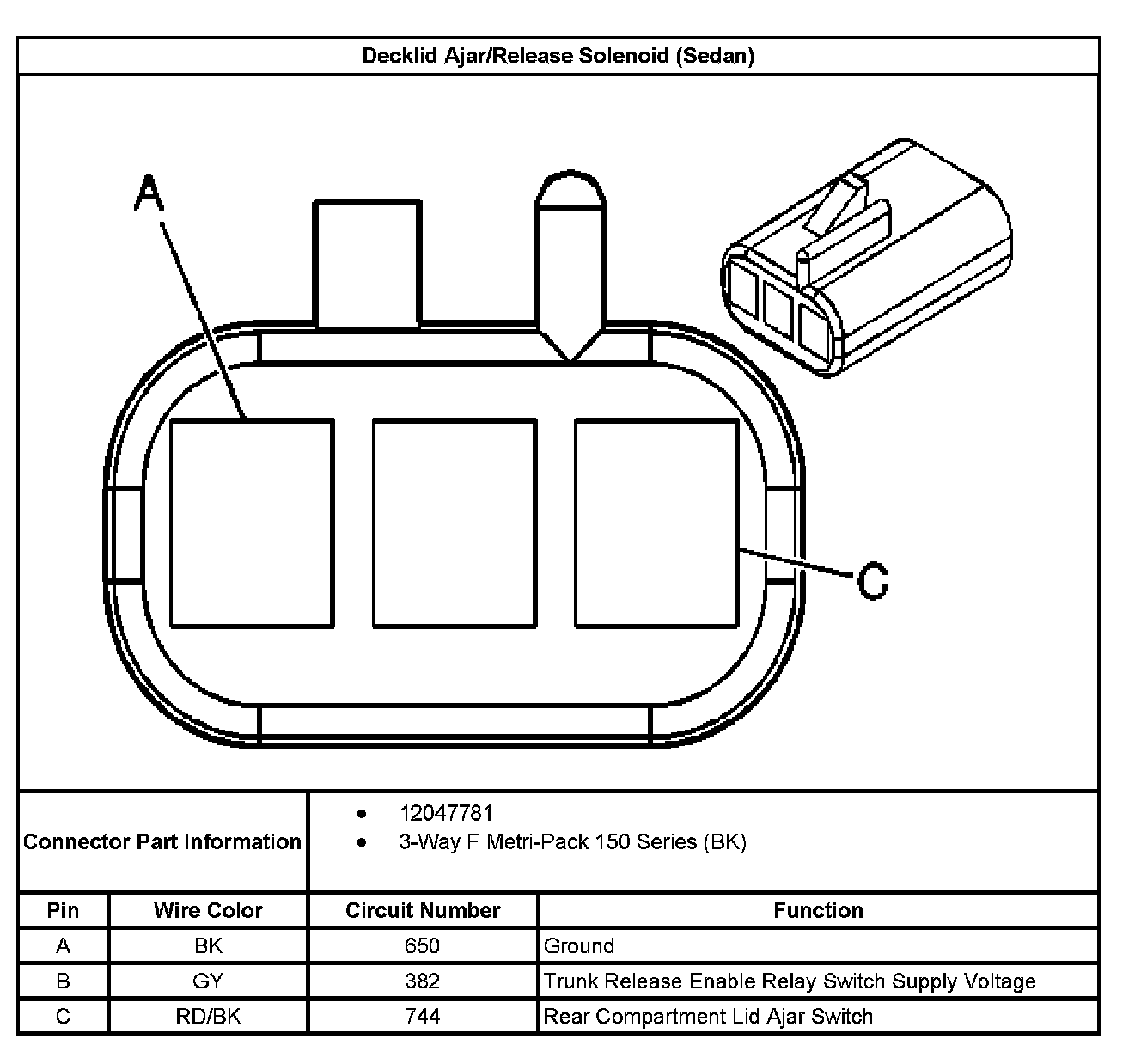

Decklid Ajar/Release Solenoid (Sedan):
