Tail Lamp Replacement (Wagon)

TAIL LAMP REPLACEMENT (WAGON)

REMOVAL PROCEDURE




1. Open the liftgate.

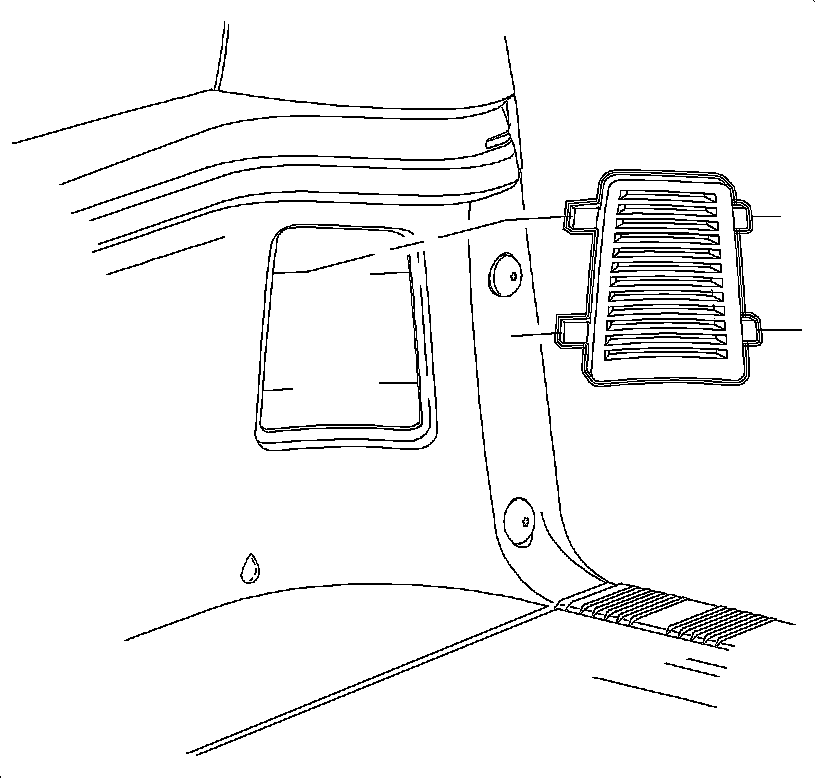

2. Remove interior rear access panel.

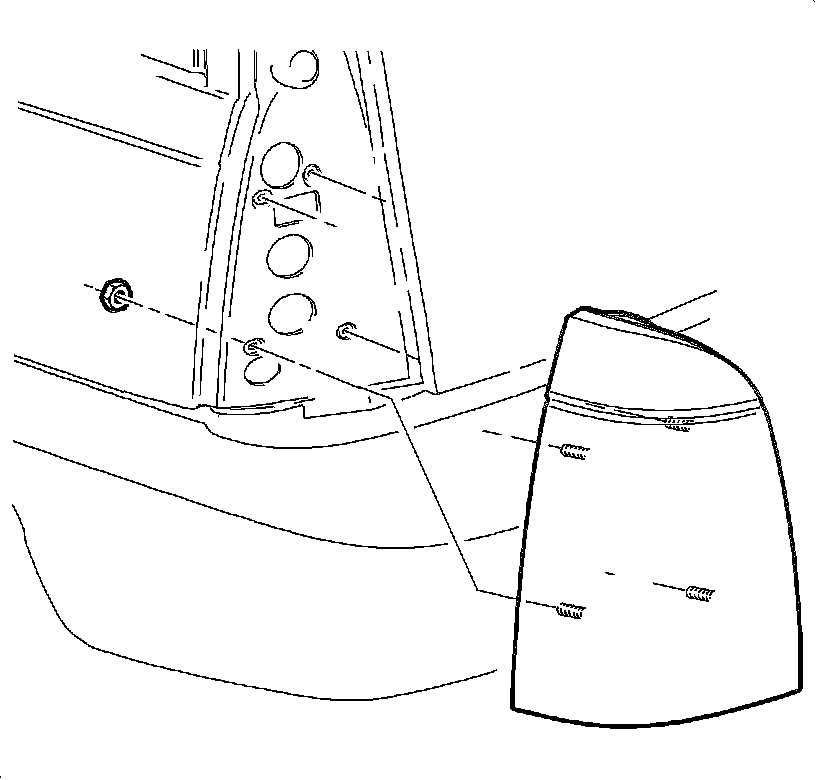

3. Remove the nuts from the tail lamp.
4. Disconnect the electrical connector from the tail lamp.
5. Remove the tail lamp by pulling straight back.

INSTALLATION PROCEDURE




1. Connect the electrical connector to the tail lamp.
2. Position the tail lamp to the quarter panel pressing in until fully seated.
3. Install the nuts to the tail lamp.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the nuts to 3.5 N.m (31 lb in).




4. Install interior access panel.
5. Close the liftgate.
