Too Hot In Vehicle

TOO HOT IN VEHICLE

TEST DESCRIPTION

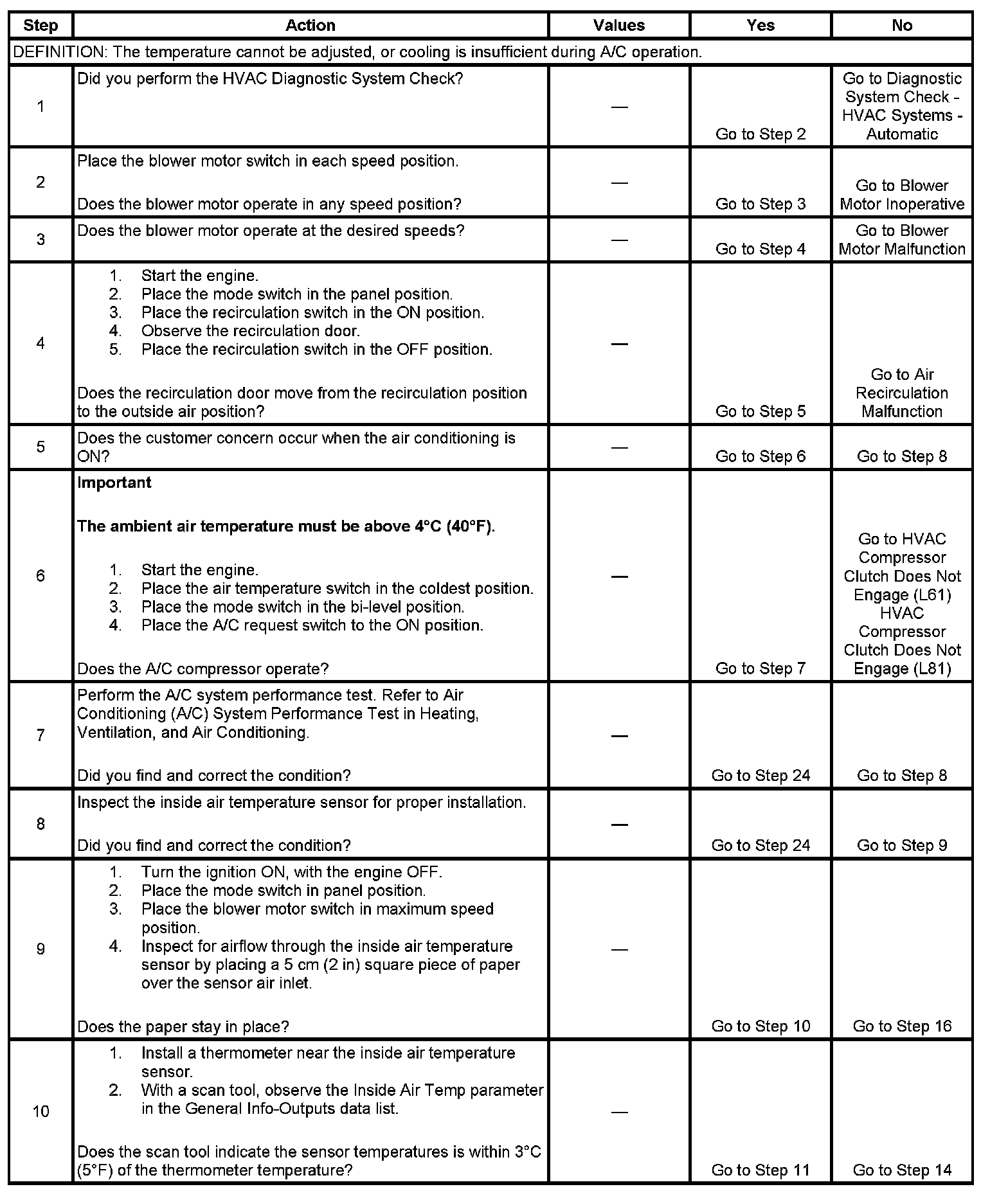

Steps 1-10:

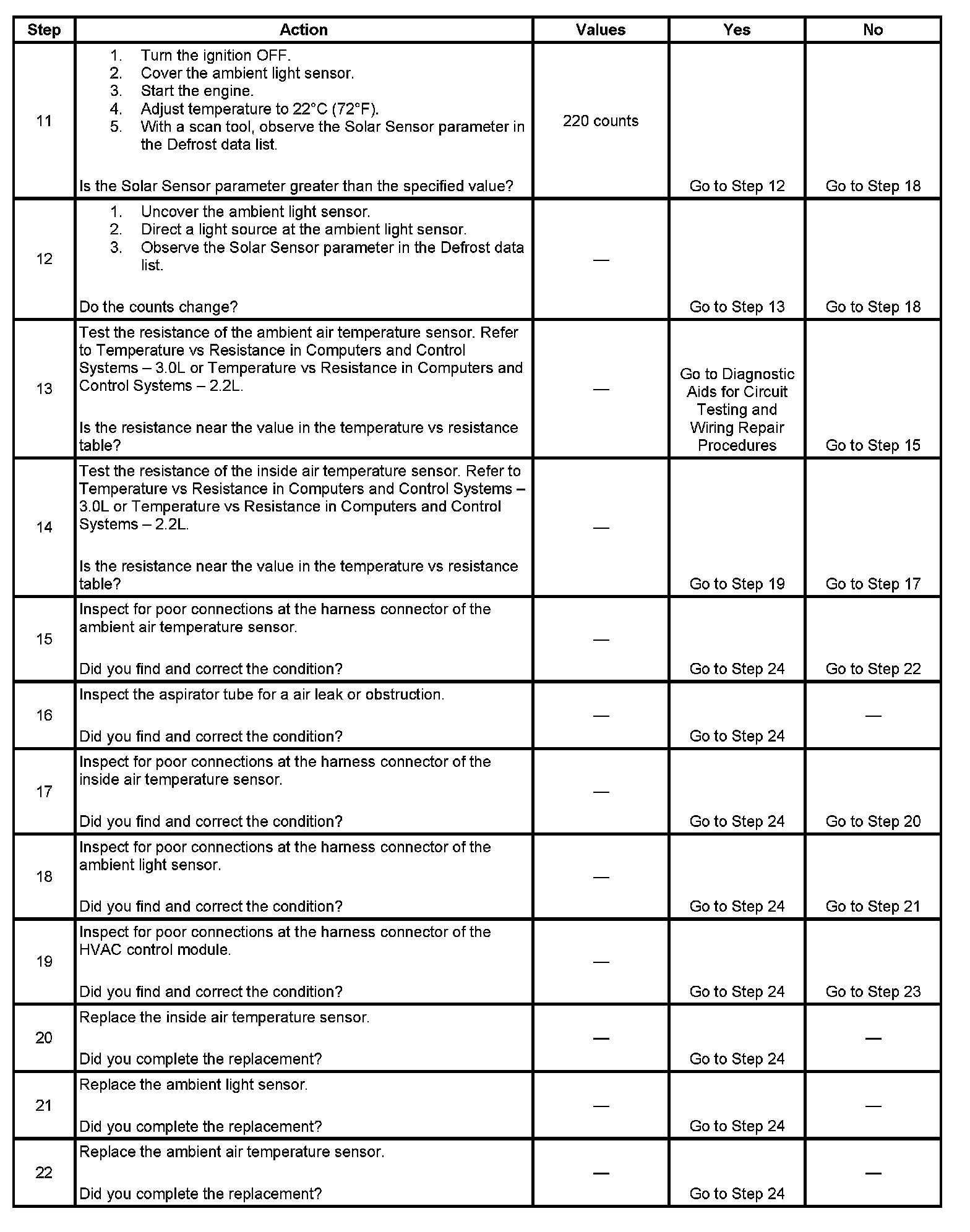

Steps 11-22:

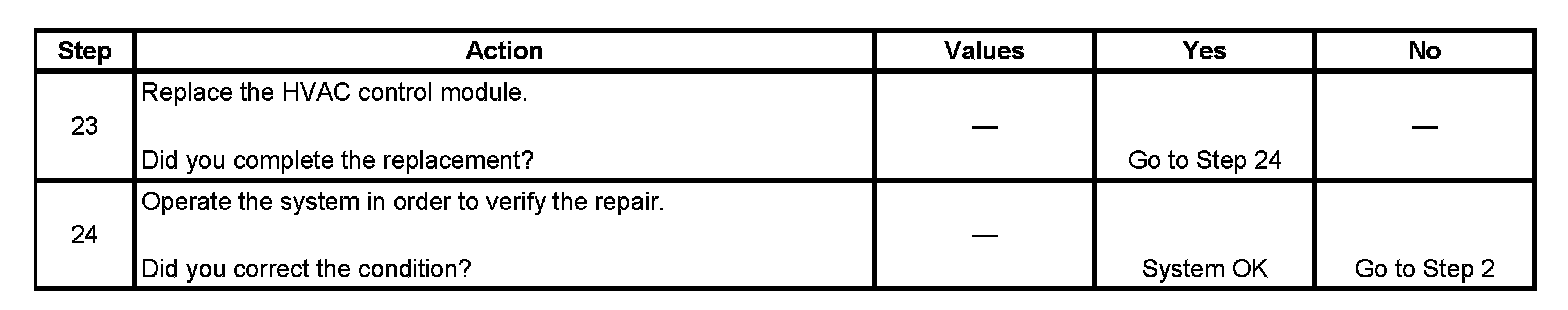

Steps 23-24:

The numbers below refer to the step numbers on the diagnostic table.
6. The ambient air temperature must be above 4°C (40°F) for this A/C compressor test.
7. The specified values are from the A/C System Performance Test.
