Home
>>
Saturn
>>
2004
>>
L Series V6-3.0L VIN R
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
A/C System Performance Test
>>
Specific System Condition
>>

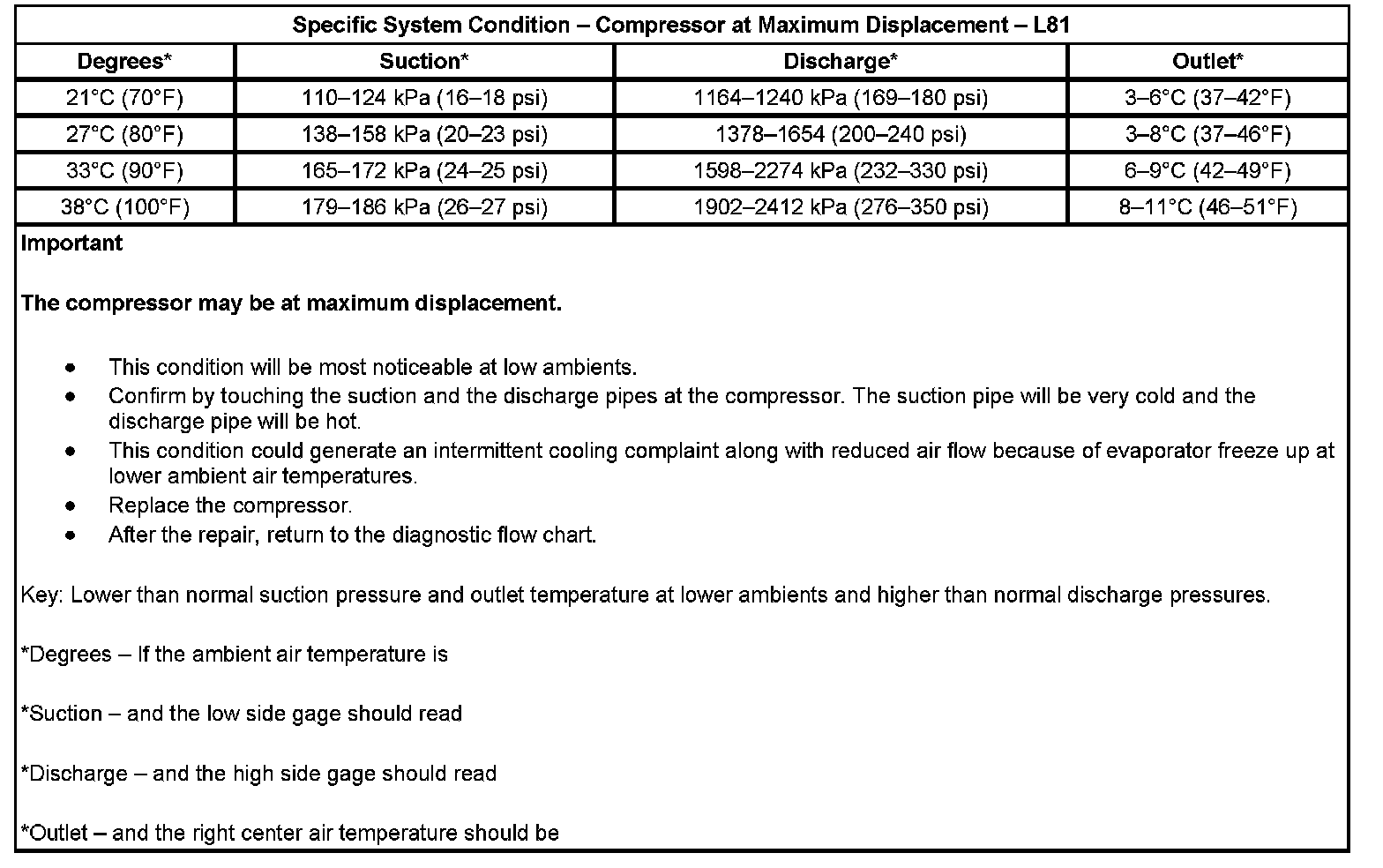

Specific System Condition - Compressor At Maximum Displacement
Specific System Condition - Compressor At Maximum Displacement
Specific System Condition - Compressor At Maximum Displacement:
