53. Water Pump Installation

Water Pump Installation





1. Coat the water pump seal ring with silicone grease.
2. Install the water pump seal.

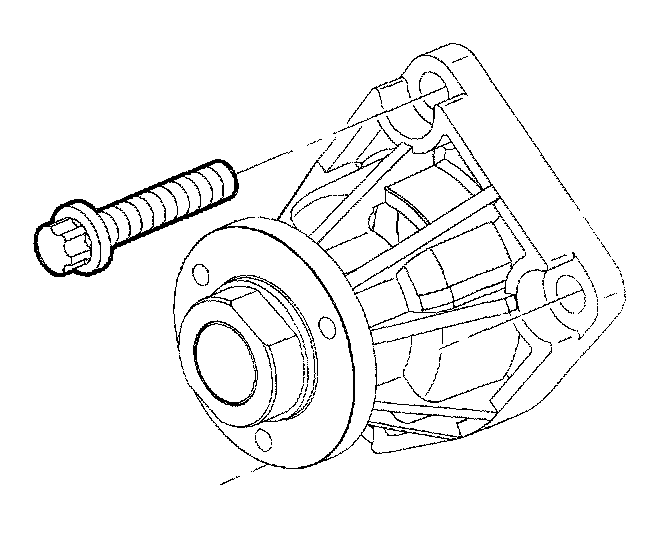

3. Install the water pump.
4. Apply thread sealant PST 565 to the bolt threads.

Notice: Refer to Fastener Notice in Service precautions.

5. Install the water pump bolts.
^ Tighten the water pump bolts to 25 Nm (18 ft. lbs.).
