30. Piston Selection

Piston Selection
Select the proper size piston for each cylinder bore after cylinder has been honed.
Measure the cylinder bore.

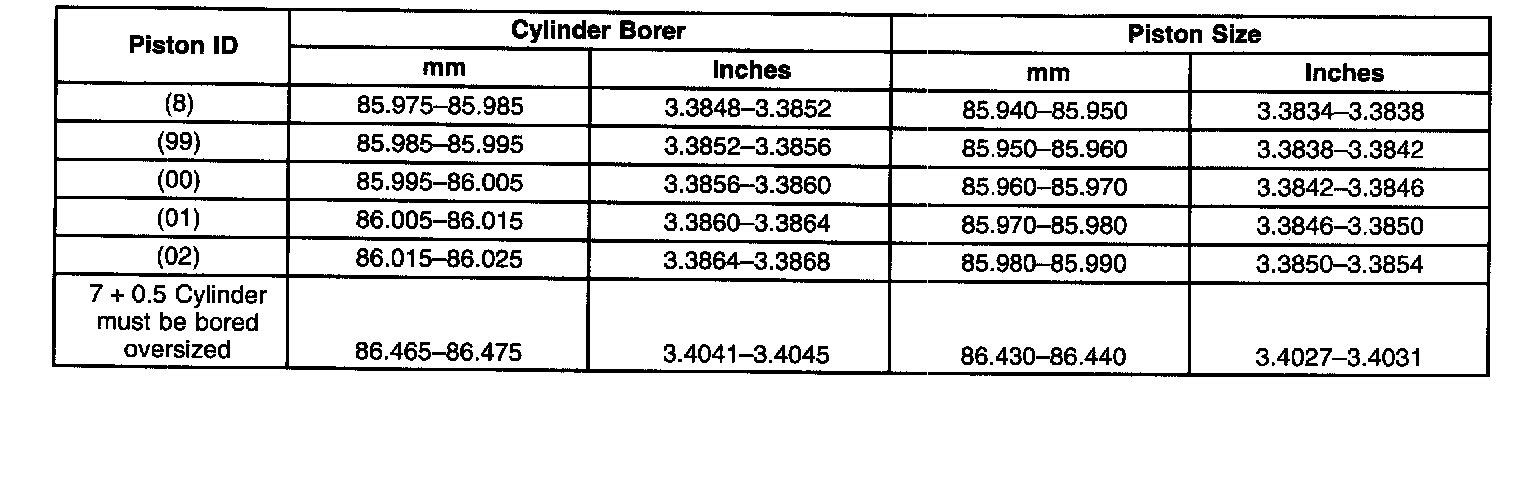

Piston Selection
