20. Cylinder Head Removal

Cylinder Head Removal

Important: Tap the TORX socket to fully seat into the bolt.

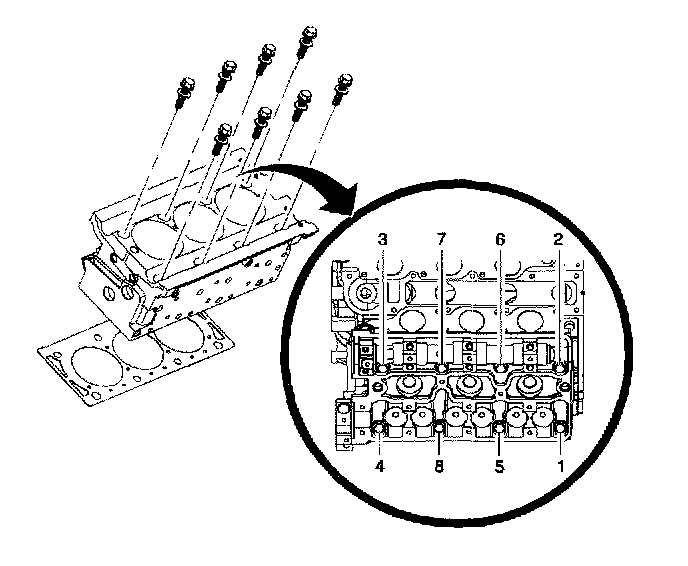

1. Remove the cylinder head bolts in the loosening sequence as shown.
2. Remove the cylinder heads.
3. Remove the cylinder head gaskets.
