Wiring Diagram Index

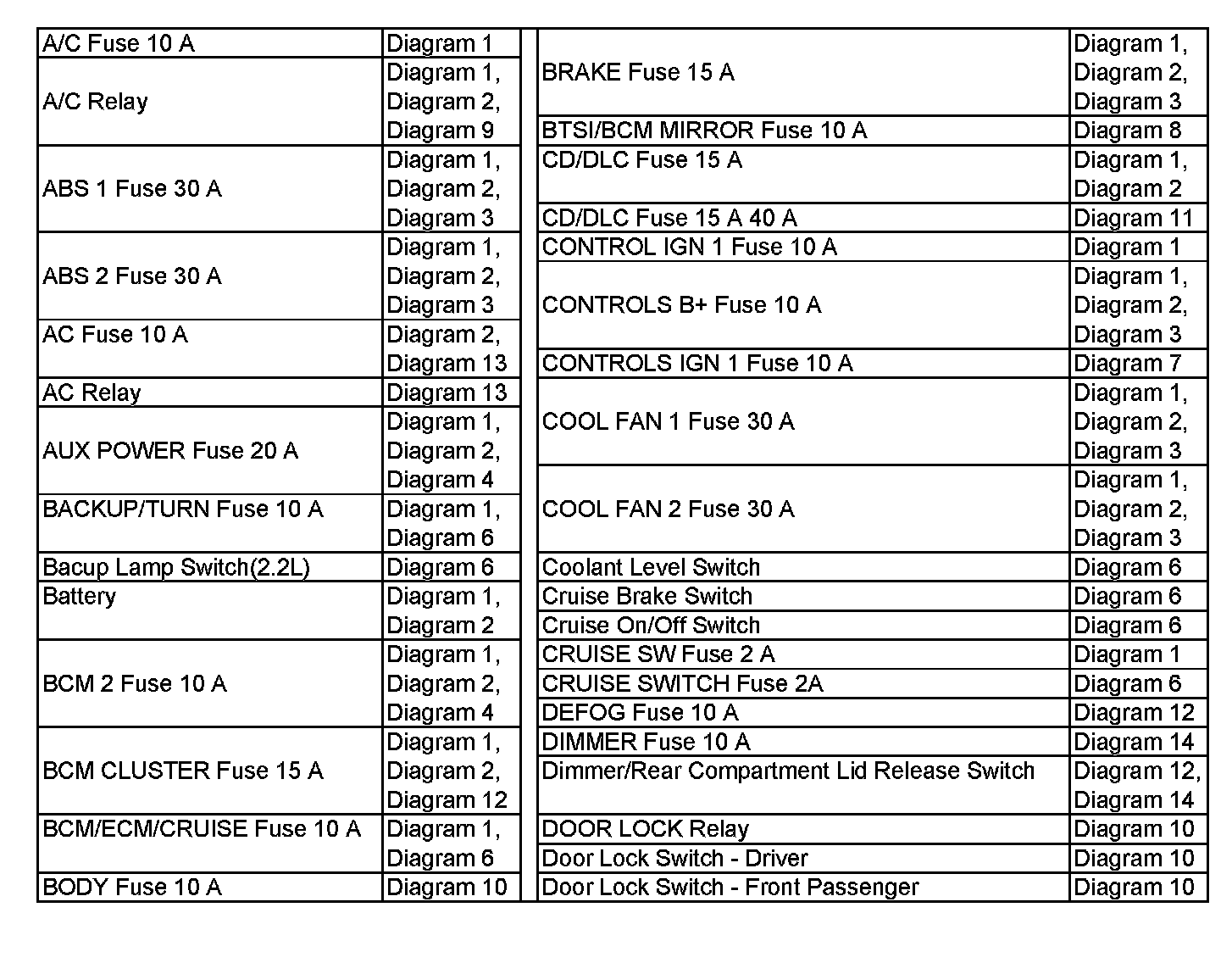

A/C Fuse - Door Lock Switch:

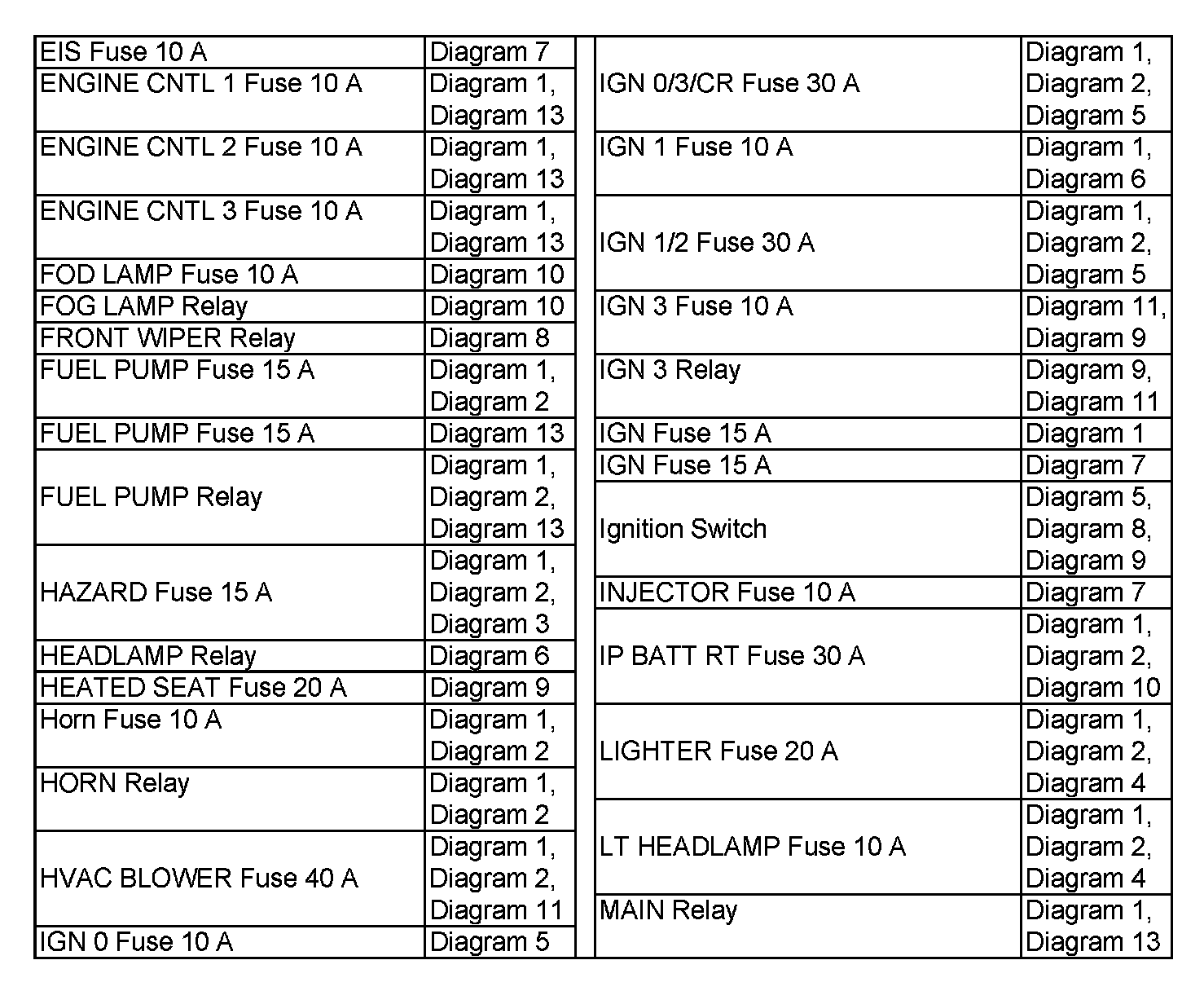

EIS Fuse - MAIN Relay:



MIRROR Relay - Wiper Fuse:
