Home >> Saturn >> 2004 >> L Series V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Connectors >> Connectors By Number >> C100 - C199 >> C103

C103

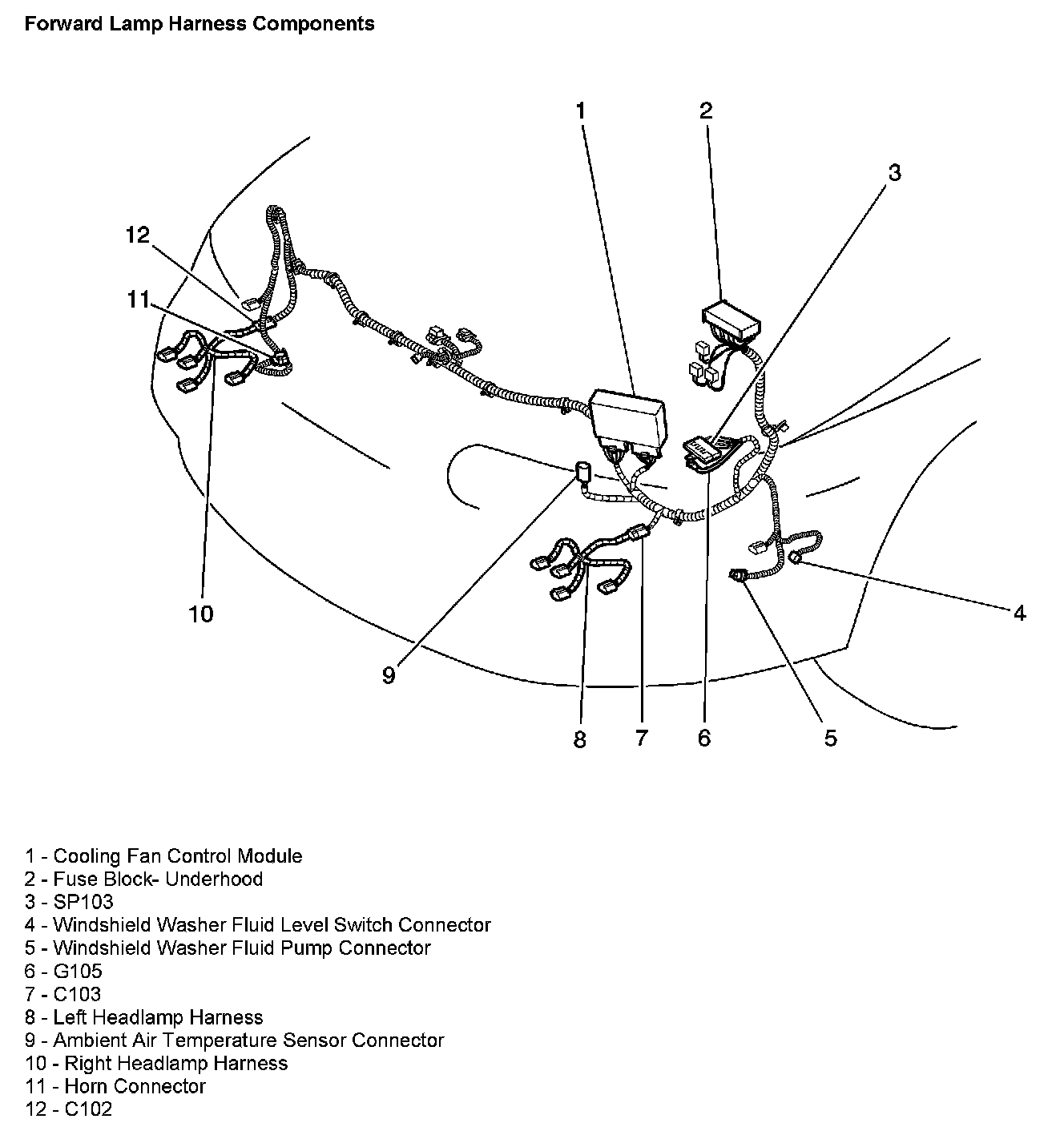

Forward Lamp Harness Components:
